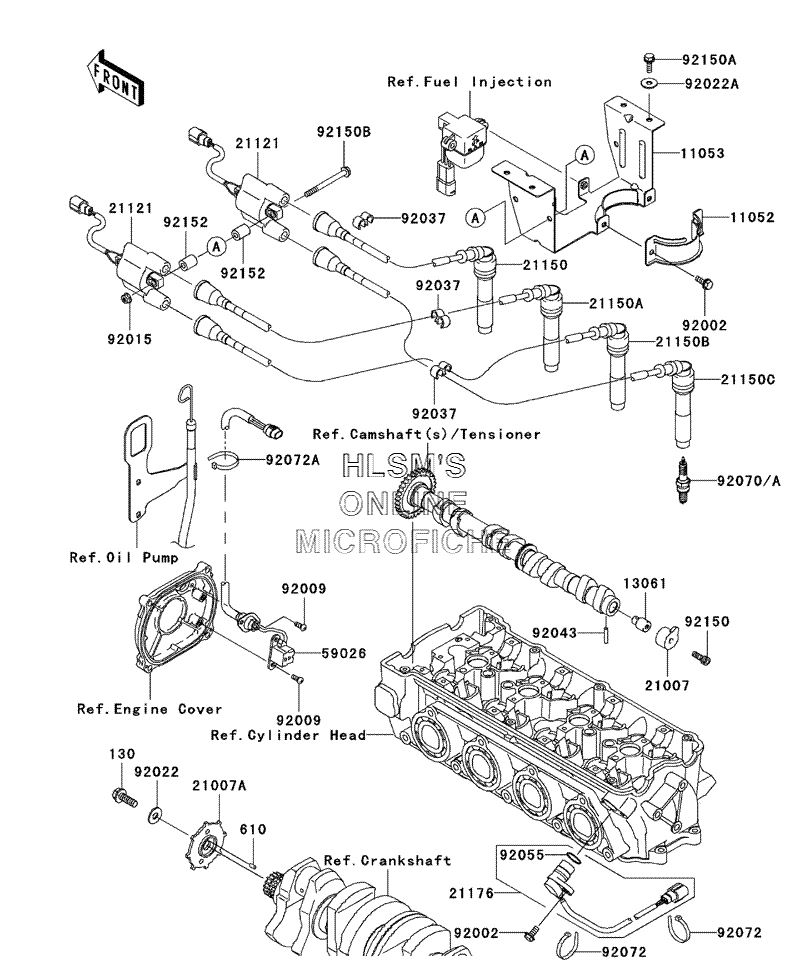

IGNITION SYSTEM для Kawasaki STX-15F (JT1500-A2) - 2005 года выпуска`
-
№АртикулНазвание
-
130130Z0825 BOLT, FLANGEDBOLT, FLANGED
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
1105211052-3762 BRACKET, FILTERBRACKET, FILTER
-
1105311053-3783 BRACKETBRACKET
-
1306113061-1687 BOSS, CAM SENSORBOSS, CAM SENSOR
-
2100721007-1356 ROTORROTOR
-
21007A21007-3730 ROTOR, PULSINGROTOR, PULSING
-
2112121121-3722 COIL, IGNITIONCOIL, IGNITION
-
2115021150-3707 CORD, ASSY., #1CORD, ASSY., #1
-
21150A21150-3708 CORD, ASSY., #2CORD, ASSY., #2
-
21150B21150-3709 CORD, ASSY., #3CORD, ASSY., #3
-
21150C21150-3710 CORD, ASSY., #4CORD, ASSY., #4
-
2117621176-1077 SENSORSENSOR
-
5902659026-3702 COIL, PULSINGCOIL, PULSING
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
9200992009-1296 SCREW, 5X12SCREW, 5X12
-
9201592015-3767 NUT, 6MMNUT, 6MM
-
9202292022-3026 WASHER, PLAINWASHER, PLAIN
-
92022A92022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9203792037-1603 CLAMP, HOSECLAMP, HOSE
-
9204392043-1575 PINPIN
-
9205592055-1639 O-RINGO-RING
-
9207092070-1264 PLUG, SPARK, CR9EK (NGK)PLUG, SPARK, CR9EK (NGK)
-
92070A92070-1265 PLUG, SPARK, CR8EK (NGK)PLUG, SPARK, CR8EK (NGK)
-
9207292072-3873 BAND, L=157BAND, L=157
-
92072A92072-3874 BANDBAND
-
9215092150-1645 BOLT, 6X18BOLT, 6X18
-
92150A92150-3729 BOLT, 6X18BOLT, 6X18
-
92150B92150-3753 BOLT, 6X70BOLT, 6X70
-
9215292152-3738 COLLARCOLLAR
