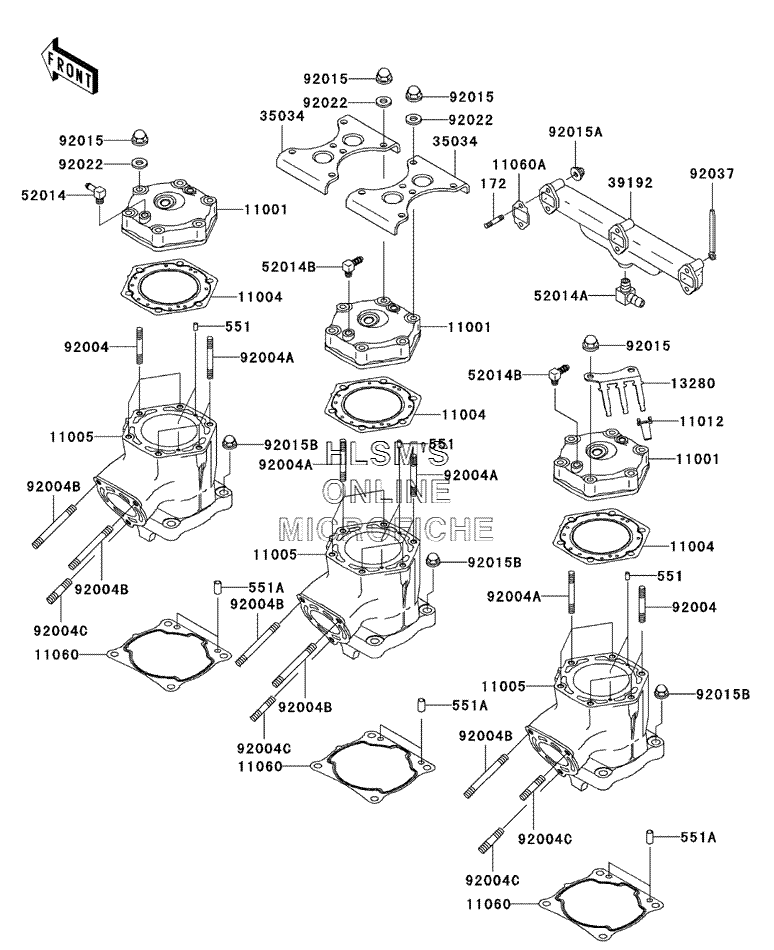

CYLINDER HEAD/CYLINDER для Kawasaki ULTRA 150 (JH1200-B1) - 2003 года выпуска`
-
№АртикулНазвание
-
172172R0635 BOLT, STUD, 6X35BOLT, STUD, 6X35
-
551551R0408 PIN, DOWELPIN, DOWEL
-
551A551R0812 PIN, DOWELPIN, DOWEL
-
1100111001-3741 HEAD, CYLINDERHEAD, CYLINDER
-
1100411004-3717 GASKET, HEADGASKET, HEAD
-
1100511005-3744 CYLINDER, ENGINECYLINDER, ENGINE
-
1101211012-3768 CAP, HOLDERCAP, HOLDER
-
1106011060-3783 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
11060A11060-3784 GASKET, WATER PIPEGASKET, WATER PIPE
-
1328013280-3720 HOLDERHOLDER
-
3503435034-3726 REINFORCEREINFORCE
-
3919239192-3701 PIPE, WATERPIPE, WATER
-
5201452014-3709 ELBOWELBOW
-
52014A52014-3711 ELBOWELBOW
-
52014B52014-3713 ELBOWELBOW
-
9200492004-3715 STUD, 8X43STUD, 8X43
-
92004A92004-3734 STUD, 8X53STUD, 8X53
-
92004B92004-3735 STUD, 8X97STUD, 8X97
-
92004C92004-3736 STUD, 8X40, L=56STUD, 8X40, L=56
-
9201592015-1371 NUT, CAP, 8MMNUT, CAP, 8MM
-
92015A92015-1385 NUT, CAP, 6MMNUT, CAP, 6MM
-
92015B92015-1649 NUT, 10MMNUT, 10MM
-
9202292022-1964 WASHER, 8.2X18X1.5WASHER, 8.2X18X1.5
-
9203792037-3736 CLAMP, L=100CLAMP, L=100
