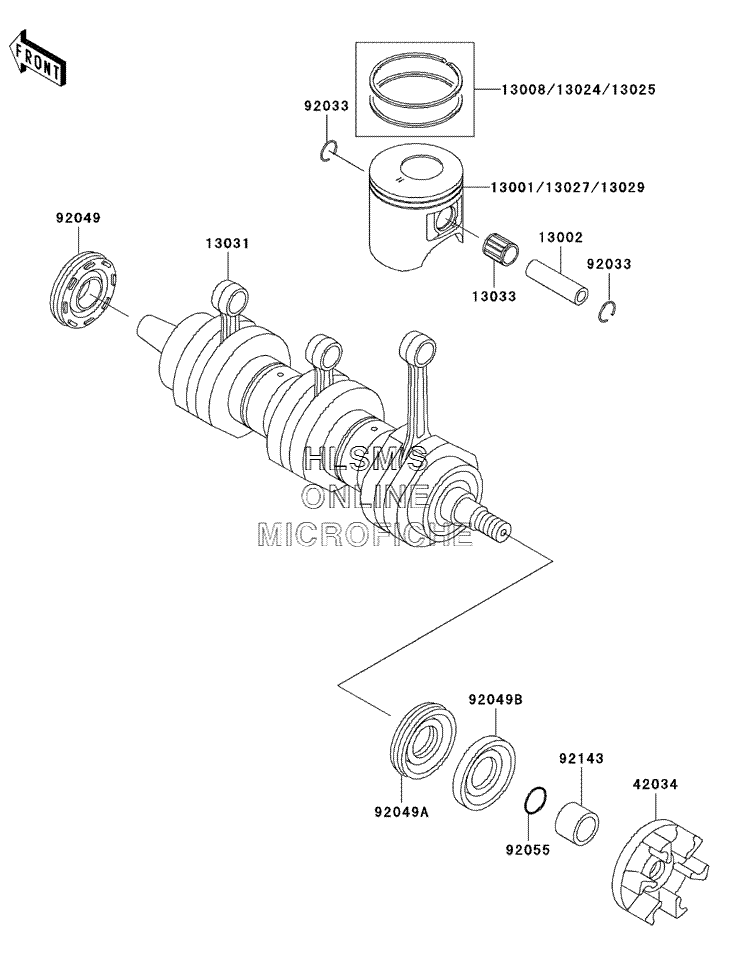

CRANKSHAFT/PISTON(S) для Kawasaki ULTRA 130 (JH1100-B3) - 2003 года выпуска

  • №
    Артикул
    Название
  • 13001
    13001-3734 PISTON, ENGINE (STD)
    PISTON, ENGINE (STD)
  • 13002
    13002-3708 PIN, PISTON
    PIN, PISTON
  • 13008
    13008-3708 RING, SET, PISTON (STD)
    RING, SET, PISTON (STD)
  • 13024
    13024-3706 RING, SET, PISTON (O/S 1.00)
    RING, SET, PISTON (O/S 1.00)
  • 13025
    13025-3706 RING, SET, PISTON (O/S 0.50)
    RING, SET, PISTON (O/S 0.50)
  • 13027
    13027-3717 PISTON, ENGINE (O/S 1.00)
    PISTON, ENGINE (O/S 1.00)
  • 13029
    13029-3717 PISTON, ENGINE (O/S 0.50)
    PISTON, ENGINE (O/S 0.50)
  • 13031
    13031-3731 CRANKSHAFT, COMP
    CRANKSHAFT, COMP
  • 13033
    13033-3703 BEARING, SMALL END
    BEARING, SMALL END
  • 42034
    42034-3709 COUPLING
    COUPLING
  • 92033
    92033-3721 RING, SNAP
    RING, SNAP
  • 92049
    92049-3713 SEAL, OIL, FWJ7307210ZS
    SEAL, OIL, FWJ7307210ZS
  • 92049A
    92049-3715 SEAL, OIL
    SEAL, OIL
  • 92049B
    92049-3716 SEAL, OIL
    SEAL, OIL
  • 92055
    92055-3740 O-RING, 20.8X2.4
    O-RING, 20.8X2.4
  • 92143
    92143-3745 COLLAR
    COLLAR
