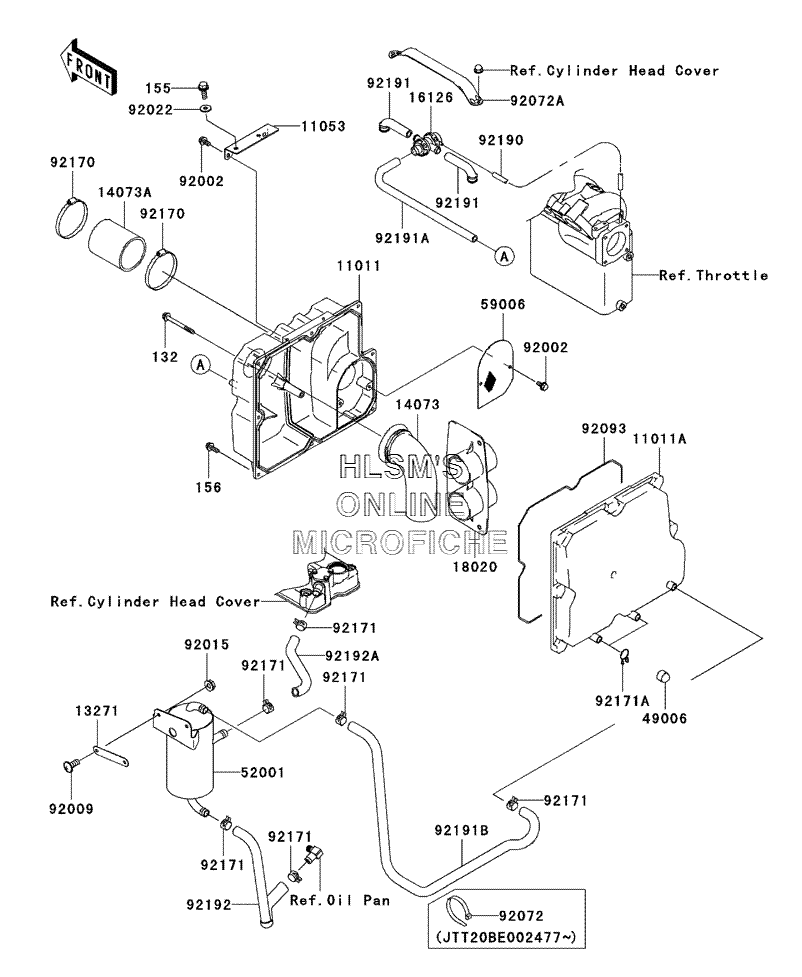

INTAKE SILENCER для Kawasaki STX-12F (JT1200-B1) - 2003 года выпуска`
-
№АртикулНазвание
-
132132Y0660 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
155155R0820 BOLT, WSP, SMALL, 8X20BOLT, WSP, SMALL, 8X20
-
156156R0616 BOLT, WP, 6X16BOLT, WP, 6X16
-
1101111011-3703 CASE, AIR FILTER, FRONTCASE, AIR FILTER, FRONT
-
11011A11011-3704 CASE, AIR FILTER, REARCASE, AIR FILTER, REAR
-
1105311053-3725 BRACKETBRACKET
-
1327113271-3880 PLATEPLATE
-
1407314073-3794 DUCT, AIR FILTER, ASVDUCT, AIR FILTER, ASV
-
14073A14073-3795 DUCT, AIR FILTER, THOROTTLEDUCT, AIR FILTER, THOROTTLE
-
1612616126-1433 VALVE, AIR SWITCHVALVE, AIR SWITCH
-
1802018020-3703 BAFFLEBAFFLE
-
4900649006-3718 BOOT, DRAINBOOT, DRAIN
-
5200152001-3736 TANK, OIL, SEPARETORTANK, OIL, SEPARETOR
-
5900659006-3719 ARRESTER, FLAMEARRESTER, FLAME
-
9200292002-3763 BOLT, 6X12BOLT, 6X12
-
9200992009-3870 SCREW, M6X20SCREW, M6X20
-
9201592015-3767 NUT, 6MMNUT, 6MM
-
9202292022-3743 WASHER, 8.2X18X1.5WASHER, 8.2X18X1.5
-
9207292072-3867 BAND, L=203.2 (SERIAL JTT20BE002477 AND ABOVE)BAND, L=203.2 (SERIAL JTT20BE002477 AND ABOVE)
-
92072A92072-3869 BANDBAND
-
9209392093-3766 SEALSEAL
-
9217092170-3764 CLAMPCLAMP
-
9217192171-3710 CLAMP, TUBECLAMP, TUBE
-
92171A92171-3711 CLAMP, BOOTCLAMP, BOOT
-
9219092190-1062 TUBE, 4X9X450TUBE, 4X9X450
-
9219192191-3959 TUBETUBE
-
92191A92191-3960 TUBE, ASV, AIR CASETUBE, ASV, AIR CASE
-
92191B92191-3998 TUBE, SEPARATOR, AIR CLEANERTUBE, SEPARATOR, AIR CLEANER
-
9219292192-3701 TUBE, SEPARTOR, OILPLANTUBE, SEPARTOR, OILPLAN
-
92192A92192-3719 TUBE, HEAD, SEPARATORTUBE, HEAD, SEPARATOR
