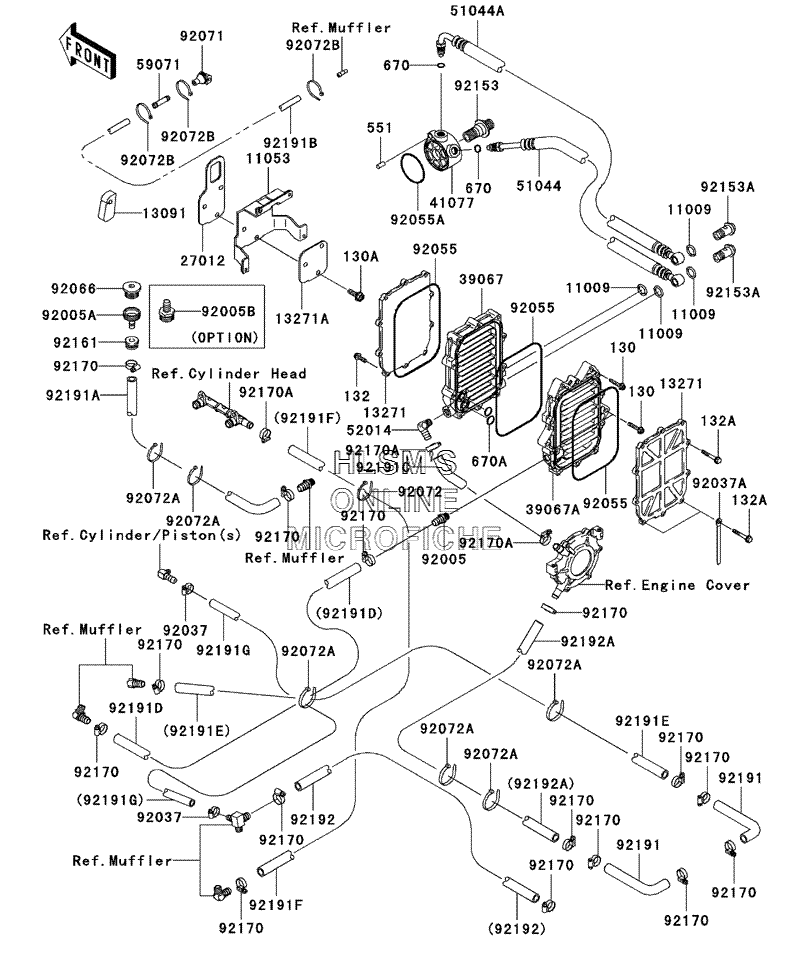

COOLING (SERIAL JTT20BE002476 AND BELOW) для Kawasaki STX-12F (JT1200-B1) - 2003 года выпуска`
-
№АртикулНазвание
-
130130Y0630 BOLT, FLANGEDBOLT, FLANGED
-
1100911009-1461 GASKET, 14X19.5X1.4GASKET, 14X19.5X1.4
-
1105311053-3758 BRACKET, OIL COOLERBRACKET, OIL COOLER
-
1309113091-3712 HOLDERHOLDER
-
1327113271-3866 PLATE, OIL COOLERPLATE, OIL COOLER
-
13271A13271-3896 PLATEPLATE
-
2701227012-3853 HOOKHOOK
-
3906739067-3702 COOLER, OIL, FRONTCOOLER, OIL, FRONT
-
39067A39067-3703 COOLER, OIL, REARCOOLER, OIL, REAR
-
4107741077-3702 ADAPTERADAPTER
-
5104451044-3703 TUBE, ASSY., RETURNTUBE, ASSY., RETURN
-
51044A51044-3704 TUBE, ASSY., FEEDTUBE, ASSY., FEED
-
5201452014-3711 ELBOWELBOW
-
5907159071-3764 JOINTJOINT
-
9200592005-3714 FITTINGFITTING
-
92005A92005-3744 FITTING, FLUSHFITTING, FLUSH
-
92005B92005-3746 FITTING, FLUSH (OPT)FITTING, FLUSH (OPT)
-
9203792037-3726 CLAMPCLAMP
-
92037A92037-3736 CLAMP, L=100CLAMP, L=100
-
9205592055-3766 O-RINGO-RING
-
92055A92055-3767 O-RING, 58X3O-RING, 58X3
-
9206692066-3784 PLUG, FLUSHPLUG, FLUSH
-
9207192071-3815 GROMMETGROMMET
-
9207292072-3768 BAND, L=148BAND, L=148
-
92072A92072-3867 BAND, L=203.2BAND, L=203.2
-
92072B92072-3871 BAND, L=99BAND, L=99
-
9215392153-3708 BOLTBOLT
-
92153A92153-3709 BOLT, 14X28.5BOLT, 14X28.5
-
9216192161-1331 DAMPERDAMPER
-
9217092170-3718 CLAMPCLAMP
-
92170A92170-3747 CLAMPCLAMP
-
9219192191-3785 TUBE, PUMP, HULLTUBE, PUMP, HULL
-
92191A92191-3850 TUBE, CHAMBER, TAIL PIPETUBE, CHAMBER, TAIL PIPE
-
92191B92191-3874 TUBE, 7X12X1590TUBE, 7X12X1590
-
92191C92191-3981 TUBE, 12X18X130TUBE, 12X18X130
-
92191D92191-3991 TUBE, 12X18X380TUBE, 12X18X380
-
92191E92191-3992 TUBE, 12X18X1070TUBE, 12X18X1070
-
92191F92191-3993 TUBE, 12X18X680TUBE, 12X18X680
-
92191G92191-3994 TUBE, 12X18X680TUBE, 12X18X680
-
9219292192-3703 TUBE, 12X18X720TUBE, 12X18X720
-
92192A92192-3707 TUBE, GENERATOR, HULLTUBE, GENERATOR, HULL
-
130A130Y0825 BOLT, FLANGEDBOLT, FLANGED
-
132132Y0620 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
132A132Y0640 BOLT, FLANGED, SMALLBOLT, FLANGED, SMALL
-
551551R0816 PIN, DOWELPIN, DOWEL
-
670670D1508 O-RING, 8MMO-RING, 8MM
-
670A670D2016 O-RING, 16MMO-RING, 16MM
