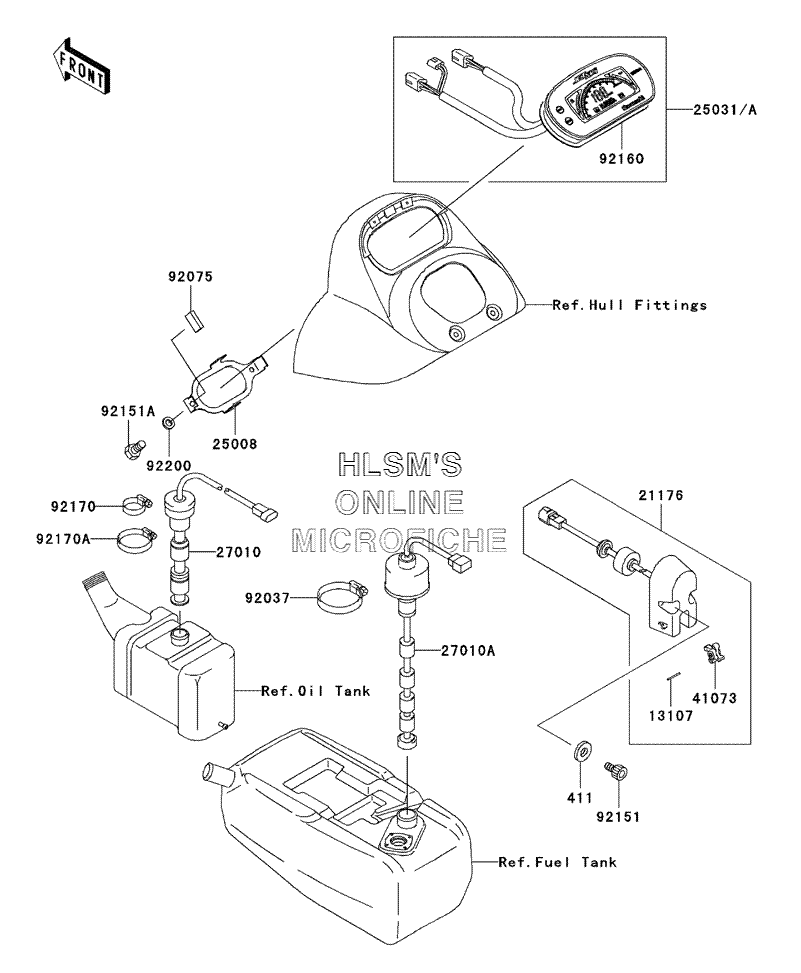

METERS для Kawasaki 900 STX (JT900-D1) - 2003 года выпуска`
-
№АртикулНазвание
-
411411S0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
1310713107-3754 SHAFTSHAFT
-
2117621176-3753-8U SENSOR, SPEEDOMETER (J.WHITE)SENSOR, SPEEDOMETER (J.WHITE)
-
2500825008-3709 BRACKET, METERBRACKET, METER
-
2503125031-3731 METER, ASSY., MILE (US ONLY)METER, ASSY., MILE (US ONLY)
-
25031A25031-3732 METER, ASSY., KM (CANADA ONLY)METER, ASSY., KM (CANADA ONLY)
-
2701027010-3753 SWITCH, OIL LEVELSWITCH, OIL LEVEL
-
27010A27010-3770 SWITCH, FUEL LEVELSWITCH, FUEL LEVEL
-
4107341073-3701 WHEEL, ASSY., PADDLEWHEEL, ASSY., PADDLE
-
9203792037-3009 CLAMPCLAMP
-
9207592075-1446 DAMPERDAMPER
-
9215192151-3704 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
92151A92151-3707 BOLT, 5X10BOLT, 5X10
-
9216092160-3881 DAMPER, METERDAMPER, METER
-
9217092170-3718 CLAMPCLAMP
-
92170A92170-3734 CLAMPCLAMP
-
9220092200-3714 WASHER, 5.9X16X1.5WASHER, 5.9X16X1.5
