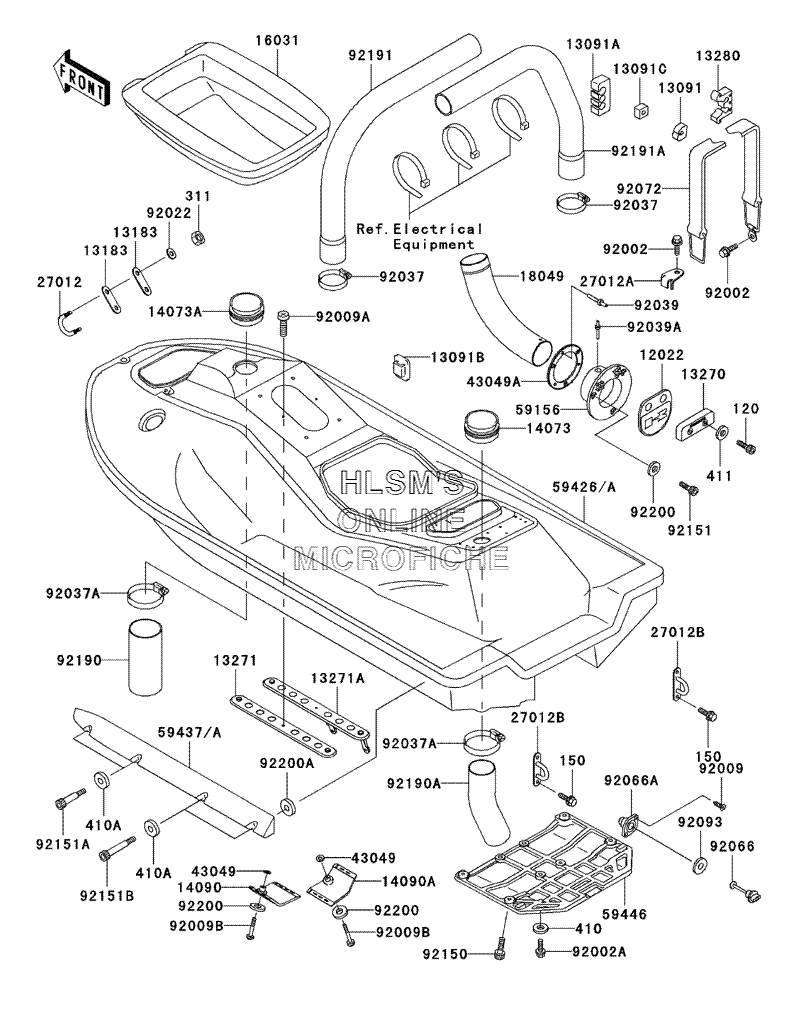

HULL для Kawasaki 1100 ZXI (JH1100-A8) - 2003 года выпуска
-
№АртикулНазвание
-
1202212022-3706 VALVE, REEDVALVE, REED
-
1309113091-3712 HOLDERHOLDER
-
13091A13091-3758 HOLDER, TUBEHOLDER, TUBE
-
13091B13091-3764 HOLDER, BANDHOLDER, BAND
-
13091C13091-3804 HOLDERHOLDER
-
1318313183-3809 PLATEPLATE
-
1327013270-3785 PLATEPLATE
-
1327113271-3803 PLATE, HANDLE POLE BRACKETPLATE, HANDLE POLE BRACKET
-
13271A13271-3805 PLATE, HANDLE POLE BRACKETPLATE, HANDLE POLE BRACKET
-
1328013280-3705 HOLDER, FUEL FILTERHOLDER, FUEL FILTER
-
1407314073-3750 DUCT, AIR INTAKEDUCT, AIR INTAKE
-
14073A14073-3762 DUCT, AIR INTAKEDUCT, AIR INTAKE
-
1409014090-3787 COVER, RAM (LEFT)COVER, RAM (LEFT)
-
14090A14090-3788 COVER, RAM (RIGHT)COVER, RAM (RIGHT)
-
1603116031-3901 FLOAT, TANKFLOAT, TANK
-
1804918049-3755 PIPE, EXHAUSTPIPE, EXHAUST
-
2701227012-3776 HOOKHOOK
-
27012A27012-3777 HOOK, WATER MUFFLERHOOK, WATER MUFFLER
-
27012B27012-3782 HOOK, REARHOOK, REAR
-
4304943049-3710 PACKINGPACKING
-
43049A43049-3711 PACKINGPACKING
-
5915659156-3714 PIPE, TAILPIPE, TAIL
-
59426A59426-3887-8C HULL, COMP (J.WHITE)HULL, COMP (J.WHITE)
-
5943759437-3711-6Z STABILIZER (LEFT) (F.BLACK)STABILIZER (LEFT) (F.BLACK)
-
59437A59437-3712-6Z STABILIZER (RIGHT) (F.BLACK)STABILIZER (RIGHT) (F.BLACK)
-
5944659446-3745 COVER, JET PUMPCOVER, JET PUMP
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
92002A92002-3755 BOLT, 6X20BOLT, 6X20
-
9200992009-3755 SCREW, TAPPING, 4X14SCREW, TAPPING, 4X14
-
92009A92009-3789 SCREW, 5X16SCREW, 5X16
-
92009B92009-3831 SCREW, 5X35SCREW, 5X35
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9203792037-3009 CLAMPCLAMP
-
92037A92037-541 CLAMPCLAMP
-
9203992039-3703 RIVET, 4MMRIVET, 4MM
-
92039A92039-3719 RIVET, 4.8MMRIVET, 4.8MM
-
9206692066-3744 PLUG, REAR, DRAINPLUG, REAR, DRAIN
-
92066A92066-3749 PLUG, DRAINPLUG, DRAIN
-
9207292072-3781 BAND, WATER MUFFLERBAND, WATER MUFFLER
-
120120R0616 BOLT, SOCKETBOLT, SOCKET
-
150150R0618 BOLT, WS, 6X18BOLT, WS, 6X18
-
311311R0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
410A410S0800 WASHER, PLAIN, SMALL, 8MMWASHER, PLAIN, SMALL, 8MM
-
411411S0600 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
9209392093-3720 SEALSEAL
-
9215092150-3775 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9215192151-3709 BOLT, SOCKET, 5X25BOLT, SOCKET, 5X25
-
92151A92151-3719 BOLT, SOCKET, 6X40BOLT, SOCKET, 6X40
-
92151B92151-3720 BOLT, SOCKET, 6X52BOLT, SOCKET, 6X52
-
9219092190-3962 TUBETUBE
-
92190A92190-3963 TUBETUBE
-
9219192191-3775 TUBE (LEFT)TUBE (LEFT)
-
92191A92191-3797 TUBE (RIGHT)TUBE (RIGHT)
-
9220092200-3748 WASHER, WD5X12X1.8WASHER, WD5X12X1.8
-
92200A92200-3754 WASHER, 6X16X3WASHER, 6X16X3
