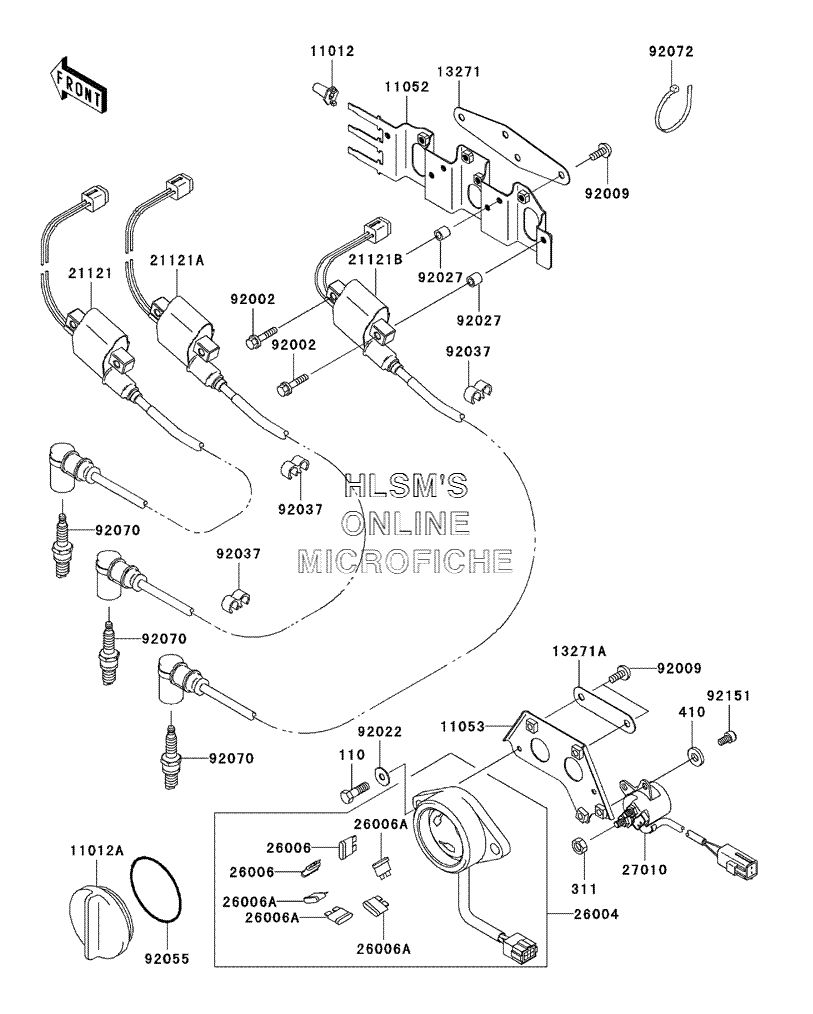

IGNITION SYSTEM для Kawasaki ULTRA 130 (JH1100-B2) - 2002 года выпуска`
-
№АртикулНазвание
-
110110R0620 BOLT, 6X20BOLT, 6X20
-
311311R0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
1101211012-3768 CAP, HOLDERCAP, HOLDER
-
11012A11012-3791 CAPCAP
-
1105211052-3754 BRACKET, COILBRACKET, COIL
-
1105311053-3726 BRACKET, FUSEBRACKET, FUSE
-
1327113271-3820 PLATEPLATE
-
13271A13271-3821 PLATEPLATE
-
2112121121-3719 COIL, IGNITION, #1 (BLACK)COIL, IGNITION, #1 (BLACK)
-
21121A21121-3720 COIL, IGNITION, #2 (GREEN)COIL, IGNITION, #2 (GREEN)
-
21121B21121-3721 COIL, IGNITION, #3 (WHITE)COIL, IGNITION, #3 (WHITE)
-
2600426004-3725 FUSE, ASSY.FUSE, ASSY.
-
2600626006-1007 FUSE, 10A, RFUSE, 10A, R
-
26006A26006-1051 FUSE, 20A, YFUSE, 20A, Y
-
2701027010-3774 SWITCHSWITCH
-
9200292002-3715 BOLT, 6X35BOLT, 6X35
-
9200992009-3830 SCREW, 6X15SCREW, 6X15
-
9202292022-567 WASHERWASHER
-
9202792027-3705 COLLAR, 6.2X10X10COLLAR, 6.2X10X10
-
9203792037-1603 CLAMP, HOSECLAMP, HOSE
-
9205592055-1292 O-RINGO-RING
-
9207092070-3705 PLUG, SPARK, PZFR7G, G (NGK) SOLIDPLUG, SPARK, PZFR7G, G (NGK) SOLID
-
9207292072-3778 BAND, L=201BAND, L=201
-
9215192151-3724 BOLT, 6X12BOLT, 6X12
