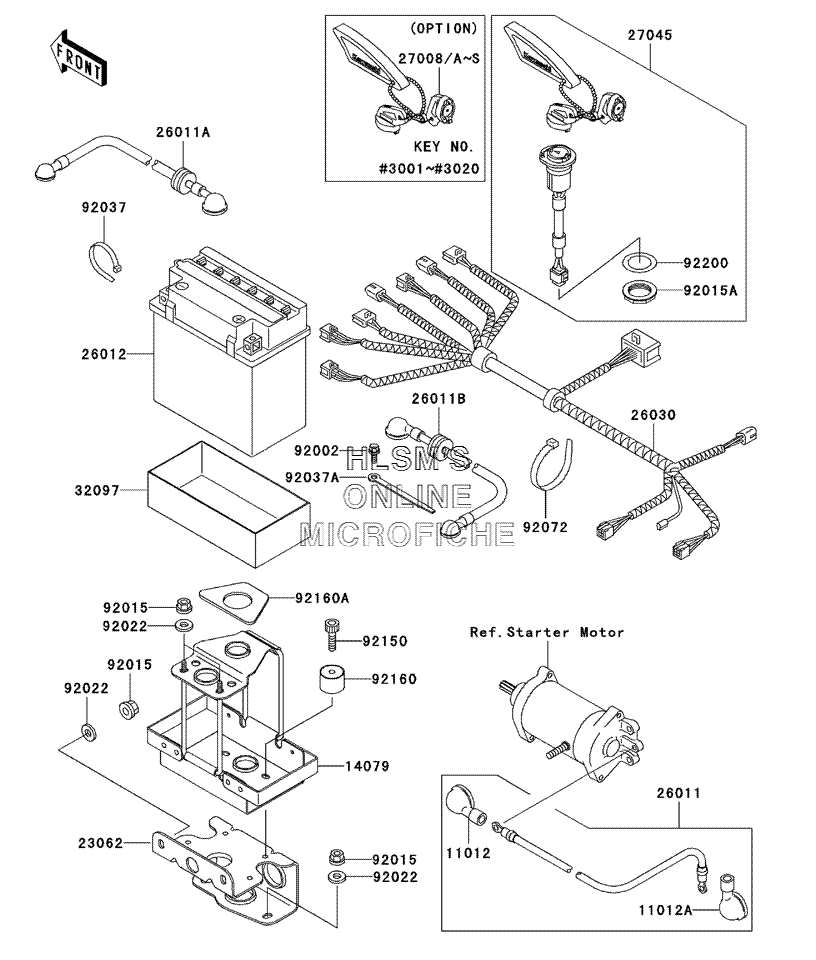

ELECTRICAL EQUIPMENT для Kawasaki 900 STS (JT900-B4) - 2002 года выпуска

  • №
    Артикул
    Название
  • 11012
    11012-3004 CAP
    CAP
  • 11012A
    11012-3726 CAP, LEAD WIRE
    CAP, LEAD WIRE
  • 14079
    14079-3715 HOLDER, ASSY., BATTERY MOUNT
    HOLDER, ASSY., BATTERY MOUNT
  • 23062
    23062-3720 BRACKET, COMP, BATTERY MOUNT
    BRACKET, COMP, BATTERY MOUNT
  • 26011
    26011-3797 WIRE, LEAD, RELAY, STARTER
    WIRE, LEAD, RELAY, STARTER
  • 26011A
    26011-3850 WIRE, LEAD, BATTERY (-) STARTER
    WIRE, LEAD, BATTERY (-) STARTER
  • 26011B
    26011-3851 WIRE, LEAD, BATTERY (+) RELAY
    WIRE, LEAD, BATTERY (+) RELAY
  • 26012
    26012-3728 BATTERY, YTX20L, BS, 12V 18AH
    BATTERY, YTX20L, BS, 12V 18AH
  • 26030
    26030-3741 HARNESS, MAIN
    HARNESS, MAIN
  • 27008
    27008-3745 KEY, LOCK, MAGNETIC SW, #3001 (OPT)
    KEY, LOCK, MAGNETIC SW, #3001 (OPT)
  • 27008A
    27008-3746 KEY, LOCK, MAGNETIC SW, #3002 (OPT)
    KEY, LOCK, MAGNETIC SW, #3002 (OPT)
  • 27008B
    27008-3747 KEY, LOCK, MAGNETIC SW, #3003 (OPT)
    KEY, LOCK, MAGNETIC SW, #3003 (OPT)
  • 27008C
    27008-3748 KEY, LOCK, MAGNETIC SW, #3004 (OPT)
    KEY, LOCK, MAGNETIC SW, #3004 (OPT)
  • 27008D
    27008-3749 KEY, LOCK, MAGNETIC SW, #3005 (OPT)
    KEY, LOCK, MAGNETIC SW, #3005 (OPT)
  • 27008E
    27008-3750 KEY, LOCK, MAGNETIC SW, #3006 (OPT)
    KEY, LOCK, MAGNETIC SW, #3006 (OPT)
  • 27008F
    27008-3751 KEY, LOCK, MAGNETIC SW, #3007 (OPT)
    KEY, LOCK, MAGNETIC SW, #3007 (OPT)
  • 27008G
    27008-3752 KEY, LOCK, MAGNETIC SW, #3008 (OPT)
    KEY, LOCK, MAGNETIC SW, #3008 (OPT)
  • 27008H
    27008-3753 KEY, LOCK, MAGNETIC SW, #3009 (OPT)
    KEY, LOCK, MAGNETIC SW, #3009 (OPT)
  • 27008I
    27008-3754 KEY, LOCK, MAGNETIC SW, #3010 (OPT)
    KEY, LOCK, MAGNETIC SW, #3010 (OPT)
  • 27008J
    27008-3755 KEY, LOCK, MAGNETIC SW, #3011 (OPT)
    KEY, LOCK, MAGNETIC SW, #3011 (OPT)
  • 27008K
    27008-3756 KEY, LOCK, MAGNETIC SW, #3012 (OPT)
    KEY, LOCK, MAGNETIC SW, #3012 (OPT)
  • 27008L
    27008-3757 KEY, LOCK, MAGNETIC SW, #3013 (OPT)
    KEY, LOCK, MAGNETIC SW, #3013 (OPT)
  • 27008M
    27008-3758 KEY, LOCK, MAGNETIC SW, #3014 (OPT)
    KEY, LOCK, MAGNETIC SW, #3014 (OPT)
  • 27008N
    27008-3759 KEY, LOCK, MAGNETIC SW, #3015 (OPT)
    KEY, LOCK, MAGNETIC SW, #3015 (OPT)
  • 27008O
    27008-3760 KEY, LOCK, MAGNETIC SW, #3016 (OPT)
    KEY, LOCK, MAGNETIC SW, #3016 (OPT)
  • 27008P
    27008-3761 KEY, LOCK, MAGNETIC SW, #3017 (OPT)
    KEY, LOCK, MAGNETIC SW, #3017 (OPT)
  • 27008Q
    27008-3762 KEY, LOCK, MAGNETIC SW, #3018 (OPT)
    KEY, LOCK, MAGNETIC SW, #3018 (OPT)
  • 27008R
    27008-3763 KEY, LOCK, MAGNETIC SW, #3019 (OPT)
    KEY, LOCK, MAGNETIC SW, #3019 (OPT)
  • 27008S
    27008-3764 KEY, LOCK, MAGNETIC SW, #3020 (OPT)
    KEY, LOCK, MAGNETIC SW, #3020 (OPT)
  • 27045
    27045-3716 SWITCH, ASSY., MAIN
    SWITCH, ASSY., MAIN
  • 32097
    32097-1034 CASE, BATTERY, BOTTOM
    CASE, BATTERY, BOTTOM
  • 92002
    92002-3728 BOLT, 6X16
    BOLT, 6X16
  • 92015
    92015-3767 NUT, 6MM
    NUT, 6MM
  • 92015A
    92015-3848 NUT
    NUT
  • 92022
    92022-3710 WASHER, 6.5X20X1.5
    WASHER, 6.5X20X1.5
  • 92037
    92037-1173 CLAMP
    CLAMP
  • 92037A
    92037-3736 CLAMP, L=100
    CLAMP, L=100
  • 92072
    92072-3778 BAND, L=201
    BAND, L=201
  • 92150
    92150-3775 BOLT, SOCKET, 6X18
    BOLT, SOCKET, 6X18
  • 92160
    92160-3738 DAMPER
    DAMPER
  • 92160A
    92160-3909 DAMPER, BATTERY
    DAMPER, BATTERY
  • 92200
    92200-3736 WASHER
    WASHER
