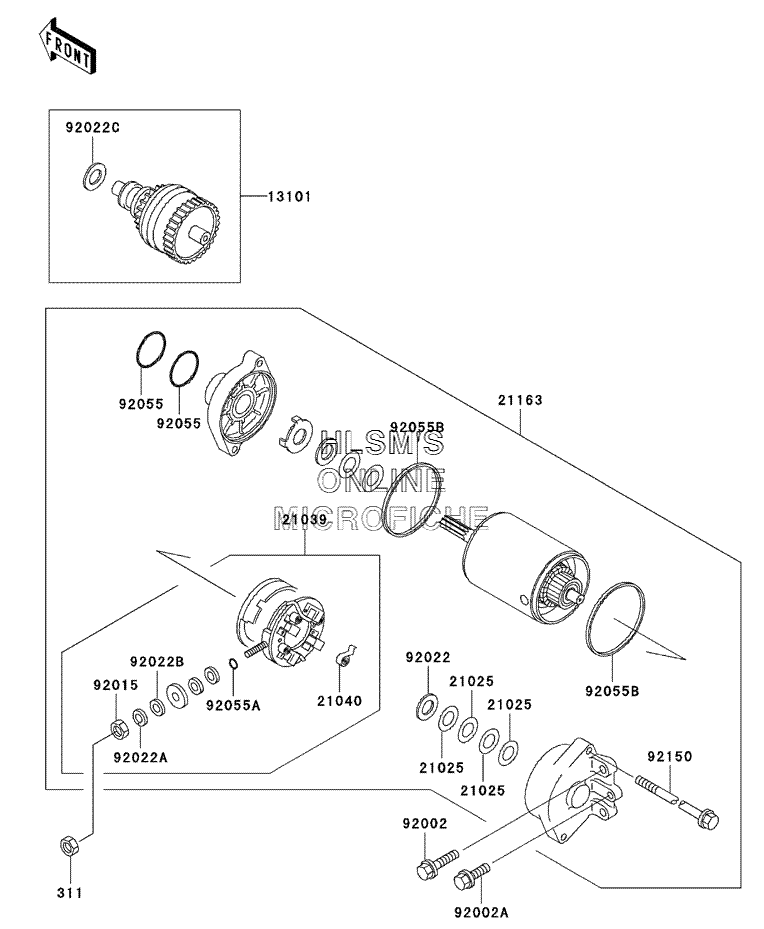

STARTER MOTOR для Kawasaki ULTRA 130 (JH1100-B1) - 2001 года выпуска`
-
№АртикулНазвание
-
311311R0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
1310113101-3708 GEAR, ASSY.GEAR, ASSY.
-
2102521025-011 WASHER, 9.1X18X0.2WASHER, 9.1X18X0.2
-
2103921039-3703 BRUSH, CARBONBRUSH, CARBON
-
2104021040-1055 SPRING, BRUSHSPRING, BRUSH
-
2116321163-3714 STARTER, ELECTRICSTARTER, ELECTRIC
-
9200292002-3714 BOLT, 6X25BOLT, 6X25
-
92002A92002-3763 BOLT, 6X12BOLT, 6X12
-
9201592015-3710 NUT, 6MMNUT, 6MM
-
9202292022-1132 WASHER, 9.1X18X0.8WASHER, 9.1X18X0.8
-
92022A92022-3711 WASHER, 6MMWASHER, 6MM
-
92022B92022-3713 WASHER, 6MMWASHER, 6MM
-
92022C92022-3731 WASHER, 12X24X1.0WASHER, 12X24X1.0
-
9205592055-1276 O-RINGO-RING
-
92055A92055-1370 O-RING, 4.5X2.0O-RING, 4.5X2.0
-
92055B92055-1381 O-RING, STARTER MOTORO-RING, STARTER MOTOR
-
9215092150-3772 BOLTBOLT
