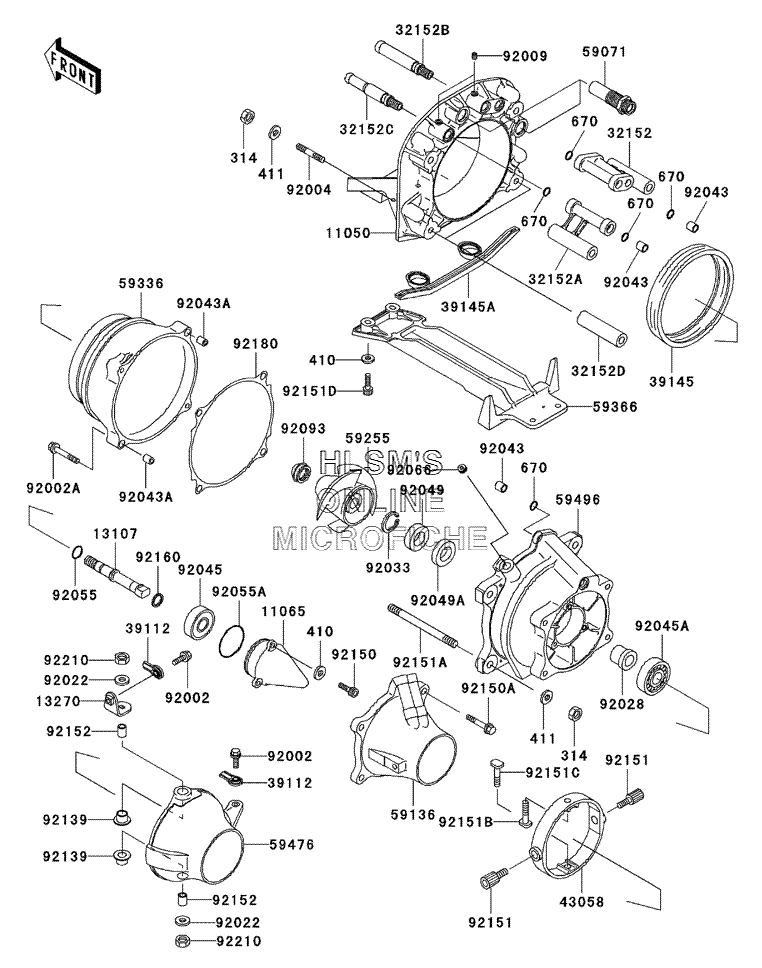

JET PUMP для Kawasaki ULTRA 150 (JH1200-A2) - 2000 года выпуска`
-
№АртикулНазвание
-
1105011050-3758 BRACKETBRACKET
-
1106511065-3705 CAPCAP
-
1310713107-3773 SHAFTSHAFT
-
1327013270-3905 PLATEPLATE
-
3215232152-3742 PIPEPIPE
-
32152A32152-3743 PIPEPIPE
-
32152B32152-3744 PIPEPIPE
-
32152C32152-3745 PIPEPIPE
-
32152D32152-3751 PIPEPIPE
-
3911239112-3703 RODEND, TIERODEND, TIE
-
3914539145-3758 TRIM, SEALTRIM, SEAL
-
39145A39145-3766 TRIM, SEALTRIM, SEAL
-
4305843058-3731 RING, TILTRING, TILT
-
5907159071-3760 JOINT, CABLEJOINT, CABLE
-
5913659136-3742 NOZZLE, PUMPNOZZLE, PUMP
-
5925559255-3715 IMPELLER, COMPIMPELLER, COMP
-
5933659336-3713 CASE, PUMPCASE, PUMP
-
5936659366-3718 GRATEGRATE
-
5947659476-3738 NOZZLE, STEERINGNOZZLE, STEERING
-
5949659496-3735 VANE, GUIDEVANE, GUIDE
-
9200292002-3714 BOLT, 6X25BOLT, 6X25
-
92002A92002-3716 BOLT, 6X40BOLT, 6X40
-
9200492004-3732 STUD, 10X35STUD, 10X35
-
9200992009-3780 SCREWSCREW
-
9202292022-3026 WASHER, PLAINWASHER, PLAIN
-
9202892028-3773 BUSHINGBUSHING
-
9203392033-3730 RING, SNAPRING, SNAP
-
9204392043-3745 PIN, 12X12PIN, 12X12
-
92043A92043-3747 PIN, 10X12PIN, 10X12
-
9204592045-3721 BEARING, BALL, 62022RDBEARING, BALL, 62022RD
-
92045A92045-3730 BEARING, BALLBEARING, BALL
-
9204992049-3726 SEAL, OIL, HVAJ25X45X7SEAL, OIL, HVAJ25X45X7
-
92049A92049-3727 SEAL, OIL, SCJ25X45X7SEAL, OIL, SCJ25X45X7
-
9205592055-1011 O-RING, OIL FILTERO-RING, OIL FILTER
-
92055A92055-1520 O-RING, 52.6X2.4O-RING, 52.6X2.4
-
9206692066-3765 PLUG, PT1/4X8.9PLUG, PT1/4X8.9
-
9209392093-3749 SEALSEAL
-
9213992139-3701 BUSHINGBUSHING
-
9215092150-3775 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92150A92150-3792 BOLT, 8X35BOLT, 8X35
-
314314R1000 NUT, HEX, FINE, 10MMNUT, HEX, FINE, 10MM
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
411411S1000 WASHER, PLAIN, 10MMWASHER, PLAIN, 10MM
-
670670B2012 O-RING, 12MMO-RING, 12MM
-
9215192151-3705 BOLTBOLT
-
92151A92151-3733 BOLT, 10X110BOLT, 10X110
-
92151B92151-3735 BOLT, 8MMBOLT, 8MM
-
92151C92151-3752 BOLT, 8X32BOLT, 8X32
-
92151D92151-3774 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
9215292152-3703 COLLAR, 8.2X11.8X15COLLAR, 8.2X11.8X15
-
9216092160-3932 DAMPERDAMPER
-
9218092180-3705 SHIM, T=0.5SHIM, T=0.5
-
9221092210-3742 NUT, LOCK, 8MMNUT, LOCK, 8MM
