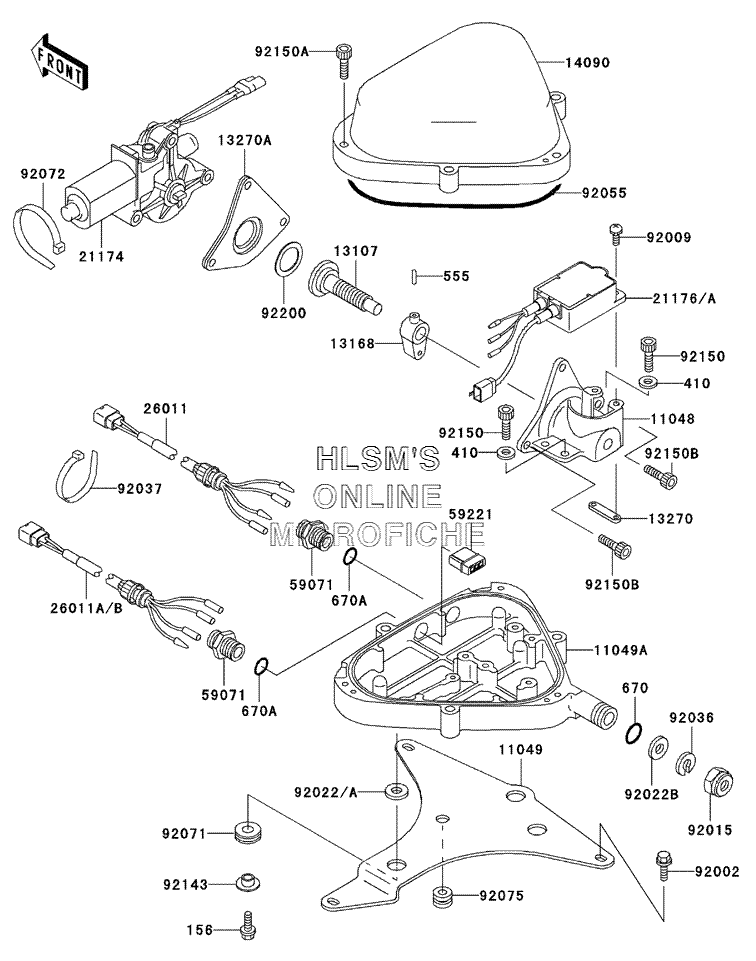

CONTROL для Kawasaki 1100 ZXI (JH1100-A5) - 2000 года выпуска`
-
№АртикулНазвание
-
156156R0622 BOLT, WP, 6X22BOLT, WP, 6X22
-
410410S0600 WASHER, PLAIN, SMALL, 6MMWASHER, PLAIN, SMALL, 6MM
-
555555B0314 PIN, SPRING, 3X14PIN, SPRING, 3X14
-
670670B2011 O-RING, 11MMO-RING, 11MM
-
670A670B2016 O-RING, 16MMO-RING, 16MM
-
1104811048-3738 BRACKET, MOTOR MOUNTBRACKET, MOTOR MOUNT
-
1104911049-3712 BRACKET, TILT BOXBRACKET, TILT BOX
-
11049A11049-3715 BRACKET, MOTOR BOX, LOWERBRACKET, MOTOR BOX, LOWER
-
1310713107-3748 SHAFTSHAFT
-
1316813168-3730 LEVER, SLIDELEVER, SLIDE
-
1327013270-3744 PLATE, TRIM SENSORPLATE, TRIM SENSOR
-
13270A13270-3822 PLATE, MOTOR MOUNTPLATE, MOTOR MOUNT
-
1409014090-3768 COVER, MOTOR BOX, UPPERCOVER, MOTOR BOX, UPPER
-
2117421174-3703 MOTOR, ELECTRICMOTOR, ELECTRIC
-
21176A21176-3722 SENSOR, TRIM METERSENSOR, TRIM METER
-
2601126011-3835 WIRE, LEAD, TRIM SWITCHWIRE, LEAD, TRIM SWITCH
-
26011B26011-3840 WIRE, LEAD, TRIM METERWIRE, LEAD, TRIM METER
-
5907159071-3001 JOINTJOINT
-
5922159221-3709 CONNECTOR, CORDCONNECTOR, CORD
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
9200992009-3807 SCREW, 4X12SCREW, 4X12
-
9201592015-526 NUT, 20MMNUT, 20MM
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
92022B92022-535 WASHERWASHER
-
9203692036-501 RING, SNAPRING, SNAP
-
9203792037-1173 CLAMPCLAMP
-
9205592055-3737 O-RING, ID=171O-RING, ID=171
-
9207192071-3737 GROMMETGROMMET
-
9207292072-3778 BANDBAND
-
9207592075-1435 DAMPER, METER BRACKETDAMPER, METER BRACKET
-
9214392143-3749 COLLARCOLLAR
-
9215092150-3775 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
92150A92150-3822 BOLT, SOCKET, 6X30BOLT, SOCKET, 6X30
-
92150B92150-3823 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9220092200-3742 WASHER, 22.5X32X1WASHER, 22.5X32X1
