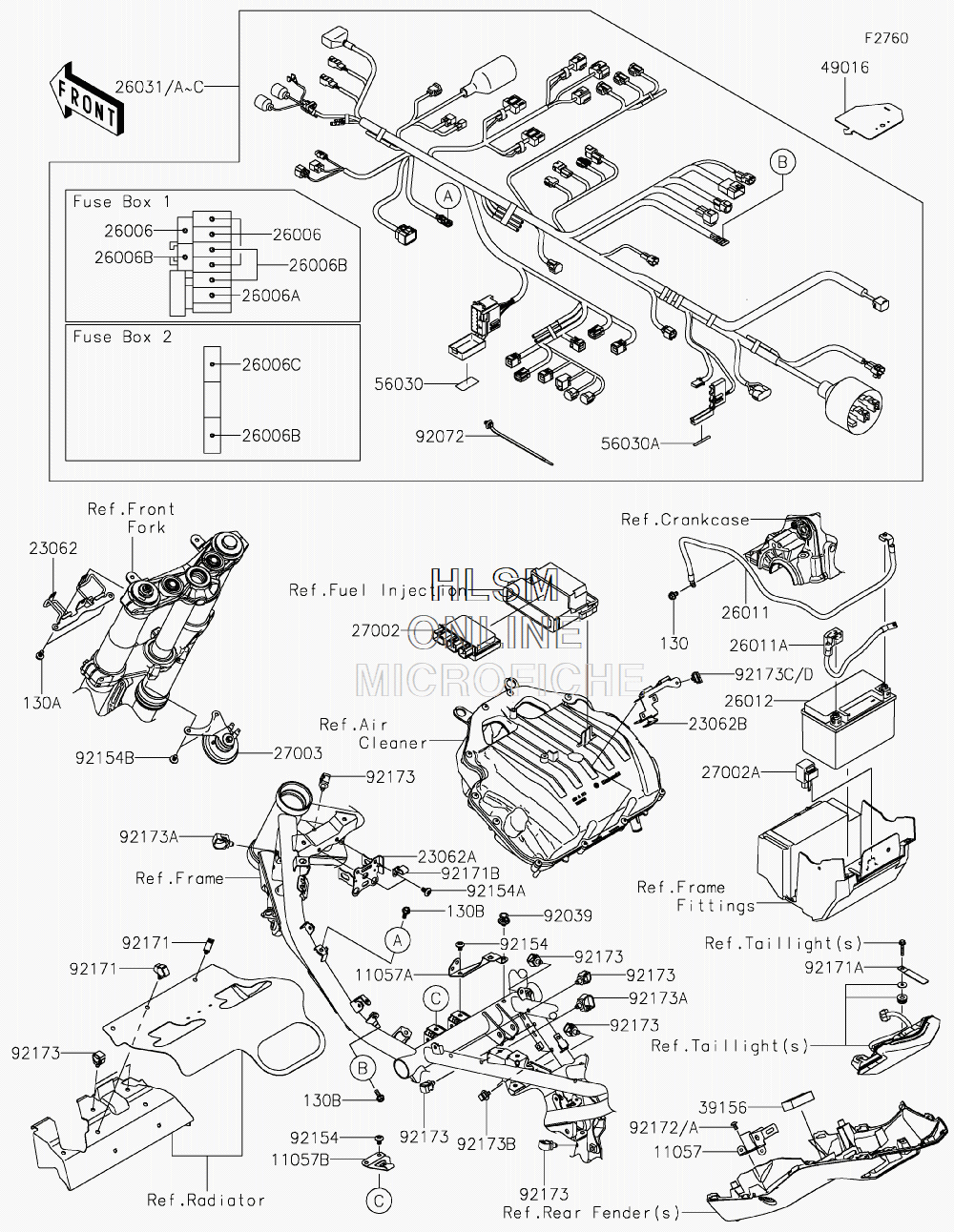

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki Z900 (ZR900AKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11057-0316 BRACKET, RELAY
    BRACKET, RELAY
  • 11057A
    11057-0317 BRACKET, MAIN HARNESS
    BRACKET, MAIN HARNESS
  • 11057B
    11057-0563 BRACKET, CONNECTOR
    BRACKET, CONNECTOR
  • 130
    130BA0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 130A
    130BA0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 130B
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 23062
    23062-0893 BRACKET-COMP, UPPER HOLDER
    BRACKET-COMP, UPPER HOLDER
  • 23062A
    23062-0894 BRACKET-COMP, V.D. SENSOR
    BRACKET-COMP, V.D. SENSOR
  • 23062B
    23062-0930 BRACKET-COMP, A/C BOX
    BRACKET-COMP, A/C BOX
  • 26006
    26006-0001 FUSE, MINI BLADE, 15A, (BLUE)
    FUSE, MINI BLADE, 15A, (BLUE)
  • 26006A
    26006-0052 FUSE, MINI BLADE, 2A, (GRAY)
    FUSE, MINI BLADE, 2A, (GRAY)
  • 26006B
    26006-0055 FUSE, MINI BLADE, 7.5A, (BROWN)
    FUSE, MINI BLADE, 7.5A, (BROWN)
  • 26006C
    26006-1080 FUSE, MINI BLADE, 30A, (GREEN)
    FUSE, MINI BLADE, 30A, (GREEN)
  • 26011
    26011-0947 WIRE-LEAD, BATTERY(-)
    WIRE-LEAD, BATTERY(-)
  • 26011A
    26011-0953 WIRE-LEAD, BATTERY(+)
    WIRE-LEAD, BATTERY(+)
  • 26012
    26012-0660 BATTERY, FTX9-BS, 12V 8AH
    BATTERY, FTX9-BS, 12V 8AH
  • 26031B
    26031-2510 HARNESS, MAIN (EXCEPT CALIF.)
    HARNESS, MAIN (EXCEPT CALIF.)
  • 26031C
    26031-2511 HARNESS, MAIN (CALIF. ONLY)
    HARNESS, MAIN (CALIF. ONLY)
  • 27002
    27002-0025 RELAY-ASSY, BOX
    RELAY-ASSY, BOX
  • 27002A
    27002-1097 RELAY-ASSY, SIGNAL LAMP
    RELAY-ASSY, SIGNAL LAMP
  • 27003
    27003-0121 HORN
    HORN
  • 39156
    39156-2146 PAD, 32X52X15
    PAD, 32X52X15
  • 49016
    49016-0645 COVER-SEAL
    COVER-SEAL
  • 56030
    56030-0992 LABEL, FUSE BOX1
    LABEL, FUSE BOX1
  • 56030A
    56030-0994 LABEL, FUSE BOX2
    LABEL, FUSE BOX2
  • 92039
    92039-0014 RIVET, HOLE 8MM
    RIVET, HOLE 8MM
  • 92072
    92072-1414 BAND, OS170-FT7 (BLACK)
    BAND, OS170-FT7 (BLACK)
  • 92154
    92154-0774 BOLT, SOCKET, 6X10
    BOLT, SOCKET, 6X10
  • 92154A
    92154-2355 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92154B
    92154-2667 BOLT, SOCKET, 6X10
    BOLT, SOCKET, 6X10
  • 92171
    92171-0316 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92171A
    92171-0652 CLAMP, L=60
    CLAMP, L=60
  • 92171B
    92171-0926 CLAMP
    CLAMP
  • 92172
    92172-0262 SCREW, TAPPING, 5X10
    SCREW, TAPPING, 5X10
  • 92173
    92173-0736 CLAMP, 12MM DIA.
    CLAMP, 12MM DIA.
  • 92173A
    92173-0861 CLAMP
    CLAMP
  • 92173B
    92173-1022 CLAMP, CABLE CLIP
    CLAMP, CABLE CLIP
  • 92173D
    92173-1802 CLAMP, SENSOR WIRE
    CLAMP, SENSOR WIRE
