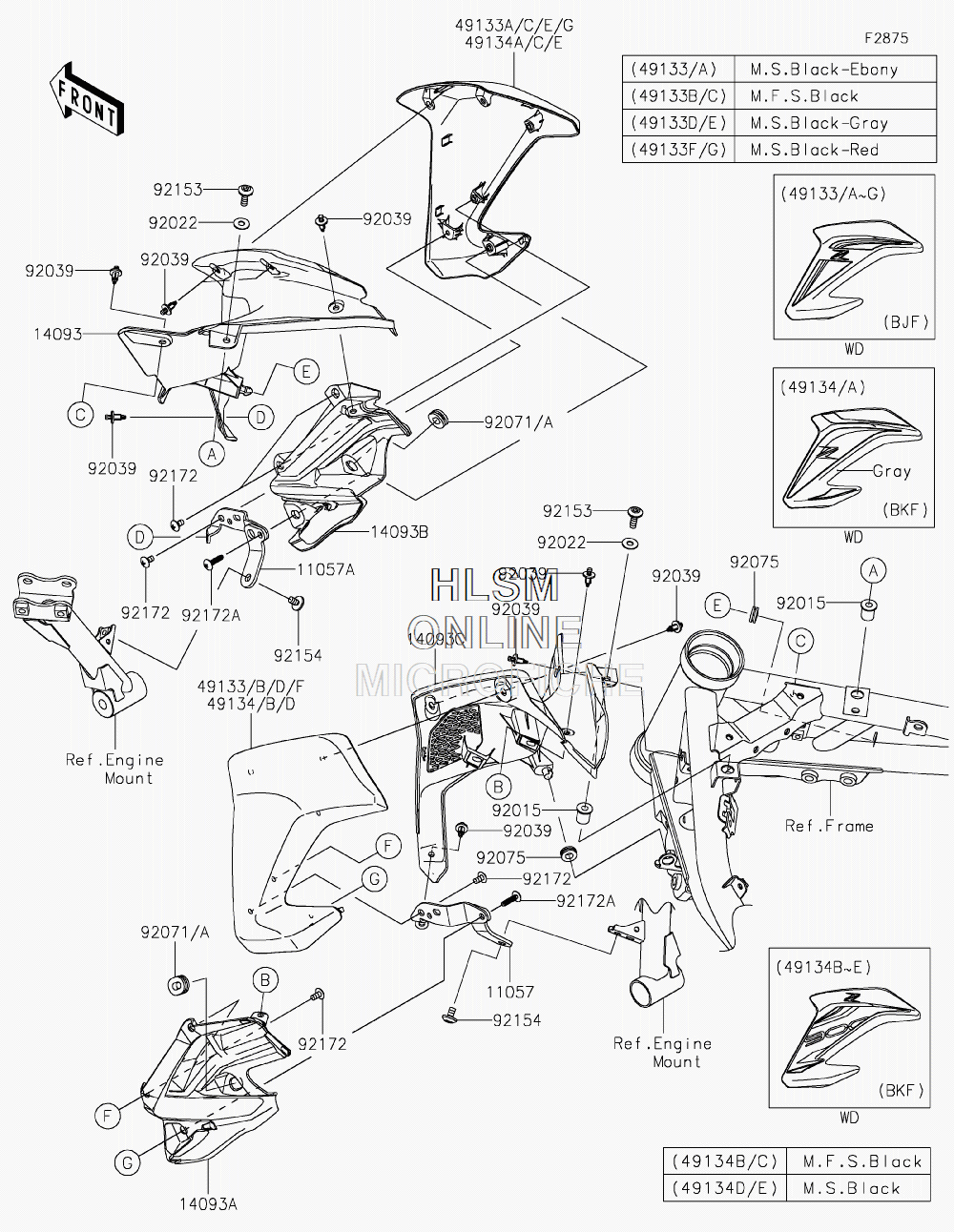

SHROUD для Kawasaki Z900 ABS (ZR900BKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11057
    11057-0254 BRACKET, SHROUD, LEFT HAND
    BRACKET, SHROUD, LEFT HAND
  • 11057A
    11057-0255 BRACKET, SHROUD, RIGHT HAND
    BRACKET, SHROUD, RIGHT HAND
  • 14093
    14093-0506 COVER, INNER, RIGHT HAND, FRONT
    COVER, INNER, RIGHT HAND, FRONT
  • 14093A
    14093-0507 COVER, INNER, LEFT HAND, REAR
    COVER, INNER, LEFT HAND, REAR
  • 14093B
    14093-0508 COVER, INNER, RIGHT HAND, REAR
    COVER, INNER, RIGHT HAND, REAR
  • 14093C
    14093-0638 COVER, INNER, LEFT HAND, FRONT
    COVER, INNER, LEFT HAND, FRONT
  • 49134
    49134-5010-25X SHROUD, LEFT HAND, (M.M.GRAY) (FOR 25X)
    SHROUD, LEFT HAND, (M.M.GRAY) (FOR 25X)
  • 49134A
    49134-5011-25X SHROUD, RIGHT HAND, (M.M.GRAY) (FOR 25X)
    SHROUD, RIGHT HAND, (M.M.GRAY) (FOR 25X)
  • 49134B
    49134-5012-739 SHROUD, LEFT HAND, (M.F.S.BLACK) (FOR 739)
    SHROUD, LEFT HAND, (M.F.S.BLACK) (FOR 739)
  • 49134C
    49134-5013-739 SHROUD, RIGHT HAND, (M.F.S.BLACK) (FOR 739)
    SHROUD, RIGHT HAND, (M.F.S.BLACK) (FOR 739)
  • 49134D
    49134-5016-660 SHROUD, LEFT HAND, (M.S.BLACK) (FOR 40X)
    SHROUD, LEFT HAND, (M.S.BLACK) (FOR 40X)
  • 49134E
    49134-5017-660 SHROUD, RIGHT HAND, (M.S.BLACK) (FOR 40X)
    SHROUD, RIGHT HAND, (M.S.BLACK) (FOR 40X)
  • 92015
    92015-1700 NUT
    NUT
  • 92022
    92022-1654 WASHER, 6.5X16X1.0
    WASHER, 6.5X16X1.0
  • 92039
    92039-0068 RIVET
    RIVET
  • 92071A
    92071-0777 GROMMET, EMBOSSED 0777
    GROMMET, EMBOSSED 0777
  • 92075
    92075-161 DAMPER
    DAMPER
  • 92153
    92153-0816 BOLT, 6X18
    BOLT, 6X18
  • 92154
    92154-2667 BOLT, SOCKET, 6X10
    BOLT, SOCKET, 6X10
  • 92172
    92172-0864 SCREW, 5X10
    SCREW, 5X10
  • 92172A
    92172-1159 SCREW, TAPPING, 5X20
    SCREW, TAPPING, 5X20
