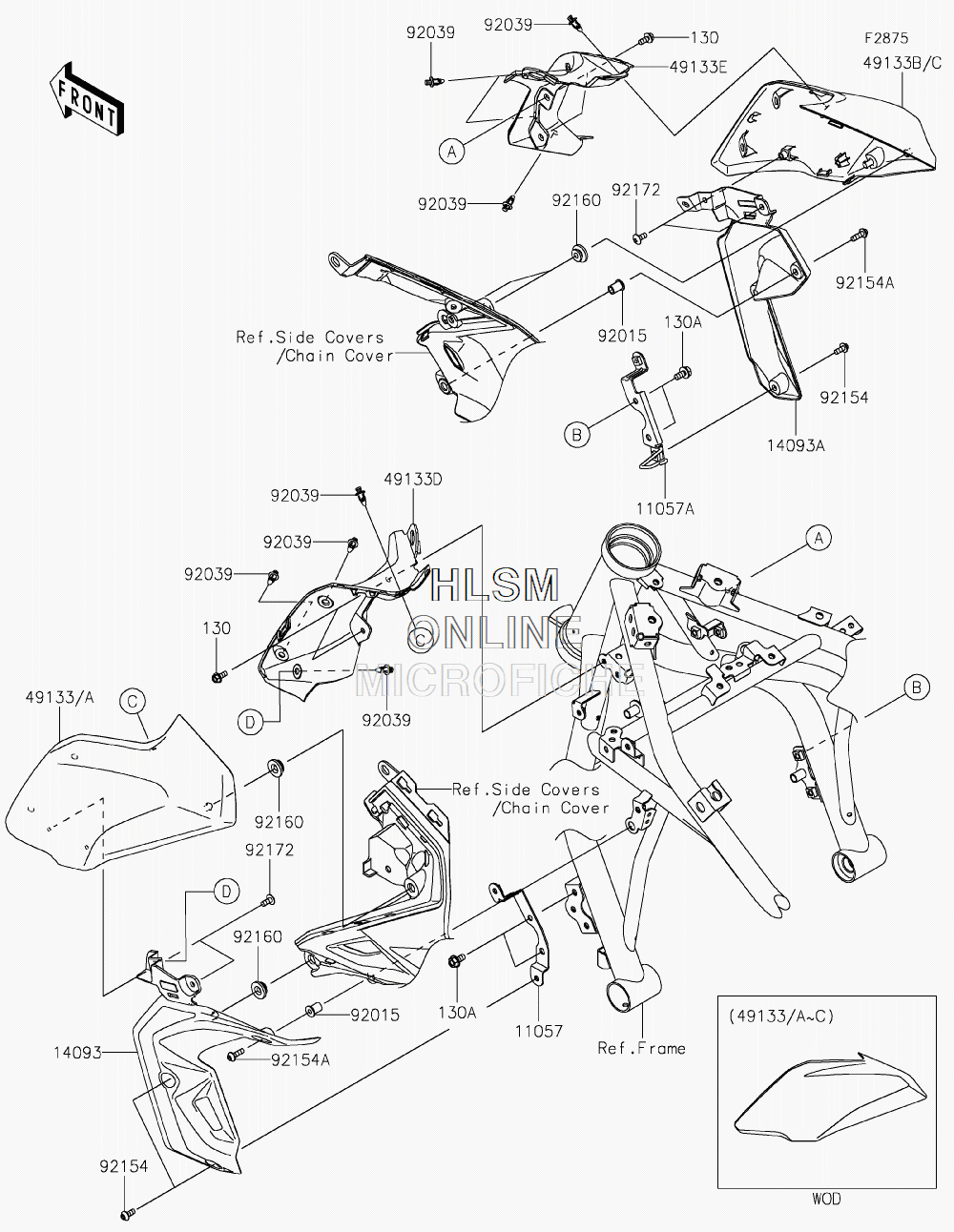

SHROUD для Kawasaki Z650 (ER650GKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11057
    11057-0120 BRACKET, RADIATOR COVER, LEFT HAND
    BRACKET, RADIATOR COVER, LEFT HAND
  • 11057A
    11057-0121 BRACKET, RADIATOR COVER, RIGHT HAND
    BRACKET, RADIATOR COVER, RIGHT HAND
  • 130
    130BA0512 BOLT-FLANGED, 5X12
    BOLT-FLANGED, 5X12
  • 130A
    130BA0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 14093
    14093-0488 COVER, RADIATOR, LEFT HAND
    COVER, RADIATOR, LEFT HAND
  • 14093A
    14093-0489 COVER, RADIATOR, RIGHT HAND
    COVER, RADIATOR, RIGHT HAND
  • 49133A
    49133-0019-739 SHROUD, LEFT HAND, (M.F.S.BLACK) (FOR ALL COLORS)
    SHROUD, LEFT HAND, (M.F.S.BLACK) (FOR ALL COLORS)
  • 49133C
    49133-0020-739 SHROUD, RIGHT HAND, (M.F.S.BLACK) (FOR ALL COLORS)
    SHROUD, RIGHT HAND, (M.F.S.BLACK) (FOR ALL COLORS)
  • 49133D
    49133-0021 SHROUD, LEFT HAND, INNER
    SHROUD, LEFT HAND, INNER
  • 49133E
    49133-0022 SHROUD, RIGHT HAND, INNER
    SHROUD, RIGHT HAND, INNER
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92039
    92039-0709 RIVET
    RIVET
  • 92154
    92154-0917 BOLT, SOCKET, 5X12
    BOLT, SOCKET, 5X12
  • 92154A
    92154-1701 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92160
    92160-1613 DAMPER
    DAMPER
  • 92172
    92172-0821 SCREW, 5X12
    SCREW, 5X12
