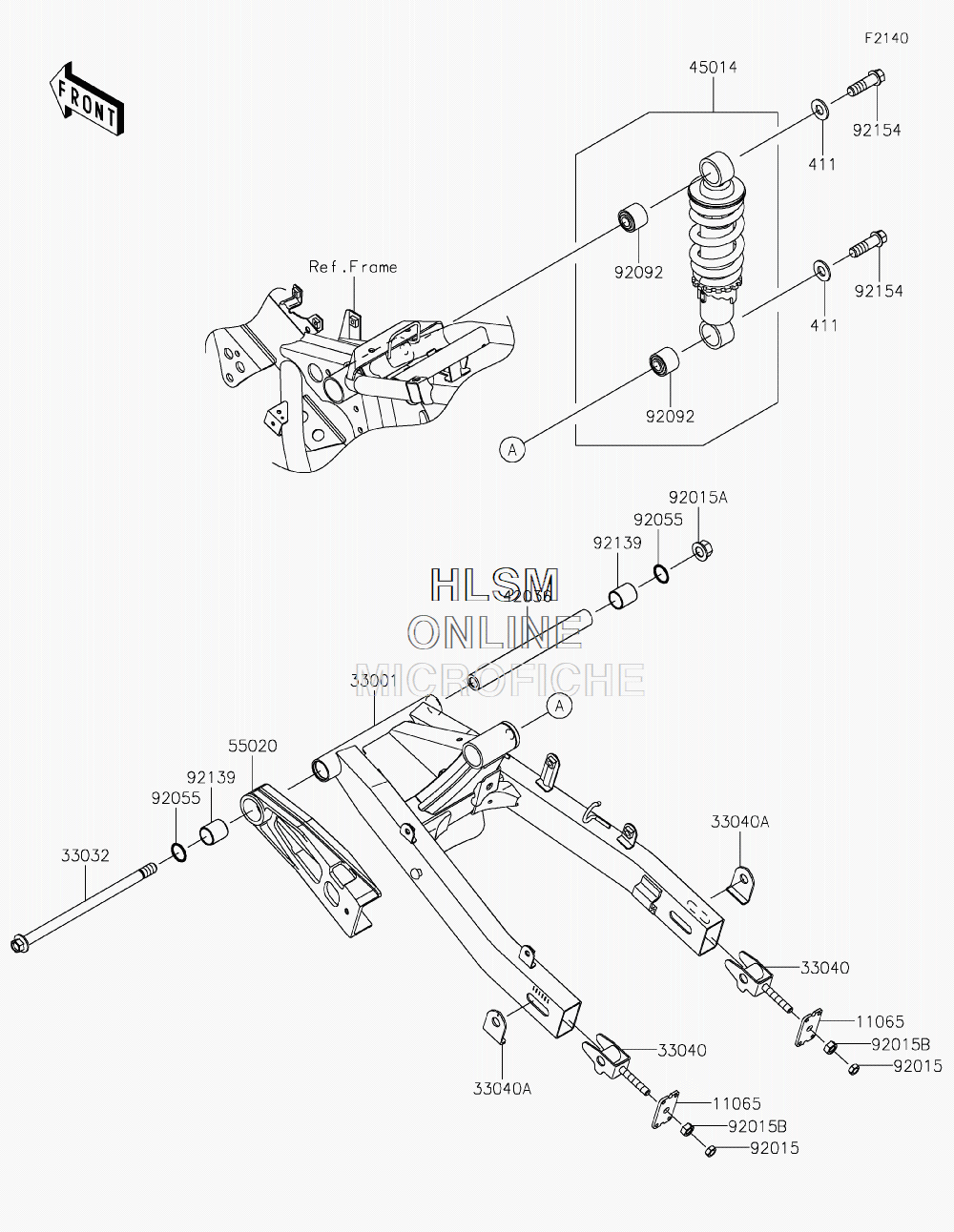

SUSPENSION - SWINGARM W/ SHOCK ABSORBER для Kawasaki Z125 PRO (BR125JKF) - 2019 года выпуска
-
№АртикулНазвание
-
1106511065-0916 CAPCAP
-
3300133001-0647-18R ARM-COMP-SWING, (F.S.BLACK) (FOR ALL COLORS)ARM-COMP-SWING, (F.S.BLACK) (FOR ALL COLORS)
-
3303233032-0047 SHAFT-SWING ARMSHAFT-SWING ARM
-
3304033040-0082 ADJUSTER-CHAINADJUSTER-CHAIN
-
33040A33040-0083 ADJUSTER-CHAINADJUSTER-CHAIN
-
411411AA1200 WASHER-PLAIN, 12MMWASHER-PLAIN, 12MM
-
4203642036-0774 SLEEVE, 12.1X20X189.5SLEEVE, 12.1X20X189.5
-
4501445014-0512-458 SHOCKABSORBER, (P.SILVER) (FOR ALL COLORS)SHOCKABSORBER, (P.SILVER) (FOR ALL COLORS)
-
5502055020-1902 GUARDGUARD
-
9201592015-1364 NUT, 8MMNUT, 8MM
-
92015A92015-1426 NUT, 12MMNUT, 12MM
-
92015B92015-1658 NUT, 8MMNUT, 8MM
-
9205592055-1215 RING-O, 19.8X2.2RING-O, 19.8X2.2
-
9209292092-0033 BUSHING-RUBBERBUSHING-RUBBER
-
9213992139-0778 BUSHING, 20X23X25BUSHING, 20X23X25
-
9215492154-1789 BOLT, FLANGED, 12X40BOLT, FLANGED, 12X40
