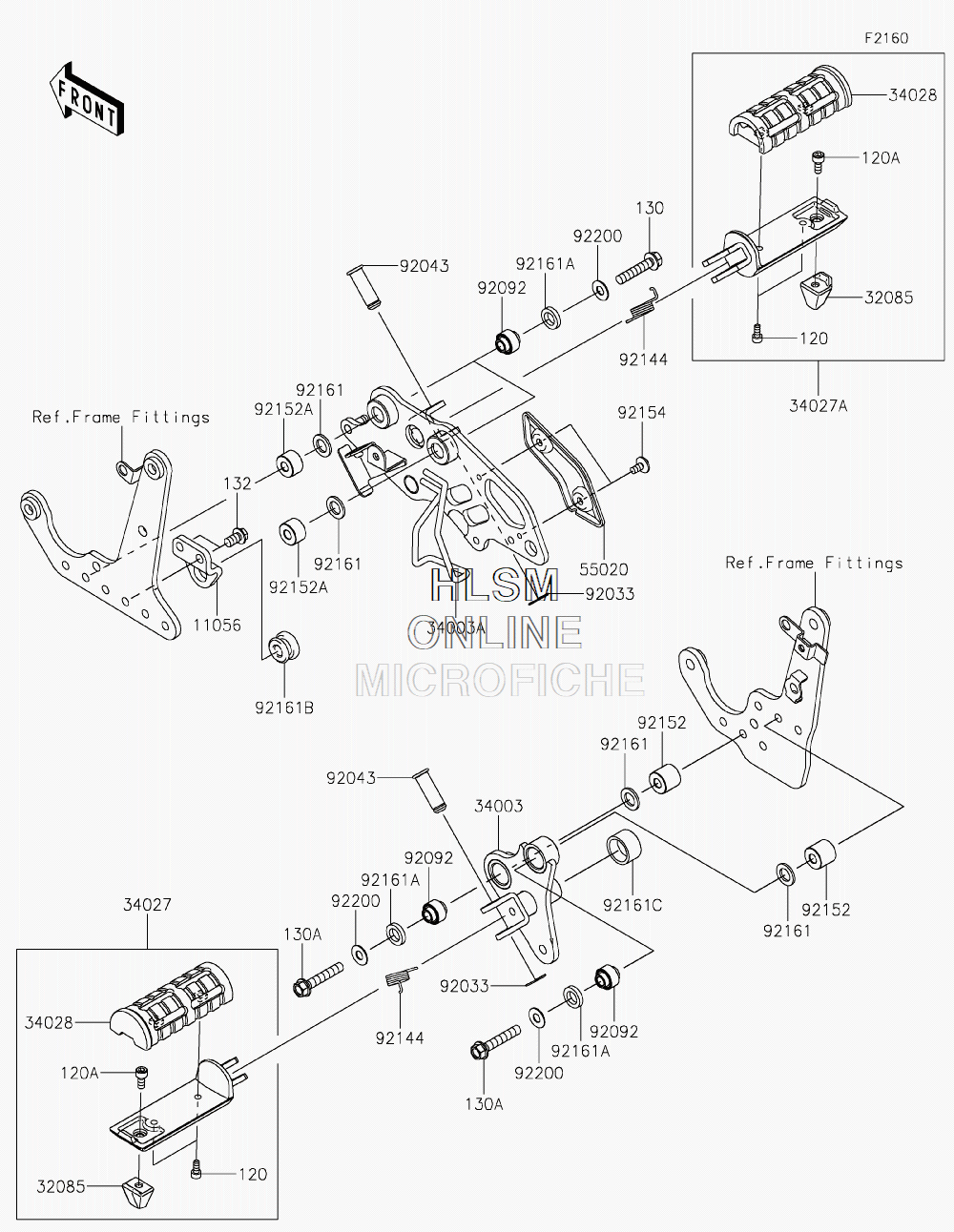

FOOTRESTS для Kawasaki VULCAN S ABS CAFE (EN650EKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11056
    11056-7031 BRACKET, STEP, FRONT, RIGHT HAND
    BRACKET, STEP, FRONT, RIGHT HAND
  • 120
    120CB0512 BOLT-SOCKET, 5X12
    BOLT-SOCKET, 5X12
  • 120A
    120CB0614 BOLT-SOCKET, 6X14
    BOLT-SOCKET, 6X14
  • 130
    130BB0840 BOLT-FLANGED, 8X40
    BOLT-FLANGED, 8X40
  • 130A
    130BB0845 BOLT-FLANGED, 8X45
    BOLT-FLANGED, 8X45
  • 132
    132BB0814 BOLT-FLANGED-SMALL, 8X14
    BOLT-FLANGED-SMALL, 8X14
  • 32085
    32085-0770 STOPPER, BANK SENSOR
    STOPPER, BANK SENSOR
  • 34003
    34003-0141 HOLDER-STEP, LEFT HAND
    HOLDER-STEP, LEFT HAND
  • 34003A
    34003-0156 HOLDER-STEP, RIGHT HAND
    HOLDER-STEP, RIGHT HAND
  • 34027
    34027-0012 STEP-ASSY, LEFT HAND
    STEP-ASSY, LEFT HAND
  • 34027A
    34027-0013 STEP-ASSY, RIGHT HAND
    STEP-ASSY, RIGHT HAND
  • 34028
    34028-0338 STEP, RUBBER
    STEP, RUBBER
  • 55020
    55020-1880 GUARD, STEP HOLDER, RIGHT HAND
    GUARD, STEP HOLDER, RIGHT HAND
  • 92033
    92033-1166 RING-SNAP, 10MM
    RING-SNAP, 10MM
  • 92043
    92043-1358 PIN, 12X37
    PIN, 12X37
  • 92092
    92092-1018-SP BUSHING-RUBBER, 8.4X20X18
    BUSHING-RUBBER, 8.4X20X18
  • 92144
    92144-1126 SPRING, STEP RETURN
    SPRING, STEP RETURN
  • 92152
    92152-1952 COLLAR, 8.4X21X19
    COLLAR, 8.4X21X19
  • 92152A
    92152-1953 COLLAR, 8.4X21X13
    COLLAR, 8.4X21X13
  • 92154
    92154-0951 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92161
    92161-0943 DAMPER, 12.5X21X2
    DAMPER, 12.5X21X2
  • 92161A
    92161-0944 DAMPER, 12.5X20X4
    DAMPER, 12.5X20X4
  • 92161B
    92161-1523 DAMPER
    DAMPER
  • 92161C
    92161-1702 DAMPER, 21.5X27.5X16
    DAMPER, 21.5X27.5X16
  • 92200
    92200-1733 WASHER, 8.5X19X1
    WASHER, 8.5X19X1
