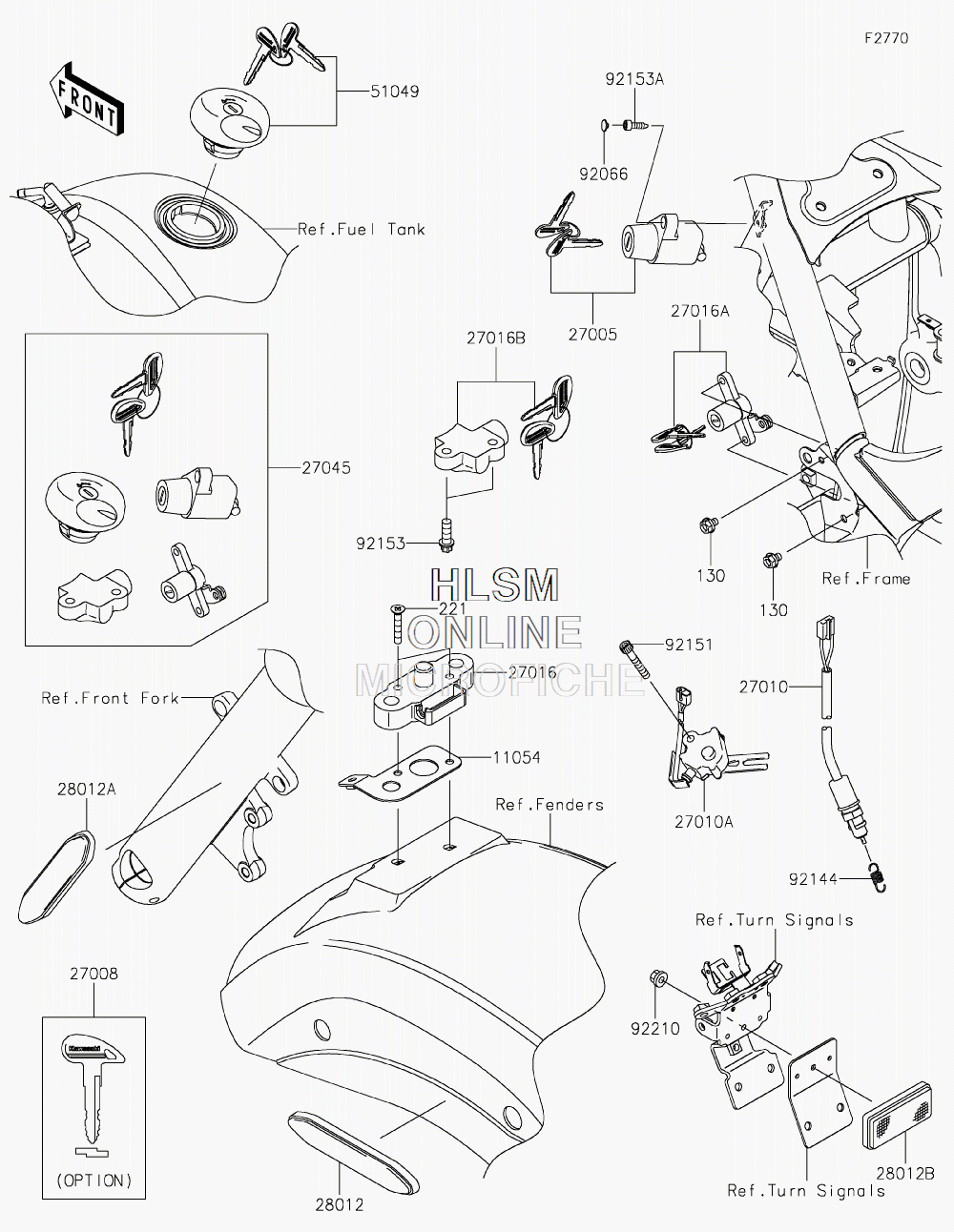

IGNITION SWITCH W/ LOCKS AND REFLECTORS для Kawasaki VULCAN 900 CLASSIC (VN900BKF) - 2019 года выпуска
-
№АртикулНазвание
-
1105411054-0492 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
130130BB0608 BOLT-FLANGED, 6X8BOLT-FLANGED, 6X8
-
221221AB0635 SCREW-CSK-CROS, 6X35SCREW-CSK-CROS, 6X35
-
2700527005-0032 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-0042 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-0050 SWITCH, REAR BRAKESWITCH, REAR BRAKE
-
27010A27010-1470 SWITCH, SIDE STANDSWITCH, SIDE STAND
-
2701627016-1098 LOCK-ASSY, SEAT STRIKERLOCK-ASSY, SEAT STRIKER
-
27016A27016-5341 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
27016B27016-5342 LOCK-ASSY, STEERINGLOCK-ASSY, STEERING
-
2704527045-5323 SWITCH-ASSYSWITCH-ASSY
-
2801228012-0010 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012A28012-0019 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
28012B28012-1077 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
5104951049-5001 CAP-TANK, FUELCAP-TANK, FUEL
-
9206692066-1543 PLUGPLUG
-
9214492144-1141 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9215192151-1390 BOLT, SOCKET, 6X35BOLT, SOCKET, 6X35
-
9215392153-1273 BOLT, TORX, 8X22BOLT, TORX, 8X22
-
92153A92153-1685 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9221092210-0007 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
