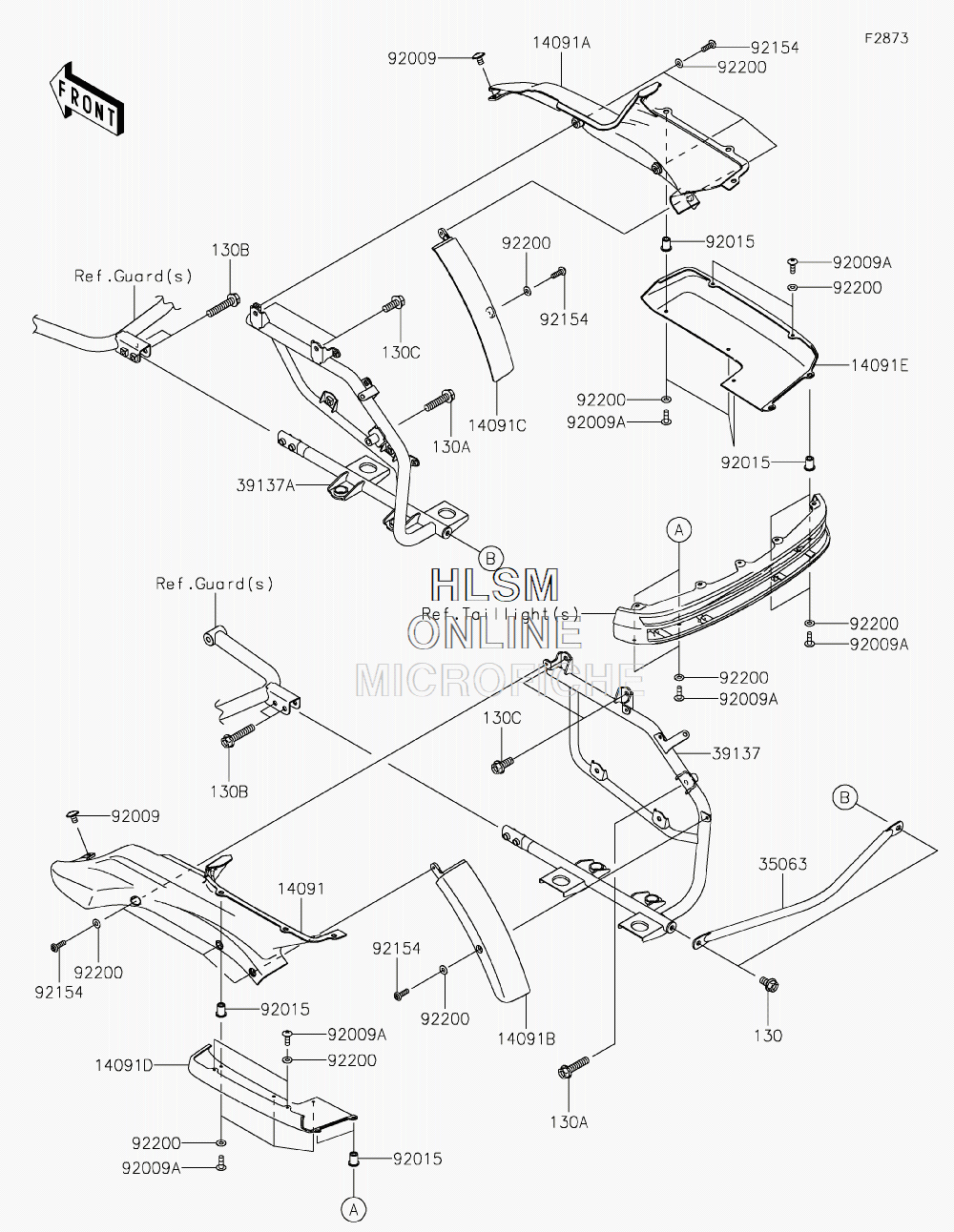

SADDLEBAGS (SIDE BAG BRACKET) для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BKF) - 2019 года выпуска
-
№АртикулНазвание
-
130130BA0814 BOLT-FLANGED, 8X14BOLT-FLANGED, 8X14
-
130A130BA0835 BOLT-FLANGED, 8X35BOLT-FLANGED, 8X35
-
130B130BA0840 BOLT-FLANGED, 8X40BOLT-FLANGED, 8X40
-
130C130CA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
1409114091-0950 COVER, STAY, LOWER, LEFT HANDCOVER, STAY, LOWER, LEFT HAND
-
14091A14091-0951 COVER, STAY, LOWER, RIGHT HANDCOVER, STAY, LOWER, RIGHT HAND
-
14091B14091-0957 COVER, STRUT, LEFT HANDCOVER, STRUT, LEFT HAND
-
14091C14091-0958 COVER, STRUT, RIGHT HANDCOVER, STRUT, RIGHT HAND
-
14091D14091-1661 COVER, STAY, UPPER, LEFT HANDCOVER, STAY, UPPER, LEFT HAND
-
14091E14091-1662 COVER, STAY, UPPER, RIGHT HANDCOVER, STAY, UPPER, RIGHT HAND
-
3506335063-0537 STAY, PANNIERSTAY, PANNIER
-
3913739137-0048 STAY-COMP, PANNIER, LEFT HANDSTAY-COMP, PANNIER, LEFT HAND
-
39137A39137-0049 STAY-COMP, PANNIER, RIGHT HANDSTAY-COMP, PANNIER, RIGHT HAND
-
9200992009-1286 SCREW, 6X10, WHITESCREW, 6X10, WHITE
-
92009A92009-1464 SCREW, 5X16, WHITESCREW, 5X16, WHITE
-
9201592015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9215492154-0287 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
9220092200-0538 WASHER, NATURAL, 5.3X11.5X1.0WASHER, NATURAL, 5.3X11.5X1.0
