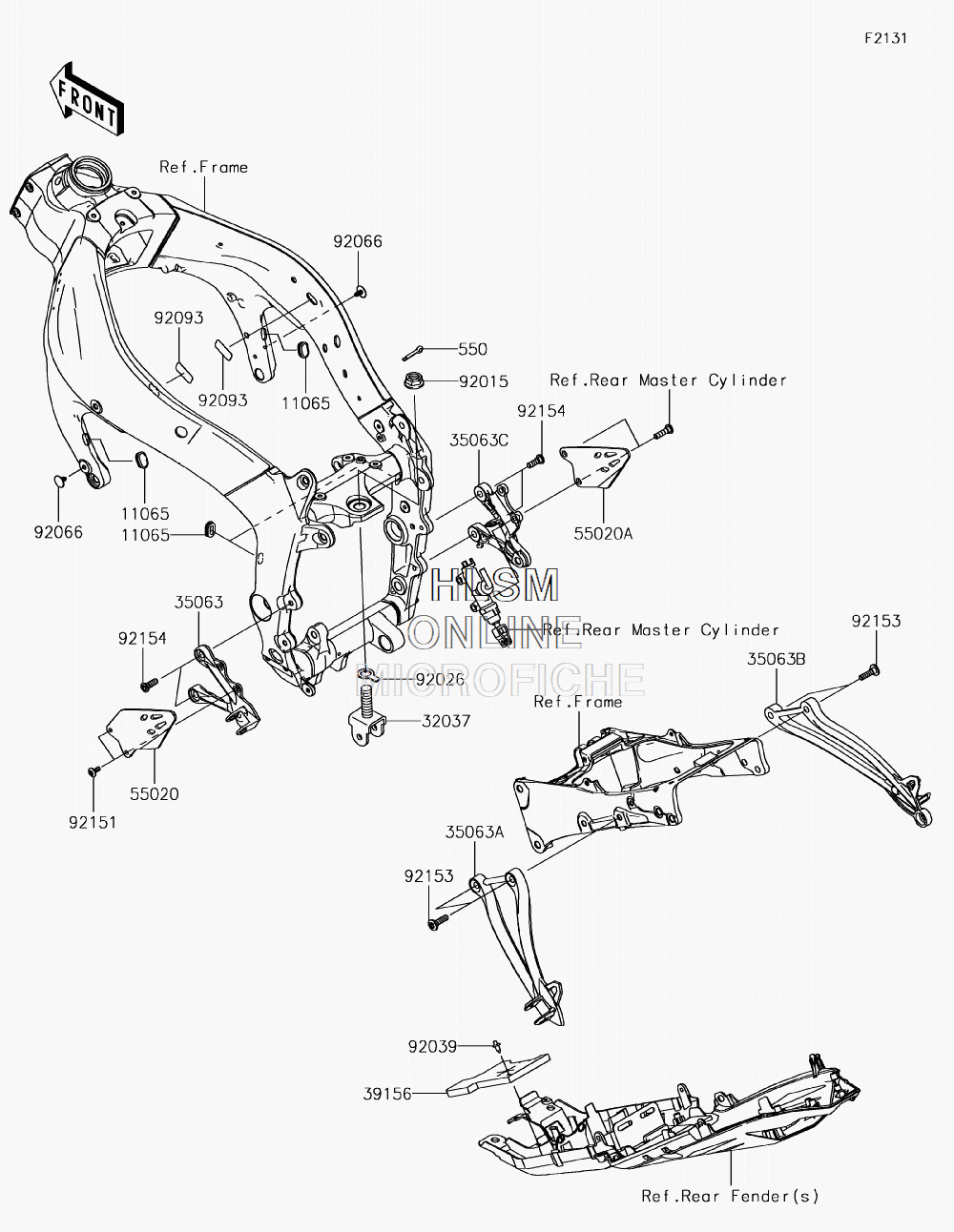

FRAME FITTINGS для Kawasaki NINJA ZX-6R ABS KRT EDITION (ZX636GKFA) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11065
    11065-0095 CAP
    CAP
  • 32037
    32037-0412 BRACKET-SHOCKABSORBER
    BRACKET-SHOCKABSORBER
  • 35063
    35063-0160-18R STAY, FRONT, LEFT HAND, (F.S.BLACK)
    STAY, FRONT, LEFT HAND, (F.S.BLACK)
  • 35063A
    35063-0444-18R STAY, REAR, LEFT HAND, (F.S.BLACK)
    STAY, REAR, LEFT HAND, (F.S.BLACK)
  • 35063B
    35063-0445-18R STAY, REAR, RIGHT HAND, (F.S.BLACK)
    STAY, REAR, RIGHT HAND, (F.S.BLACK)
  • 35063C
    35063-0590-18R STAY, FRONT, RIGHT HAND, (F.S.BLACK)
    STAY, FRONT, RIGHT HAND, (F.S.BLACK)
  • 39156
    39156-1000 PAD
    PAD
  • 550
    550S3025 PIN-COTTER, 3X25
    PIN-COTTER, 3X25
  • 55020
    55020-2226 GUARD, HEEL, LEFT HAND
    GUARD, HEEL, LEFT HAND
  • 55020A
    55020-2227 GUARD, HEEL, RIGHT HAND
    GUARD, HEEL, RIGHT HAND
  • 92015
    92015-1881 NUT, FLANGED, 16MM
    NUT, FLANGED, 16MM
  • 92026
    92026-0747 SPACER, 16.5X26X2
    SPACER, 16.5X26X2
  • 92039
    92039-0068 RIVET
    RIVET
  • 92066
    92066-0751 PLUG, 6X17
    PLUG, 6X17
  • 92093
    92093-0154 SEAL
    SEAL
  • 92151
    92151-1654 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92153
    92153-1630 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92154
    92154-1149 BOLT, SOCKET, 8X25
    BOLT, SOCKET, 8X25
