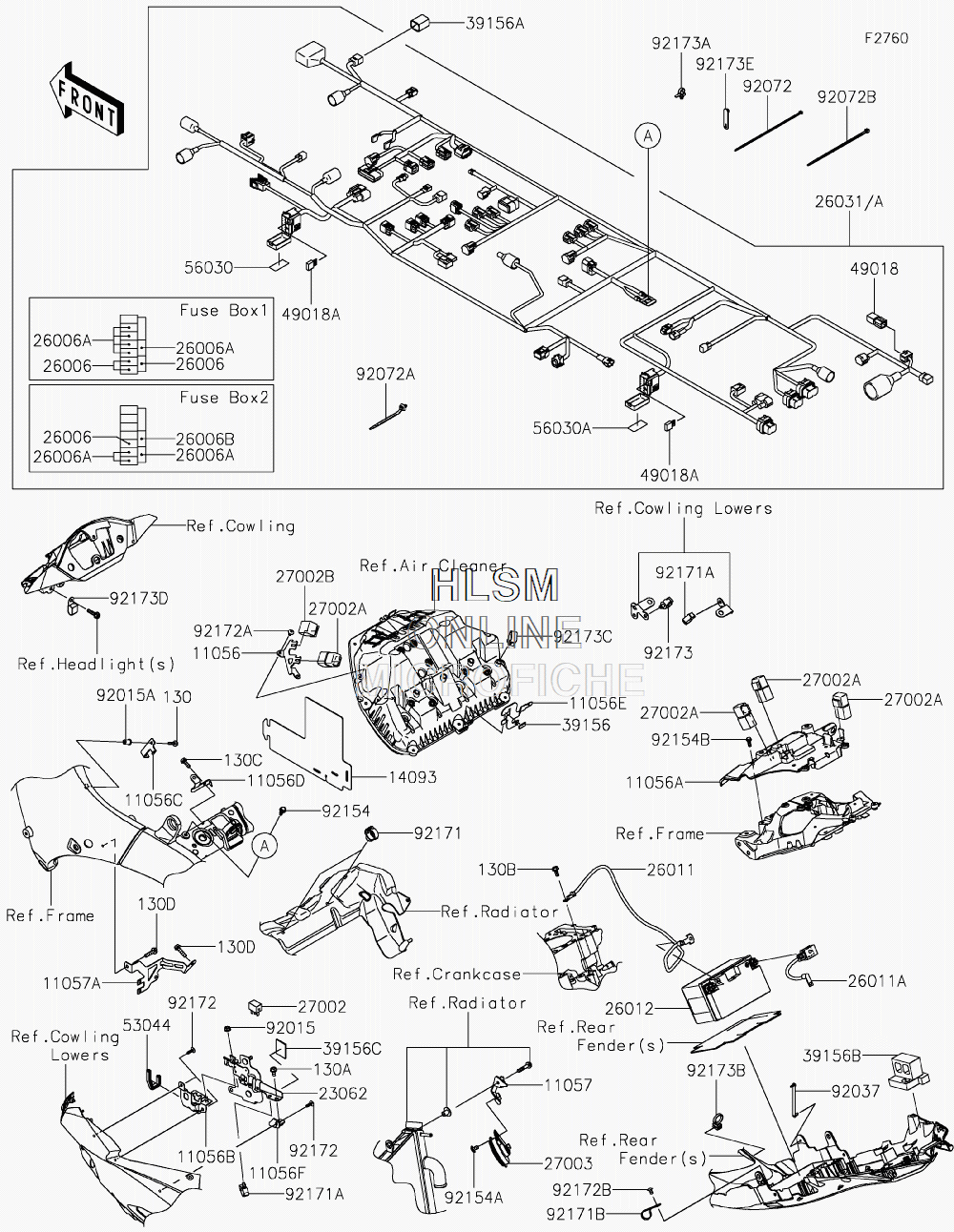

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA ZX-10R (ZX1002FKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1105611056-7706 BRACKET, RELAYBRACKET, RELAY
-
11056A11056-7717 BRACKET, ECUBRACKET, ECU
-
11056B11056-7809 BRACKET, FUSEBRACKET, FUSE
-
11056C11056-7828 BRACKET, FRAME, LEFT HANDBRACKET, FRAME, LEFT HAND
-
11056D11056-7829 BRACKET, CROSS FRAMEBRACKET, CROSS FRAME
-
11056E11056-7955 BRACKET, HARNESSBRACKET, HARNESS
-
11056F11056-7959 BRACKET, CONNECTOR, REARBRACKET, CONNECTOR, REAR
-
1105711057-0017 BRACKET, HORNBRACKET, HORN
-
11057A11057-0068 BRACKET, SHIFTER & GEAR POSITIONBRACKET, SHIFTER & GEAR POSITION
-
130130BA0518 BOLT-FLANGED, 5X18BOLT-FLANGED, 5X18
-
130A130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130B130BA0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130C130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130D130BA0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
1409314093-0476 COVER, RELAYCOVER, RELAY
-
2306223062-0873 BRACKET-COMP, CONNECTORBRACKET-COMP, CONNECTOR
-
2600626006-0001 FUSE, MINI BLADE, 15A, (BLUE)FUSE, MINI BLADE, 15A, (BLUE)
-
26006A26006-1078 FUSE, MINI BLADE, 10A, (RED)FUSE, MINI BLADE, 10A, (RED)
-
26006B26006-1080 FUSE, MINI BLADE, 30A, (GREEN)FUSE, MINI BLADE, 30A, (GREEN)
-
2601126011-0943 WIRE-LEAD, BATTERY(-)WIRE-LEAD, BATTERY(-)
-
26011A26011-1890 WIRE-LEAD, BATTERY(+)WIRE-LEAD, BATTERY(+)
-
2601226012-0564 BATTERY, YTZ10S, 12V 8.6AHBATTERY, YTZ10S, 12V 8.6AH
-
2603126031-2546 HARNESS, MAIN (EXCEPT CALIF.)HARNESS, MAIN (EXCEPT CALIF.)
-
26031A26031-2547 HARNESS, MAIN (CALIF. ONLY)HARNESS, MAIN (CALIF. ONLY)
-
2700227002-0027 RELAY-ASSY, HEAD LAMPRELAY-ASSY, HEAD LAMP
-
27002A27002-1086 RELAY-ASSYRELAY-ASSY
-
27002B27002-1097 RELAY-ASSY, SIGNAL LAMPRELAY-ASSY, SIGNAL LAMP
-
2700327003-0113 HORNHORN
-
3915639156-0389 PAD, HEAT GUARDPAD, HEAT GUARD
-
39156A39156-1886 PAD, DIAG. CONNECTORPAD, DIAG. CONNECTOR
-
39156B39156-1993 PAD, DIAG/DONGLEPAD, DIAG/DONGLE
-
39156C39156-2370 PAD, 23X31X2PAD, 23X31X2
-
4901849018-0005 DIODEDIODE
-
49018A49018-0007 DIODEDIODE
-
5304453044-0018 TRIMTRIM
-
5603056030-0955 LABEL, FUSE BOX1LABEL, FUSE BOX1
-
56030A56030-0957 LABEL, FUSE BOX2LABEL, FUSE BOX2
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
92015A92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9203792037-1903 CLAMP, SPEED, L=80.5CLAMP, SPEED, L=80.5
-
9207292072-0782 BAND, 202X3.6BAND, 202X3.6
-
92072A92072-1414 BAND, OS170-FT7 (BLACK)BAND, OS170-FT7 (BLACK)
-
92072B92072-3768 BAND, L=148BAND, L=148
-
9215492154-0551 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154A92154-0774 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
92154B92154-1864 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9217192171-0068 CLAMP, CLIP, DIA=20CLAMP, CLIP, DIA=20
-
92171A92171-0316 CLAMP, BRAKE HOSECLAMP, BRAKE HOSE
-
92171B92171-1279 CLAMPCLAMP
-
9217292172-0175 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
92172A92172-0262 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
92172B92172-0335 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
-
9217392173-0736 CLAMP, 12MM DIA.CLAMP, 12MM DIA.
-
92173A92173-0742 CLAMPCLAMP
-
92173B92173-0791 CLAMPCLAMP
-
92173C92173-0861 CLAMPCLAMP
-
92173D92173-1009 CLAMP, 68MMCLAMP, 68MM
-
92173E92173-1229 CLAMP, RUBBER PLATECLAMP, RUBBER PLATE
