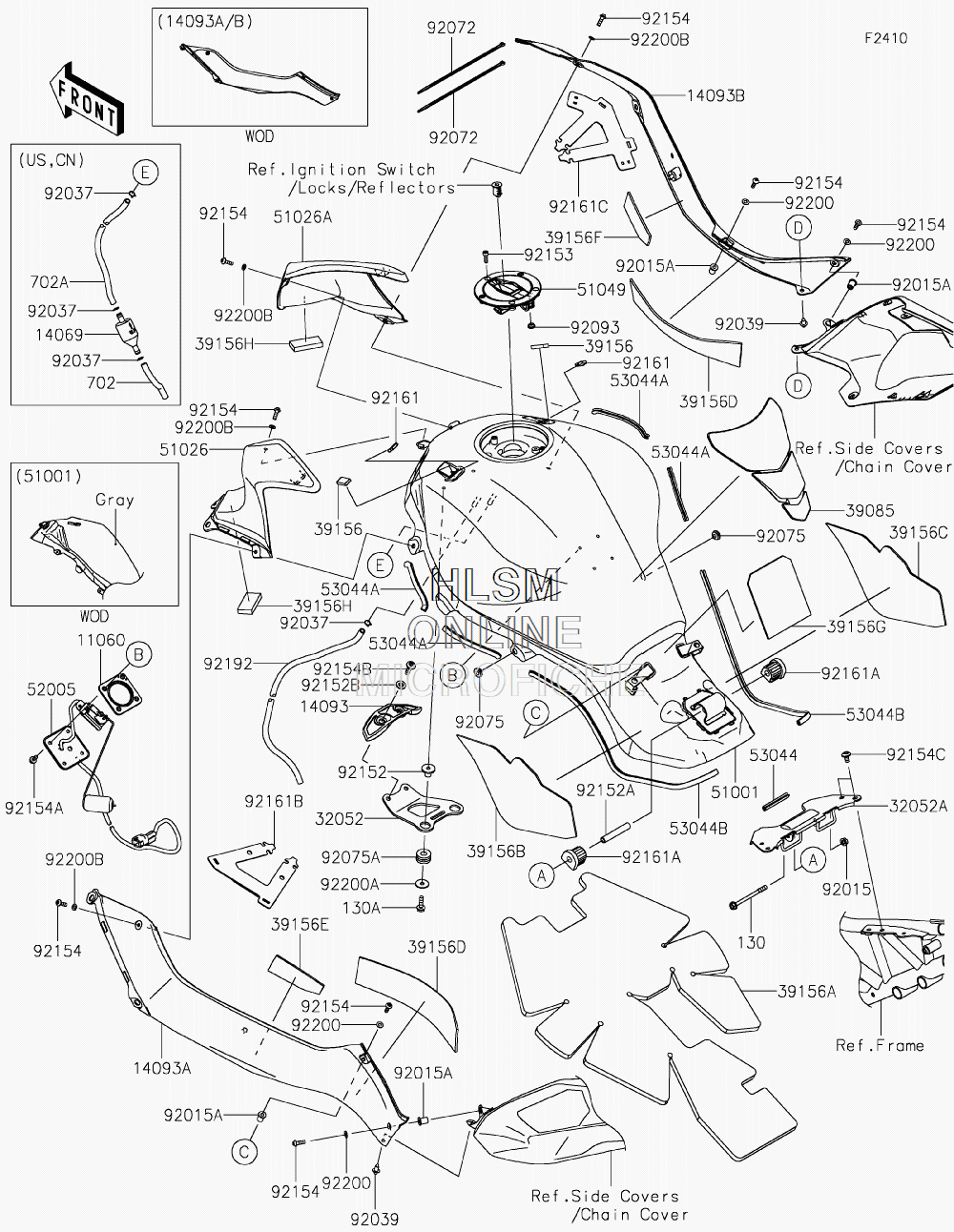

FUEL TANK для Kawasaki NINJA H2 SX SE+ (ZX1002DKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11060
    11060-1952 GASKET, FUEL GAUGE
    GASKET, FUEL GAUGE
  • 130
    130BA0675 BOLT-FLANGED, 6X75
    BOLT-FLANGED, 6X75
  • 130A
    130CA0622 BOLT-FLANGED, 6X22
    BOLT-FLANGED, 6X22
  • 14069
    14069-0008 BREATHER, TANK (EXCEPT CALIF.)
    BREATHER, TANK (EXCEPT CALIF.)
  • 14093
    14093-0676 COVER, TANK, FRONT
    COVER, TANK, FRONT
  • 14093A
    14093-0912-J02 COVER, KNEE, LEFT HAND, (M.G.GRAY)
    COVER, KNEE, LEFT HAND, (M.G.GRAY)
  • 14093B
    14093-0913-J02 COVER, KNEE, RIGHT HAND, (M.G.GRAY)
    COVER, KNEE, RIGHT HAND, (M.G.GRAY)
  • 32052
    32052-0811 BRACKET-TANK
    BRACKET-TANK
  • 32052A
    32052-0812 BRACKET-TANK
    BRACKET-TANK
  • 39085
    39085-0011 PAD-TANK
    PAD-TANK
  • 39156
    39156-0705 PAD, 20X30X4
    PAD, 20X30X4
  • 39156A
    39156-2229 PAD, FUEL TANK, LOWER
    PAD, FUEL TANK, LOWER
  • 39156B
    39156-2253 PAD, FUEL TANK, LEFT HAND
    PAD, FUEL TANK, LEFT HAND
  • 39156C
    39156-2254 PAD, FUEL TANK, RIGHT HAND
    PAD, FUEL TANK, RIGHT HAND
  • 39156D
    39156-2257 PAD, 50X250X3
    PAD, 50X250X3
  • 39156E
    39156-2290 PAD, 43X95X8, LEFT HAND
    PAD, 43X95X8, LEFT HAND
  • 39156F
    39156-2291 PAD, 43X95X8, RIGHT HAND
    PAD, 43X95X8, RIGHT HAND
  • 39156G
    39156-2307 PAD, 113X100X2
    PAD, 113X100X2
  • 39156H
    39156-2520 PAD, 25X50X8
    PAD, 25X50X8
  • 51001
    51001-0858-J02 TANK-COMP-FUEL, (M.G.GRAY)
    TANK-COMP-FUEL, (M.G.GRAY)
  • 51026
    51026-0016-J03 COVER TANK, LEFT HAND, (M.D.BLACK)
    COVER TANK, LEFT HAND, (M.D.BLACK)
  • 51026A
    51026-0017-J03 COVER TANK, RIGHT HAND, (M.D.BLACK)
    COVER TANK, RIGHT HAND, (M.D.BLACK)
  • 51049
    51049-0721 CAP-TANK
    CAP-TANK
  • 52005
    52005-0763 GAUGE, FUEL
    GAUGE, FUEL
  • 53044
    53044-0565 TRIM
    TRIM
  • 53044A
    53044-0627 TRIM, 105MM
    TRIM, 105MM
  • 53044B
    53044-0628 TRIM, 450MM
    TRIM, 450MM
  • 702
    702A06120 TUBE-RUBBER, 6X9X120 (EXCEPT CALIF.)
    TUBE-RUBBER, 6X9X120 (EXCEPT CALIF.)
  • 702A
    702A06700 TUBE-RUBBER, 6X9X700 (EXCEPT CALIF.)
    TUBE-RUBBER, 6X9X700 (EXCEPT CALIF.)
  • 92015
    92015-1367 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92037
    92037-010 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92037
    92037-010 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92039
    92039-0068 RIVET
    RIVET
  • 92072
    92072-0782 BAND, 202X3.6
    BAND, 202X3.6
  • 92075
    92075-1011 DAMPER, 6X16X7
    DAMPER, 6X16X7
  • 92075A
    92075-1690 DAMPER, 10X24X12
    DAMPER, 10X24X12
  • 92093
    92093-1030 SEAL, FUEL TANK CAP
    SEAL, FUEL TANK CAP
  • 92152
    92152-0091 COLLAR, 6.3X10X14.5
    COLLAR, 6.3X10X14.5
  • 92152A
    92152-1182 COLLAR, 6.8X10X60
    COLLAR, 6.8X10X60
  • 92152B
    92152-2495 COLLAR, 6.5X16X4.6
    COLLAR, 6.5X16X4.6
  • 92153
    92153-1616 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154
    92154-0209 BOLT, SOCKET, 5X16
    BOLT, SOCKET, 5X16
  • 92154A
    92154-1856 BOLT, FLANGED, 5X12
    BOLT, FLANGED, 5X12
  • 92154B
    92154-2234 BOLT, SOCKET, 6X22
    BOLT, SOCKET, 6X22
  • 92154C
    92154-2706 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92161
    92161-0365 DAMPER
    DAMPER
  • 92161A
    92161-1737 DAMPER, FUEL TANK
    DAMPER, FUEL TANK
  • 92161B
    92161-2181 DAMPER, LEFT HAND
    DAMPER, LEFT HAND
  • 92161C
    92161-2182 DAMPER, RIGHT HAND
    DAMPER, RIGHT HAND
  • 92192
    92192-1669 TUBE, DRAIN, 6X9X808
    TUBE, DRAIN, 6X9X808
  • 92200
    92200-0006 WASHER, NYLONE, 5.3X11.5X0.5
    WASHER, NYLONE, 5.3X11.5X0.5
  • 92200A
    92200-1087 WASHER, 6.5X22X1.6
    WASHER, 6.5X22X1.6
  • 92200B
    92200-1820 WASHER, 5.2X10X1.0
    WASHER, 5.2X10X1.0
