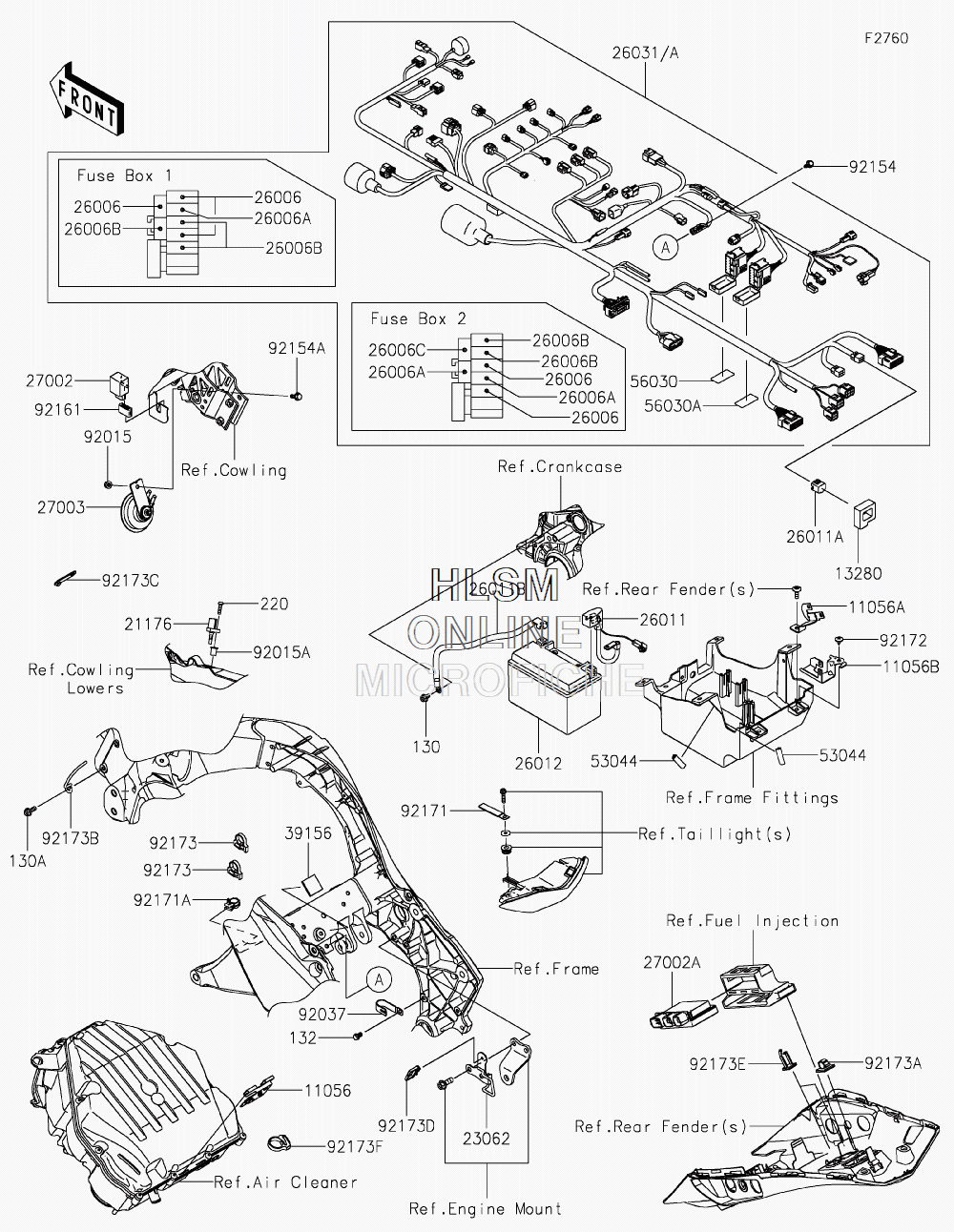

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki NINJA 1000 ABS (ZX1000WKF) - 2019 года выпуска

  • №
    Артикул
    Название
  • 11056
    11056-2434 BRACKET, SPEED SENSOR
    BRACKET, SPEED SENSOR
  • 11056A
    11056-2992 BRACKET, REAR SIGNAL
    BRACKET, REAR SIGNAL
  • 11056B
    11056-3924 BRACKET, BATTERY(+)
    BRACKET, BATTERY(+)
  • 130
    130BA0610 BOLT-FLANGED, 6X10
    BOLT-FLANGED, 6X10
  • 130A
    130BB0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 132
    132BA0610 BOLT-FLANGED-SMALL, 6X10
    BOLT-FLANGED-SMALL, 6X10
  • 13280
    13280-0907 HOLDER
    HOLDER
  • 21176
    21176-0048 SENSOR, AIR TEMPERATURE
    SENSOR, AIR TEMPERATURE
  • 220
    220AB0518 SCREW-PAN-CROS, 5X18
    SCREW-PAN-CROS, 5X18
  • 23062
    23062-0811 BRACKET-COMP, CABLE GUIDE
    BRACKET-COMP, CABLE GUIDE
  • 26006
    26006-0001 FUSE, MINI BLADE, 15A, (BLUE)
    FUSE, MINI BLADE, 15A, (BLUE)
  • 26006A
    26006-0020 FUSE, MINI BLADE, 25A, (NATURAL)
    FUSE, MINI BLADE, 25A, (NATURAL)
  • 26006B
    26006-0055 FUSE, MINI BLADE, 7.5A, (BROWN)
    FUSE, MINI BLADE, 7.5A, (BROWN)
  • 26006C
    26006-1080 FUSE, MINI BLADE, 30A, (GREEN)
    FUSE, MINI BLADE, 30A, (GREEN)
  • 26011
    26011-0252 WIRE-LEAD, BATTERY(+)
    WIRE-LEAD, BATTERY(+)
  • 26011A
    26011-0275 WIRE-LEAD, CONNECTOR COVER
    WIRE-LEAD, CONNECTOR COVER
  • 26011B
    26011-0822 WIRE-LEAD, BATTERY(-)
    WIRE-LEAD, BATTERY(-)
  • 26012
    26012-0838 BATTERY, YTX9-BS, 12V 8AH
    BATTERY, YTX9-BS, 12V 8AH
  • 26031
    26031-2301 HARNESS, MAIN (EXCEPT CALIF.)
    HARNESS, MAIN (EXCEPT CALIF.)
  • 26031A
    26031-2302 HARNESS, MAIN (CALIF. ONLY)
    HARNESS, MAIN (CALIF. ONLY)
  • 27002
    27002-0006 RELAY-ASSY, SIGNAL LAMP
    RELAY-ASSY, SIGNAL LAMP
  • 27002A
    27002-0025 RELAY-ASSY, BOX
    RELAY-ASSY, BOX
  • 27003
    27003-0126 HORN
    HORN
  • 39156
    39156-1766 PAD, 30X30X3
    PAD, 30X30X3
  • 53044
    53044-0001 TRIM, L=30
    TRIM, L=30
  • 56030
    56030-0878 LABEL, FUSE BOX2
    LABEL, FUSE BOX2
  • 56030A
    56030-0985 LABEL, FUSE BOX1
    LABEL, FUSE BOX1
  • 92015
    92015-1367 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92037
    92037-2014 CLAMP, CABLE, STEEL SHEET
    CLAMP, CABLE, STEEL SHEET
  • 92154
    92154-0551 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 92154A
    92154-1851 BOLT, FLANGED, 6X16
    BOLT, FLANGED, 6X16
  • 92161
    92161-0283 DAMPER, SIGNAL RELAY
    DAMPER, SIGNAL RELAY
  • 92171
    92171-0652 CLAMP, L=60
    CLAMP, L=60
  • 92171A
    92171-1722 CLAMP, EDGE CLIP
    CLAMP, EDGE CLIP
  • 92172
    92172-0003 SCREW, TAPPING, 6X12
    SCREW, TAPPING, 6X12
  • 92173
    92173-0970 CLAMP, SNAPPER
    CLAMP, SNAPPER
  • 92173A
    92173-1055 CLAMP, DRAIN
    CLAMP, DRAIN
  • 92173B
    92173-1199 CLAMP, IRON WIRE
    CLAMP, IRON WIRE
  • 92173C
    92173-1229 CLAMP, RUBBER PLATE
    CLAMP, RUBBER PLATE
  • 92173D
    92173-1242 CLAMP, CABLE CLIP
    CLAMP, CABLE CLIP
  • 92173E
    92173-1269 CLAMP, LOCKING WIRE SADDLE
    CLAMP, LOCKING WIRE SADDLE
  • 92173F
    92173-1632 CLAMP, SNP-22-0W
    CLAMP, SNP-22-0W
