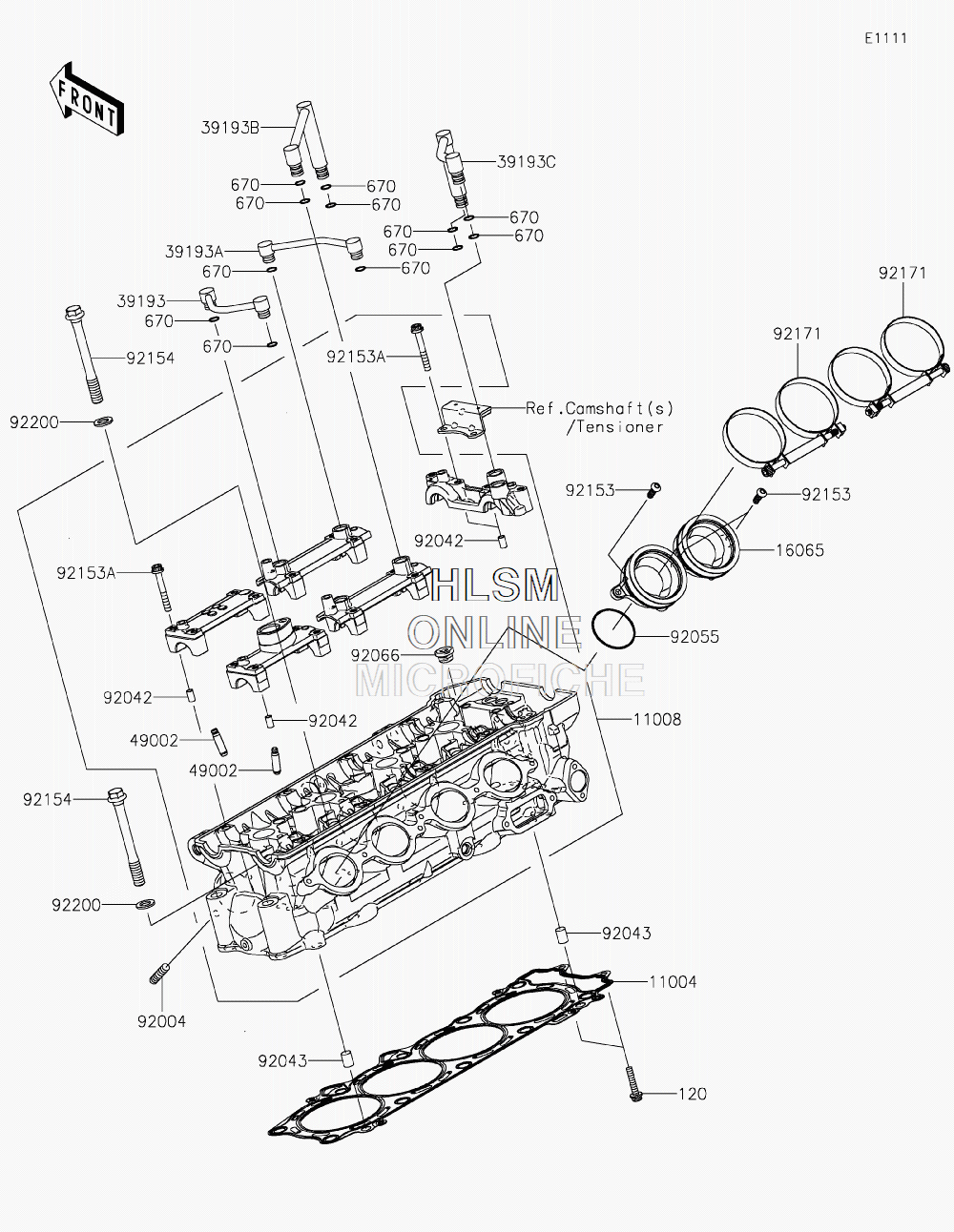

CYLINDER HEAD для Kawasaki CONCOURS 14 ABS (ZG1400EKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1100411004-0059 GASKET-HEADGASKET-HEAD
-
1100811008-0853 HEAD-COMP-CYLINDERHEAD-COMP-CYLINDER
-
120120CD0630 BOLT-SOCKET, 6X30BOLT-SOCKET, 6X30
-
1606516065-0040 HOLDER-CARBURETORHOLDER-CARBURETOR
-
3919339193-0040 PIPE-OILPIPE-OIL
-
39193A39193-0042 PIPE-OILPIPE-OIL
-
39193B39193-0058 PIPE-OILPIPE-OIL
-
39193C39193-0059 PIPE-OILPIPE-OIL
-
4900249002-0014 GUIDE-VALVEGUIDE-VALVE
-
670670D1509 O RING, 9MMO RING, 9MM
-
9200492004-0050 STUDSTUD
-
9204292042-007 PIN, DOWEL, 6.3X8X14PIN, DOWEL, 6.3X8X14
-
9204392043-1264 PIN, 8.2X10X14PIN, 8.2X10X14
-
9205592055-1600 RING-O, 47X1.9RING-O, 47X1.9
-
9206692066-0016 PLUG, 18X10PLUG, 18X10
-
9215392153-0454 BOLT, TORX, 6X18BOLT, TORX, 6X18
-
92153A92153-0656 BOLT, SOCKET, 6X45BOLT, SOCKET, 6X45
-
9215492154-1625 BOLT, 11X98BOLT, 11X98
-
9217192171-1892 CLAMPCLAMP
-
9220092200-0940 WASHER, 11.2X18.2X1.8WASHER, 11.2X18.2X1.8
