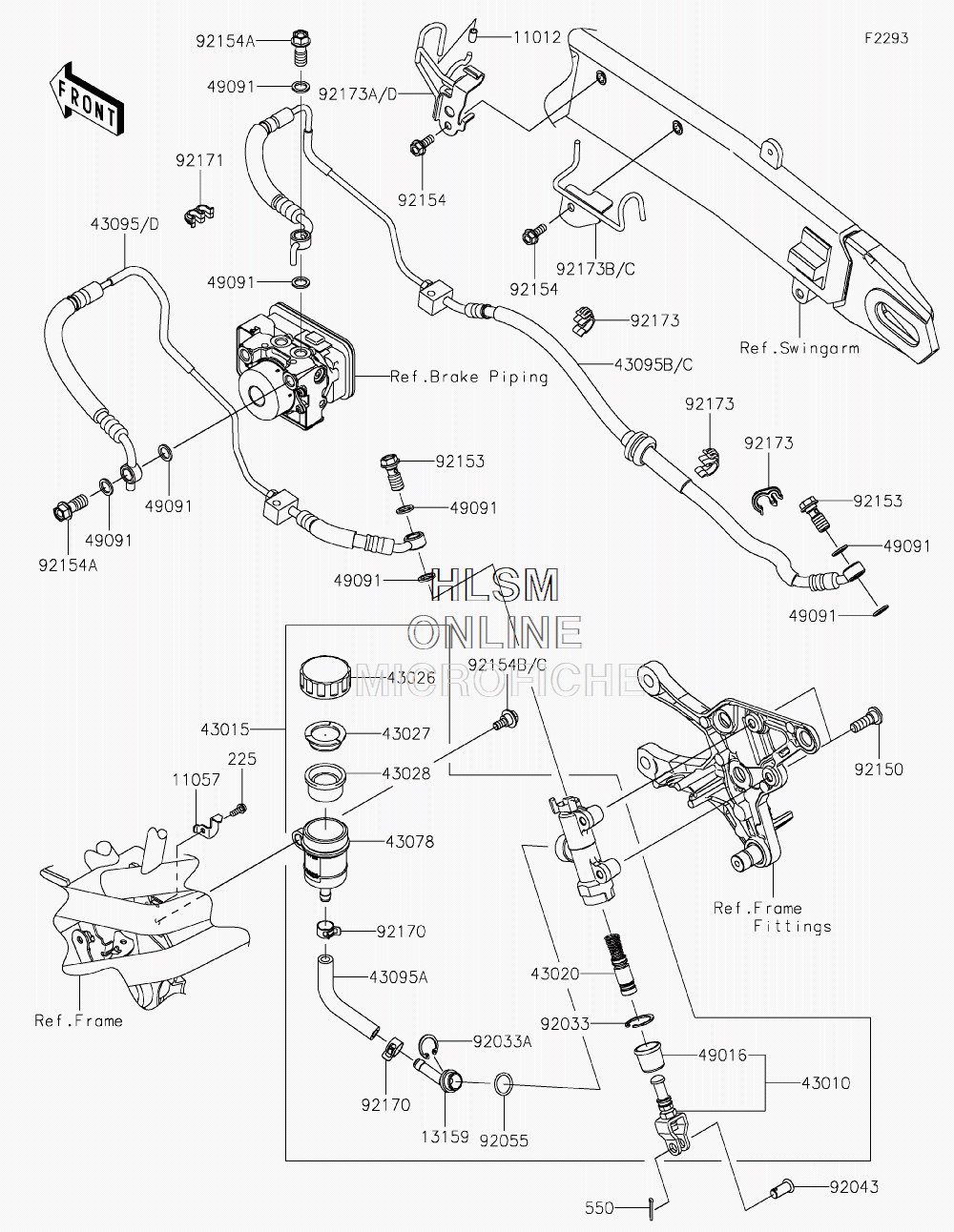

BRAKE - MASTER CYLINDER - REAR для Kawasaki Z900 ABS (ZR900BJF) - 2018 года выпуска`
-
№АртикулНазвание
-
1101211012-1438 CAPCAP
-
1105711057-0258 BRACKETBRACKET
-
1315913159-0008 CONNECTORCONNECTOR
-
225225AB0412 SCREW-PAN-WSP-CROS, 4X12SCREW-PAN-WSP-CROS, 4X12
-
4301043010-0020 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0650 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4307843078-0060 RESERVOIRRESERVOIR
-
4309543095-1426 HOSE-BRAKE, REAR M/CYL.-ABS UNITHOSE-BRAKE, REAR M/CYL.-ABS UNIT
-
43095A43095-1432 HOSE-BRAKE, REAR M/CYL.HOSE-BRAKE, REAR M/CYL.
-
43095B43095-1494 HOSE-BRAKE, ABS UNIT-REAR CALIPERHOSE-BRAKE, ABS UNIT-REAR CALIPER
-
4901649016-1103 COVER-SEAL, BRAKE PISTONCOVER-SEAL, BRAKE PISTON
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0904 PINPIN
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9215092150-1837 BOLT, SOCKET, 8X25BOLT, SOCKET, 8X25
-
9215392153-0627 BOLT, OIL, L=23BOLT, OIL, L=23
-
9215492154-1055 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154A92154-1138 BOLT, BANJO, 10X22BOLT, BANJO, 10X22
-
92154B92154-2685 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-0817 CLAMPCLAMP
-
9217392173-1613 CLAMP, HOSE & SENSOR LINECLAMP, HOSE & SENSOR LINE
-
92173A92173-1640 CLAMP, SWA, FRONTCLAMP, SWA, FRONT
-
92173B92173-1768 CLAMP, SWA, REARCLAMP, SWA, REAR
