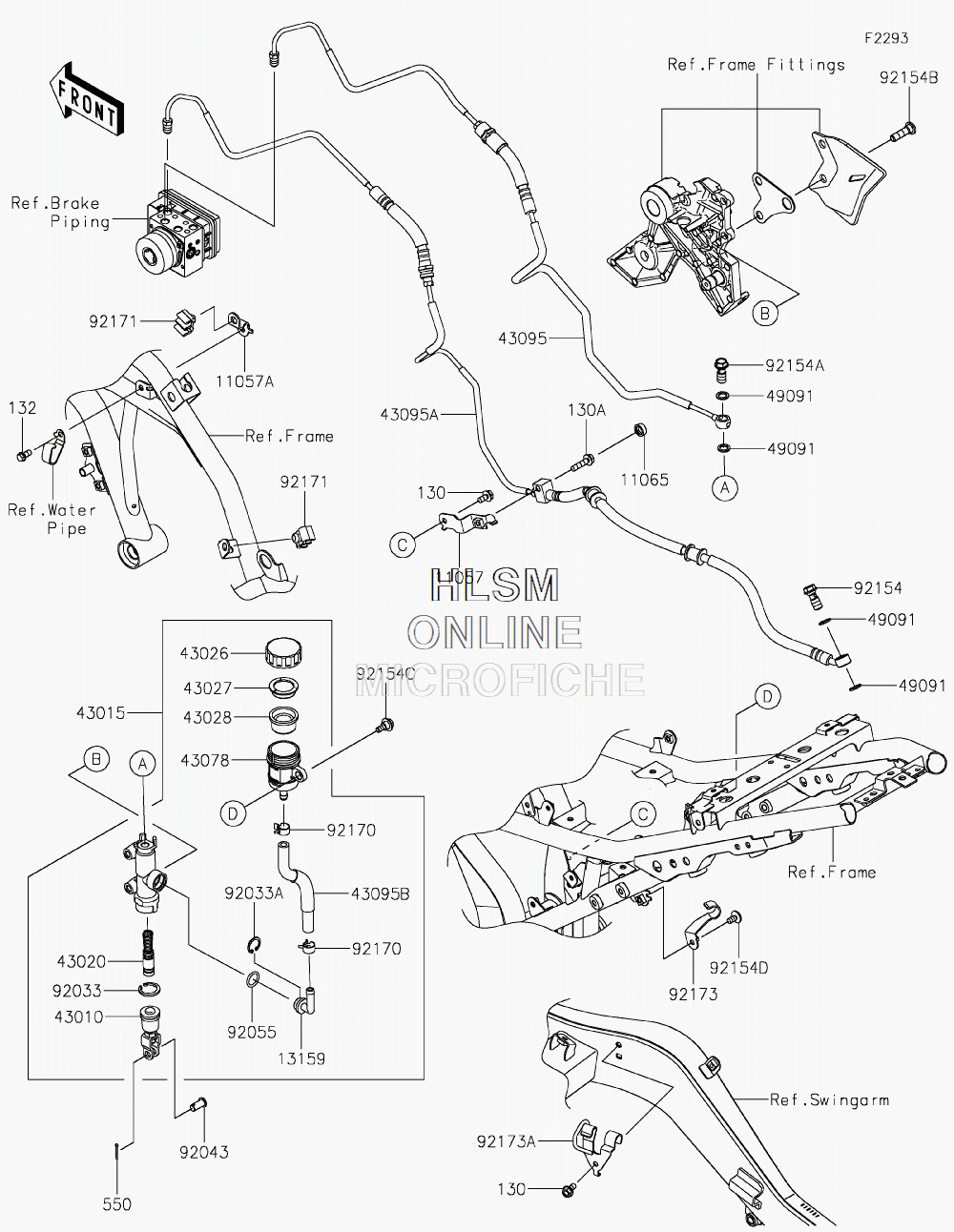

BRAKE - MASTER CYLINDER - REAR для Kawasaki Z650 ABS (ER650HJF) - 2018 года выпуска`
-
№АртикулНазвание
-
1105711057-0161 BRACKET, ABS JOINTBRACKET, ABS JOINT
-
11057A11057-0166 BRACKET, FRONT ABS PIPEBRACKET, FRONT ABS PIPE
-
1106511065-0752 CAP, BOLTCAP, BOLT
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA0625 BOLT-FLANGED, 6X25BOLT-FLANGED, 6X25
-
1315913159-1056 CONNECTORCONNECTOR
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
4301043010-1062 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0646 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-1094 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4307843078-0060 RESERVOIRRESERVOIR
-
4309543095-0961 HOSE-BRAKE, REAR M/CYL.-ABS UNITHOSE-BRAKE, REAR M/CYL.-ABS UNIT
-
43095A43095-0962 HOSE-BRAKE, ABS UNIT-REAR CAL.HOSE-BRAKE, ABS UNIT-REAR CAL.
-
43095B43095-0969 HOSE-BRAKE, REAR M/CYL.HOSE-BRAKE, REAR M/CYL.
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0182 PINPIN
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9215492154-0226 BOLT, OIL, L=23BOLT, OIL, L=23
-
92154A92154-0732 BOLT, FLANGED, 10X23BOLT, FLANGED, 10X23
-
92154B92154-0843 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
92154C92154-0929 BOLTBOLT
-
92154D92154-0951 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217192171-0818 CLAMPCLAMP
-
9217392173-1604 CLAMP, REAR BRAKE HOSECLAMP, REAR BRAKE HOSE
-
92173A92173-1665 CLAMP, SWING ARMCLAMP, SWING ARM
