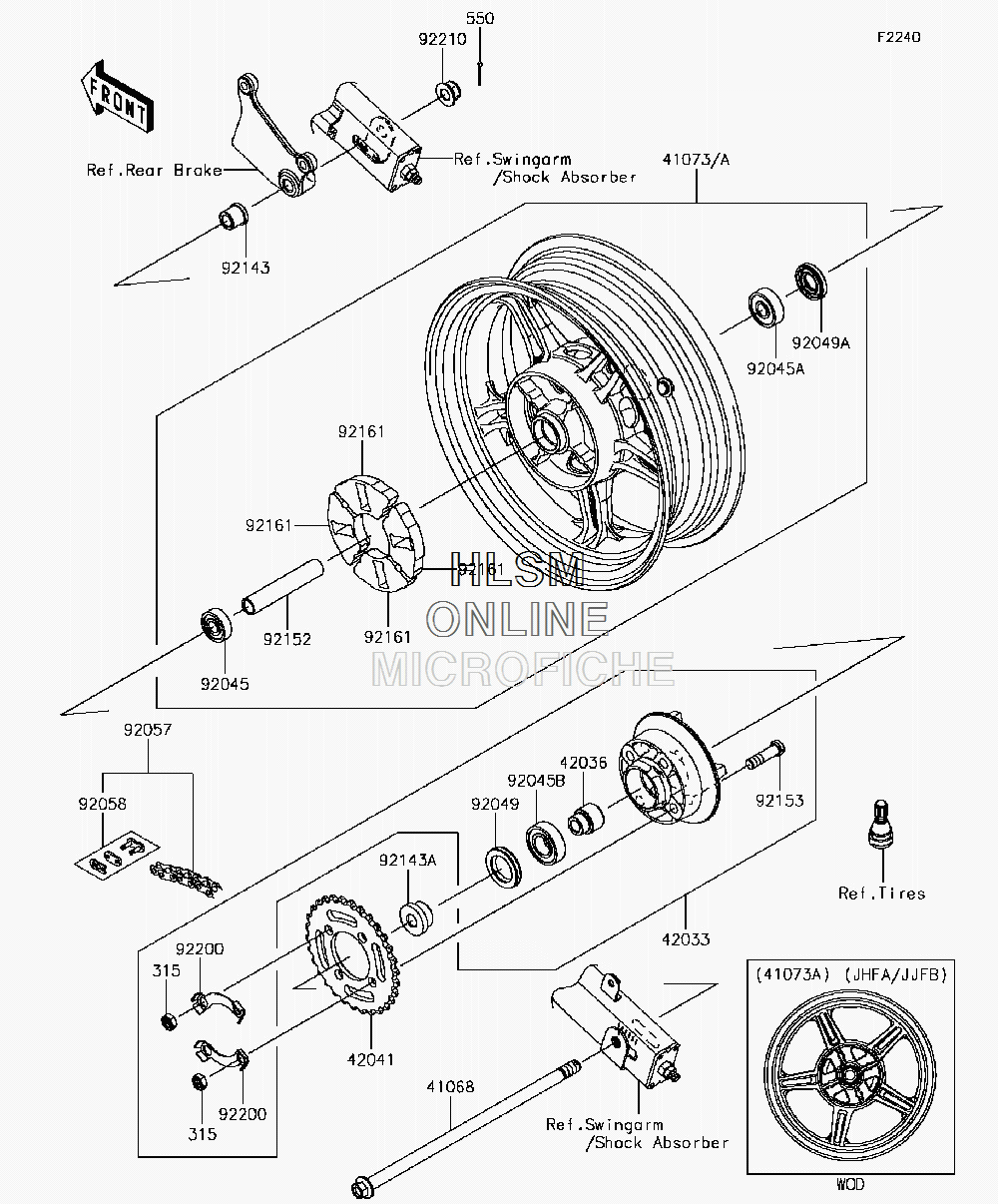

WHEEL - REAR W/ CHAIN для Kawasaki Z125 PRO SE (BR125JJFA) - 2018 года выпуска
-
№АртикулНазвание
-
315315BA1000 NUT-HEX-FINE, 10MMNUT-HEX-FINE, 10MM
-
4106841068-0610 AXLE, 12X290AXLE, 12X290
-
4107341073-0673-36C WHEEL-ASSY, REAR, (GOLD) (FOR 723)WHEEL-ASSY, REAR, (GOLD) (FOR 723)
-
4203342033-0575 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1292 SLEEVE, REAR HUB COUPLING, L=29SLEEVE, REAR HUB COUPLING, L=29
-
4204142041-0154 SPROCKET-HUB, 30TSPROCKET-HUB, 30T
-
550550AA2520 PIN-COTTER, 2.5X20PIN-COTTER, 2.5X20
-
9204592045-0161 BEARING-BALL, 6201-LLEFT HANDC3P6BEARING-BALL, 6201-LLEFT HANDC3P6
-
92045A92045-0162 BEARING-BALL, 6301-LLEFT HANDC3P6BEARING-BALL, 6301-LLEFT HANDC3P6
-
92045B92045-0163 BEARING-BALL, 6004-LUC3P6BEARING-BALL, 6004-LUC3P6
-
9204992049-1490 SEAL-OIL, SC26X42X8SEAL-OIL, SC26X42X8
-
92049A92049-1491 SEAL-OIL, KCY19X37X7SEAL-OIL, KCY19X37X7
-
9205792057-0204 CHAIN, DRIVE, DID420ADCHAIN, DRIVE, DID420AD
-
9205892058-0026 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9214392143-1420 COLLAR, REAR AXLE, L=19COLLAR, REAR AXLE, L=19
-
92143A92143-1533 COLLAR, REAR AXLE, LEFT HAND, L=17COLLAR, REAR AXLE, LEFT HAND, L=17
-
9215292152-2140 COLLAR, 12.7X17.3X94.5COLLAR, 12.7X17.3X94.5
-
9215392153-1120 BOLT, 10X36BOLT, 10X36
-
9216192161-0084 DAMPER, REAR HUB SHOCKDAMPER, REAR HUB SHOCK
-
9220092200-0903 WASHER, LOCKWASHER, LOCK
-
9221092210-1513 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
