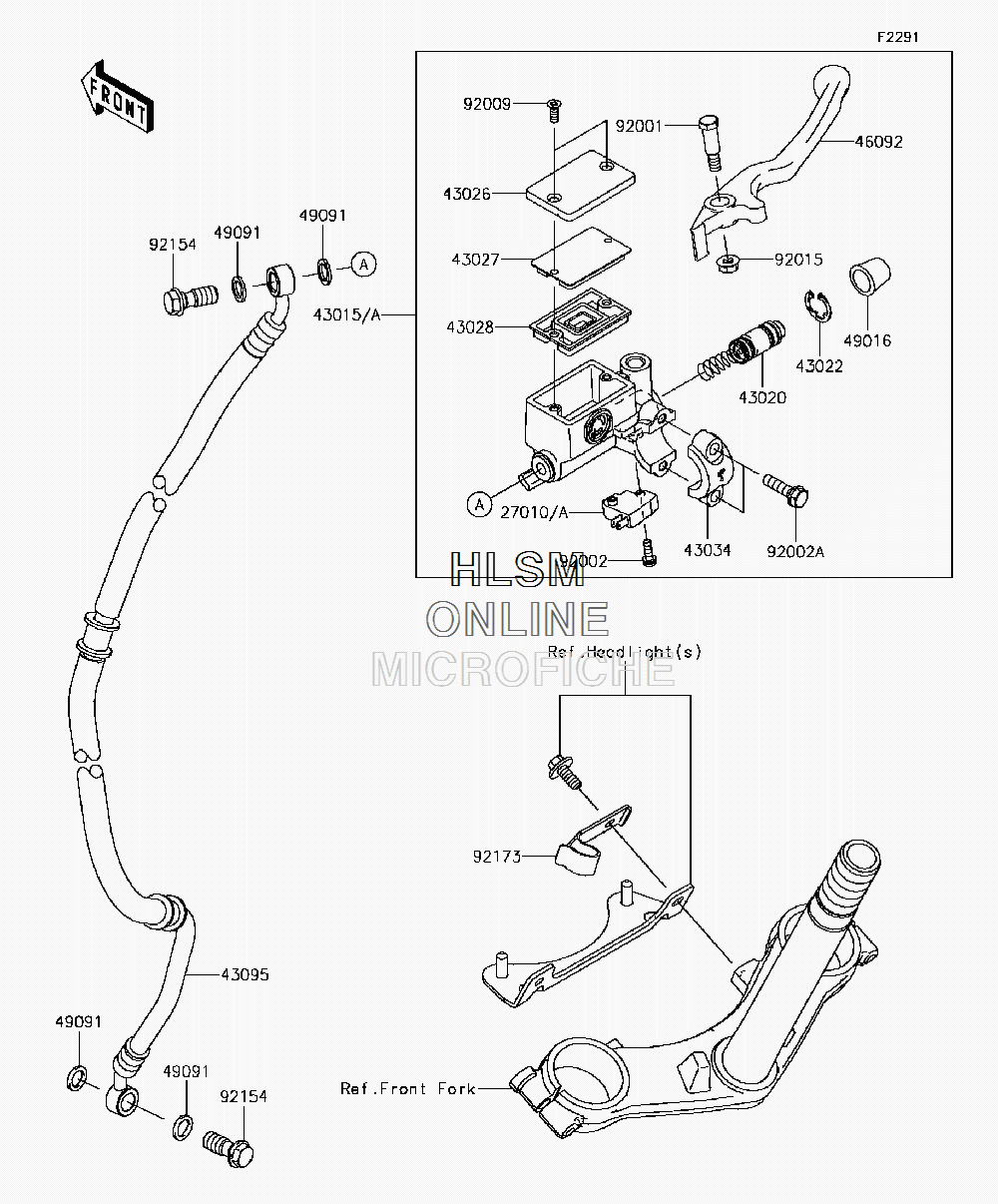

BRAKE - MASTER CYLINDER - FRONT для Kawasaki Z125 PRO KRT EDITION (BR125JJFB) - 2018 года выпуска`
-
№АртикулНазвание
-
27010A27010-0762 SWITCH, BRAKESWITCH, BRAKE
-
43015A43015-0680 CYLINDER-ASSY-MASTERCYLINDER-ASSY-MASTER
-
4302043020-1095 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302243022-1010 STOPPER-BRAKE, PISTONSTOPPER-BRAKE, PISTON
-
4302643026-1082 CAP-BRAKECAP-BRAKE
-
4302743027-1057 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1061 DIAPHRAGMDIAPHRAGM
-
4303443034-1016 HOLDER-BRAKE, MASTER CYLINDERHOLDER-BRAKE, MASTER CYLINDER
-
4309543095-0903 HOSE-BRAKE, FRONT, 807MMHOSE-BRAKE, FRONT, 807MM
-
4609246092-0553 LEVER-GRIP, FRONT BRAKELEVER-GRIP, FRONT BRAKE
-
4901649016-1044 COVER-SEAL, MASTER CYLINDERCOVER-SEAL, MASTER CYLINDER
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
9200192001-1728 BOLT, FRONT BRAKE LEVERBOLT, FRONT BRAKE LEVER
-
9200292002-1323 BOLT, SCREW, 4X12BOLT, SCREW, 4X12
-
92002A92002-1894 BOLTBOLT
-
9200992009-1458 SCREW, 4MMSCREW, 4MM
-
9201592015-1233 NUT, FLANGED, 6MM, (BLACK)NUT, FLANGED, 6MM, (BLACK)
-
9215492154-0830 BOLT, OIL, 10X23BOLT, OIL, 10X23
-
9217392173-1541 CLAMPCLAMP
