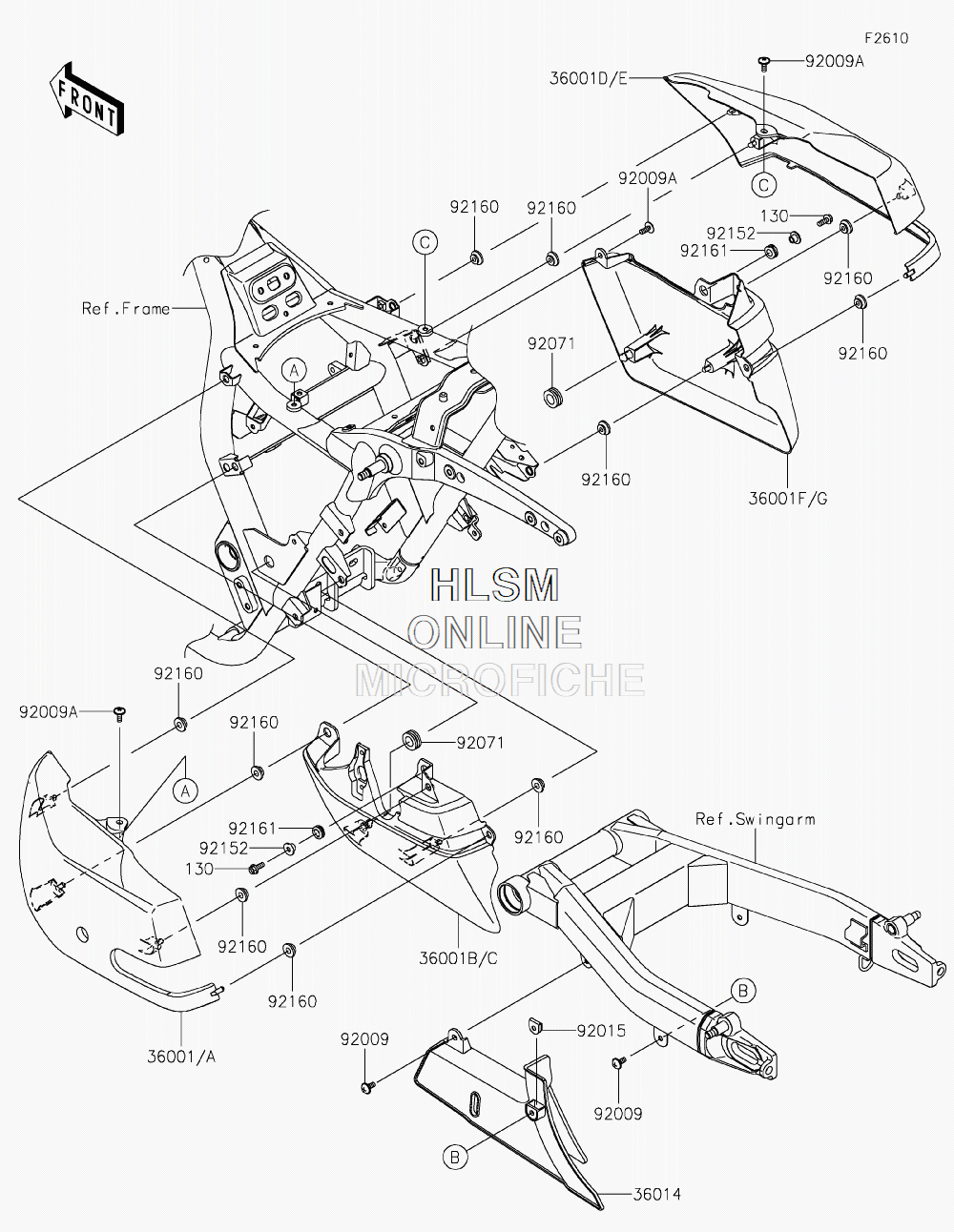

SIDE COVERS W/ CHAIN COVER для Kawasaki VULCAN 1700 VOYAGER ABS (VN1700BJF) - 2018 года выпуска
-
№АртикулНазвание
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
36001A36001-0139-L1 COVER-SIDE, LEFT HAND, UPPER, (C.C.RED)COVER-SIDE, LEFT HAND, UPPER, (C.C.RED)
-
36001C36001-0140-C4 COVER-SIDE, LEFT HAND, LOWER, (M.GRAYSTONECOVER-SIDE, LEFT HAND, LOWER, (M.GRAYSTONE
-
36001E36001-0141-L1 COVER-SIDE, RIGHT HAND, UPPER, (C.C.RED)COVER-SIDE, RIGHT HAND, UPPER, (C.C.RED)
-
36001G36001-0142-C4 COVER-SIDE, RIGHT HAND, LOWER, (M.GRAYSTONECOVER-SIDE, RIGHT HAND, LOWER, (M.GRAYSTONE
-
3601436014-0042 CASE-CHAINCASE-CHAIN
-
9200992009-1555 SCREW, 6X14SCREW, 6X14
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1904 NUT, CLIP, 6MMNUT, CLIP, 6MM
-
9207192071-1131 GROMMETGROMMET
-
9215292152-0295 COLLARCOLLAR
-
9216092160-1613 DAMPERDAMPER
-
9216192161-0266 DAMPERDAMPER
