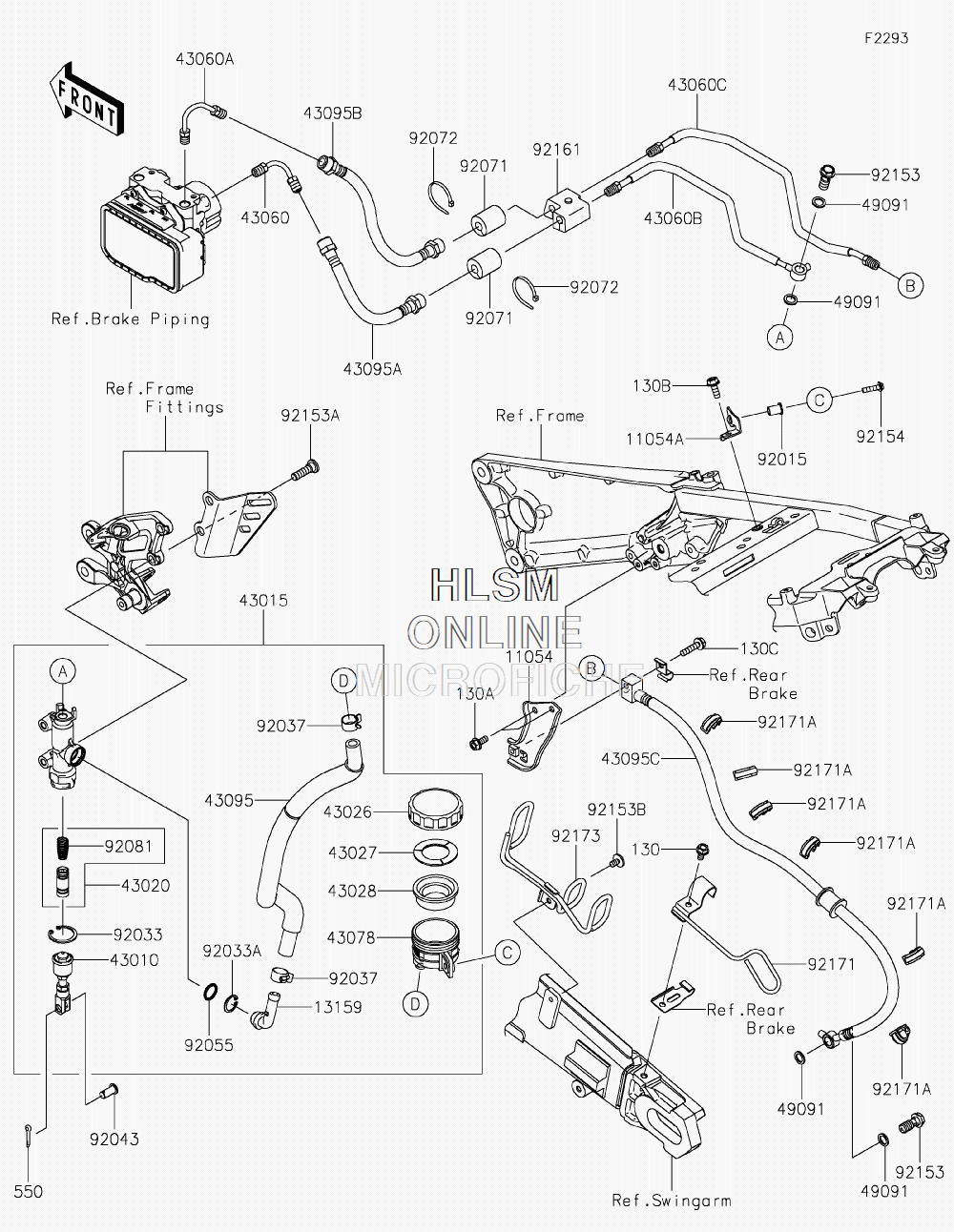

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA ZX-14R ABS SE (ZX1400JJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 11054
    11054-0060 BRACKET, HOSE JOINT
    BRACKET, HOSE JOINT
  • 11054A
    11054-0184 BRACKET, RESERVOIR TANK, REAR
    BRACKET, RESERVOIR TANK, REAR
  • 130
    130BA0612 BOLT-FLANGED, 6X12
    BOLT-FLANGED, 6X12
  • 130A
    130BA0614 BOLT-FLANGED, 6X14
    BOLT-FLANGED, 6X14
  • 130B
    130BA0616 BOLT-FLANGED, 6X16
    BOLT-FLANGED, 6X16
  • 130C
    130BB0625 BOLT-FLANGED, 6X25
    BOLT-FLANGED, 6X25
  • 13159
    13159-1052 CONNECTOR, REAR MASTER CYLINDER
    CONNECTOR, REAR MASTER CYLINDER
  • 43010
    43010-0012 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-0584 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-1057 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-1051 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1051 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1057 DIAPHRAGM, MASTER CYLINDER
    DIAPHRAGM, MASTER CYLINDER
  • 43060
    43060-0014 PIPE-BRAKE, HU-M/CYLINDER
    PIPE-BRAKE, HU-M/CYLINDER
  • 43060A
    43060-0019 PIPE-BRAKE, HU-REAR CALIPER
    PIPE-BRAKE, HU-REAR CALIPER
  • 43060B
    43060-0020 PIPE-BRAKE, HU-REAR M/CYLINDER
    PIPE-BRAKE, HU-REAR M/CYLINDER
  • 43060C
    43060-0061 PIPE-BRAKE, HU-REAR CALIPER
    PIPE-BRAKE, HU-REAR CALIPER
  • 43078
    43078-1082 RESERVOIR, REAR MASTER CYLINDER
    RESERVOIR, REAR MASTER CYLINDER
  • 43095
    43095-0235 HOSE-BRAKE, REAR MASTER CYLINDER
    HOSE-BRAKE, REAR MASTER CYLINDER
  • 43095A
    43095-0612 HOSE-BRAKE, REAR M/CYL.-HU
    HOSE-BRAKE, REAR M/CYL.-HU
  • 43095B
    43095-0613 HOSE-BRAKE, HU-REAR CALIPER
    HOSE-BRAKE, HU-REAR CALIPER
  • 43095C
    43095-0614 HOSE-BRAKE, HU-REAR CALIPER
    HOSE-BRAKE, HU-REAR CALIPER
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 550
    550AA2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 92015
    92015-1757 NUT, WELL, 5MM
    NUT, WELL, 5MM
  • 92033
    92033-0079 RING-SNAP, 20.9X24.6X1.2
    RING-SNAP, 20.9X24.6X1.2
  • 92033A
    92033-1186 RING-SNAP, 20.5MM
    RING-SNAP, 20.5MM
  • 92037
    92037-1547 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92043
    92043-0104 PIN, 8X17
    PIN, 8X17
  • 92055
    92055-0741 RING-O, 14.8X2.4
    RING-O, 14.8X2.4
  • 92071
    92071-1143 GROMMET
    GROMMET
  • 92072
    92072-3768 BAND, L=148
    BAND, L=148
  • 92081
    92081-1737 SPRING, MASTER CYLINDER
    SPRING, MASTER CYLINDER
  • 92153
    92153-0627 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92153A
    92153-1624 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92153B
    92153-1628 BOLT, SOCKET, 6X10
    BOLT, SOCKET, 6X10
  • 92154
    92154-0829 BOLT, SOCKET, 5X20
    BOLT, SOCKET, 5X20
  • 92161
    92161-0314 DAMPER, HOSE CLAMP
    DAMPER, HOSE CLAMP
  • 92171
    92171-0553 CLAMP, BRAKE HOSE, REAR
    CLAMP, BRAKE HOSE, REAR
  • 92171A
    92171-1819 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92173
    92173-0989 CLAMP
    CLAMP
