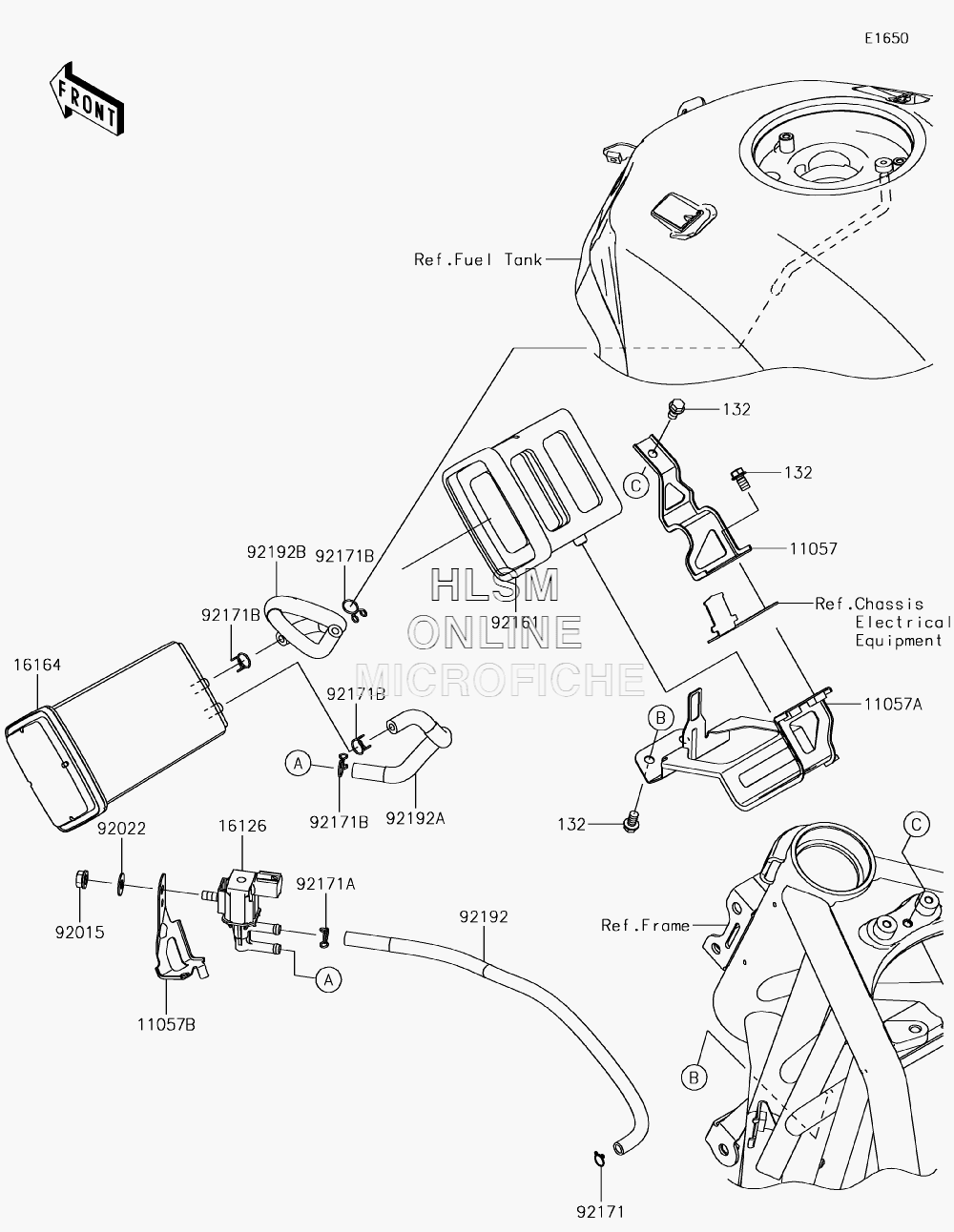

FUEL EVAPORATIVE SYSTEM (CALIF. ONLY) для Kawasaki NINJA H2 SX (ZX1002AJF) - 2018 года выпуска

  • №
    Артикул
    Название
  • 11057
    11057-1201 BRACKET, CANISTER, UPPER
    BRACKET, CANISTER, UPPER
  • 11057A
    11057-1202 BRACKET, CANISTER, LOWER
    BRACKET, CANISTER, LOWER
  • 11057B
    11057-1204 BRACKET, PVC VALVE
    BRACKET, PVC VALVE
  • 132
    132BA0610 BOLT-FLANGED-SMALL, 6X10
    BOLT-FLANGED-SMALL, 6X10
  • 16126
    16126-0731 VALVE, PCV
    VALVE, PCV
  • 16164
    16164-0012 CANISTER
    CANISTER
  • 92015
    92015-1367 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92022
    92022-1093 WASHER, 6.5X16X1.0
    WASHER, 6.5X16X1.0
  • 92161
    92161-1715 DAMPER, CANISTER
    DAMPER, CANISTER
  • 92171
    92171-0573 CLAMP
    CLAMP
  • 92171A
    92171-0576 CLAMP
    CLAMP
  • 92171B
    92171-0718 CLAMP
    CLAMP
  • 92192
    92192-1830 TUBE, THROTTLE BODY-PVC VALVE
    TUBE, THROTTLE BODY-PVC VALVE
  • 92192A
    92192-1831 TUBE, CANISTER-PVC VALVE
    TUBE, CANISTER-PVC VALVE
  • 92192B
    92192-1832 TUBE, CANISTER-FUEL TANK
    TUBE, CANISTER-FUEL TANK
