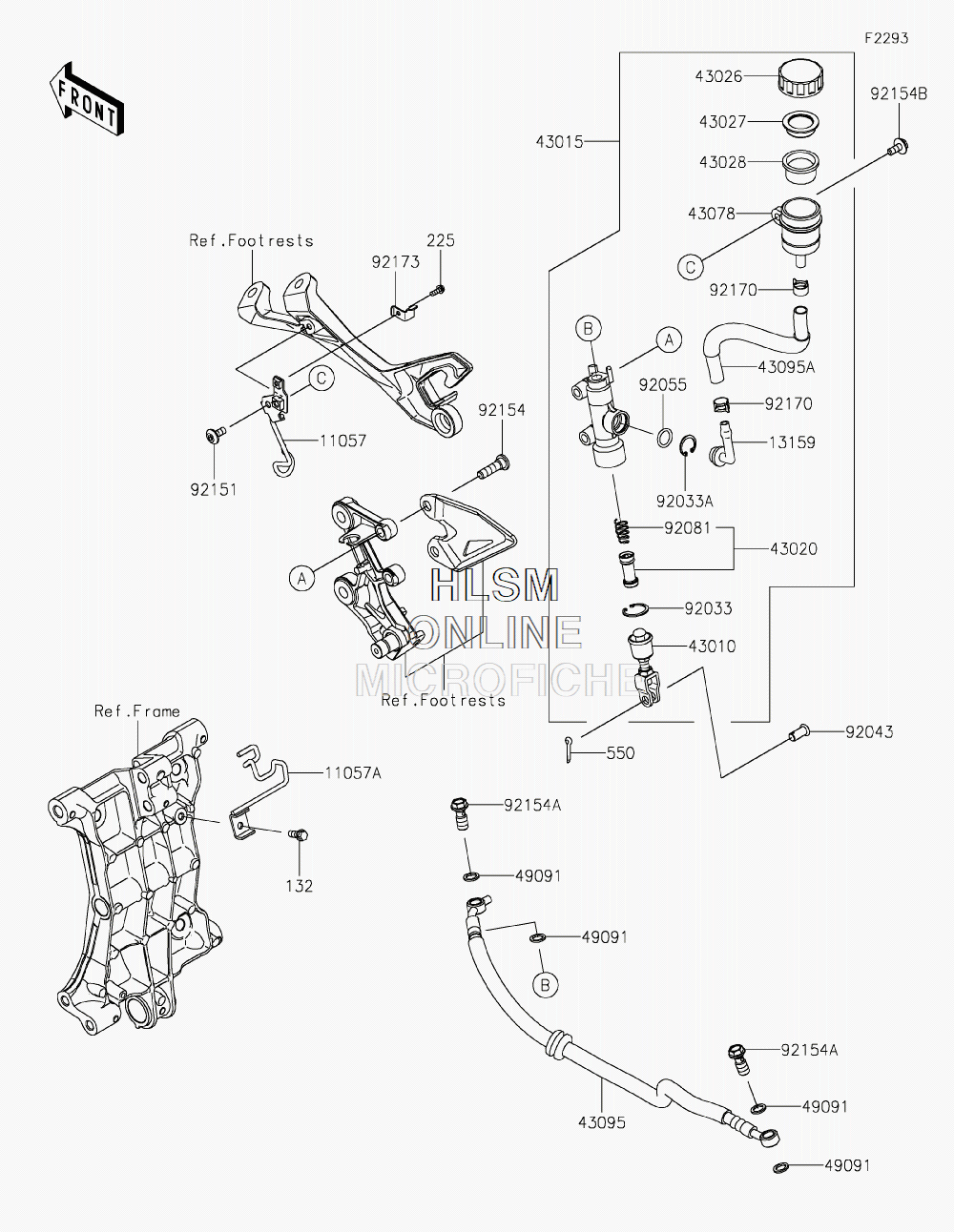

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA 400 (EX400HJFA) - 2018 года выпуска

  • №
    Артикул
    Название
  • 11057
    11057-1101 BRACKET, REAR RESERVOIR
    BRACKET, REAR RESERVOIR
  • 11057A
    11057-1105 BRACKET, PIVOT BRACKET
    BRACKET, PIVOT BRACKET
  • 13159
    13159-1056 CONNECTOR
    CONNECTOR
  • 132
    132BC0614 BOLT-FLANGED-SMALL, 6X14
    BOLT-FLANGED-SMALL, 6X14
  • 225
    225AB0412 SCREW-PAN-WSP-CROS, 4X12
    SCREW-PAN-WSP-CROS, 4X12
  • 43010
    43010-0022 ROD-ASSY-BRAKE
    ROD-ASSY-BRAKE
  • 43015
    43015-0667 CYLINDER-ASSY-MASTER, REAR
    CYLINDER-ASSY-MASTER, REAR
  • 43020
    43020-0023 PISTON-COMP-BRAKE
    PISTON-COMP-BRAKE
  • 43026
    43026-0009 CAP-BRAKE
    CAP-BRAKE
  • 43027
    43027-1053 PLATE-DIAPHRAGM
    PLATE-DIAPHRAGM
  • 43028
    43028-1065 DIAPHRAGM
    DIAPHRAGM
  • 43078
    43078-0040 RESERVOIR
    RESERVOIR
  • 43095
    43095-1492 HOSE-BRAKE, REAR M/CYL.-REAR CAL.
    HOSE-BRAKE, REAR M/CYL.-REAR CAL.
  • 43095A
    43095-1495 HOSE-BRAKE, REAR RESERVOIR
    HOSE-BRAKE, REAR RESERVOIR
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 550
    550AA2015 PIN-COTTER, 2.0X15
    PIN-COTTER, 2.0X15
  • 92033
    92033-0079 RING-SNAP, 20.9X24.6X1.2
    RING-SNAP, 20.9X24.6X1.2
  • 92033A
    92033-1186 RING-SNAP, 20.5MM
    RING-SNAP, 20.5MM
  • 92043
    92043-0904 PIN
    PIN
  • 92055
    92055-0741 RING-O, 14.8X2.4
    RING-O, 14.8X2.4
  • 92081
    92081-1737 SPRING, MASTER CYLINDER
    SPRING, MASTER CYLINDER
  • 92151
    92151-1654 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92154
    92154-0843 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92154A
    92154-1712 BOLT, BANJO, 10X23
    BOLT, BANJO, 10X23
  • 92154B
    92154-2244 BOLT, UPSET-WP, 6X16
    BOLT, UPSET-WP, 6X16
  • 92170
    92170-1091 CLAMP, HOSE
    CLAMP, HOSE
  • 92173
    92173-0028 CLAMP, RESERVOIR TANK CAP
    CLAMP, RESERVOIR TANK CAP
