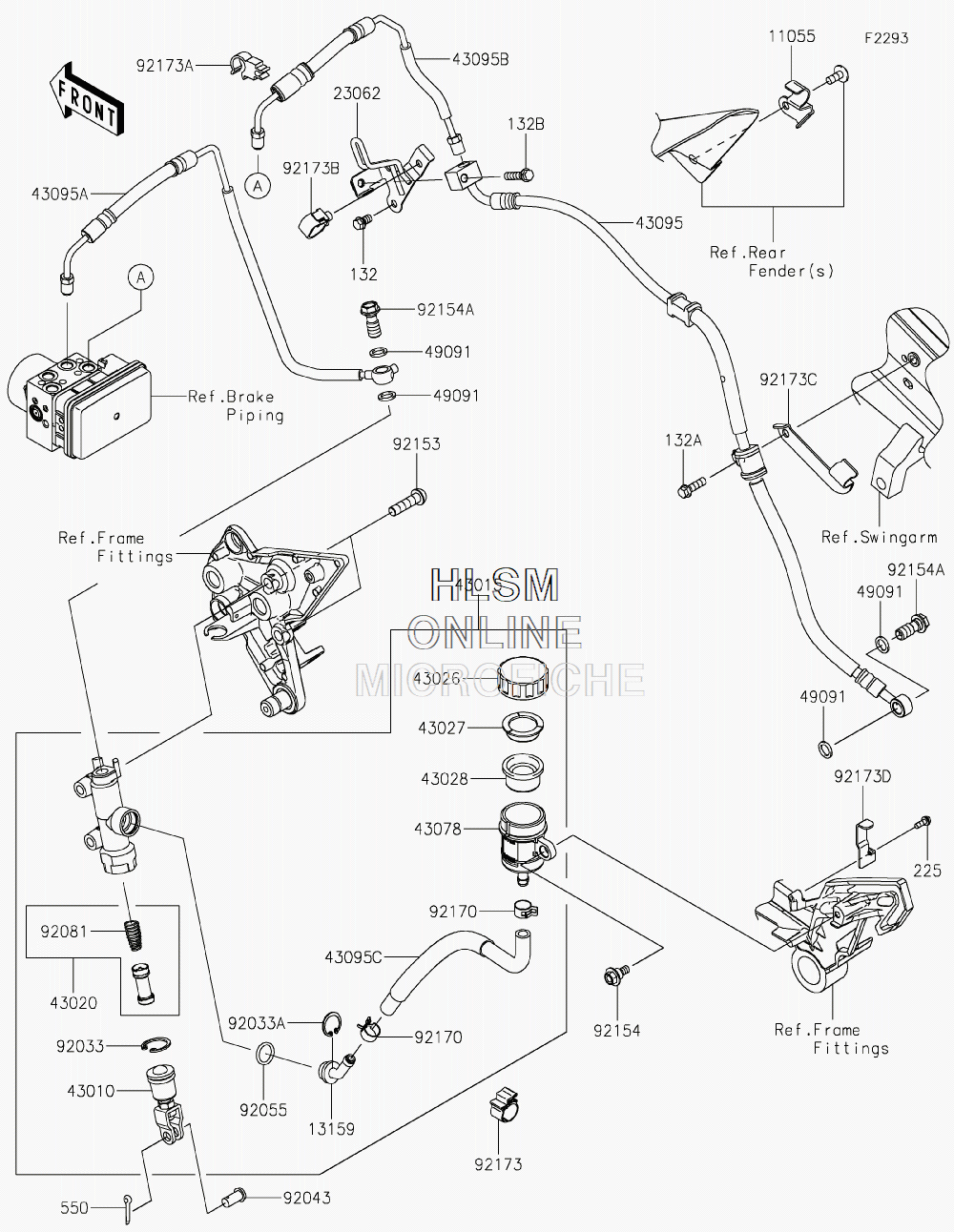

BRAKE - MASTER CYLINDER - REAR для Kawasaki NINJA 1000 ABS (ZX1000WJF) - 2018 года выпуска`
-
№АртикулНазвание
-
1105511055-1785 BRACKETBRACKET
-
1315913159-0008 CONNECTORCONNECTOR
-
132132BA0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
132A132BA0620 BOLT-FLANGED-SMALL, 6X20BOLT-FLANGED-SMALL, 6X20
-
132B132BA0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
225225AB0412 SCREW-PAN-WSP-CROS, 4X12SCREW-PAN-WSP-CROS, 4X12
-
2306223062-0823 BRACKET-COMPBRACKET-COMP
-
4301043010-1062 ROD-ASSY-BRAKEROD-ASSY-BRAKE
-
4301543015-0596 CYLINDER-ASSY-MASTER, REARCYLINDER-ASSY-MASTER, REAR
-
4302043020-1057 PISTON-COMP-BRAKEPISTON-COMP-BRAKE
-
4302643026-0009 CAP-BRAKECAP-BRAKE
-
4302743027-1053 PLATE-DIAPHRAGMPLATE-DIAPHRAGM
-
4302843028-1065 DIAPHRAGMDIAPHRAGM
-
4307843078-0060 RESERVOIRRESERVOIR
-
4309543095-0510 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
43095A43095-0785 HOSE-BRAKE, HU-REAR M/CHOSE-BRAKE, HU-REAR M/C
-
43095B43095-0786 HOSE-BRAKE, HU-REAR CALIPERHOSE-BRAKE, HU-REAR CALIPER
-
43095C43095-0811 HOSE-BRAKE, REAR M/CHOSE-BRAKE, REAR M/C
-
4909149091-0001 WASHER-SEAL, 10.1X14.5X1.5WASHER-SEAL, 10.1X14.5X1.5
-
550550AA2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
9203392033-0079 RING-SNAP, 20.9X24.6X1.2RING-SNAP, 20.9X24.6X1.2
-
92033A92033-1186 RING-SNAP, 20.5MMRING-SNAP, 20.5MM
-
9204392043-0904 PINPIN
-
9205592055-0741 RING-O, 14.8X2.4RING-O, 14.8X2.4
-
9208192081-1737 SPRING, MASTER CYLINDERSPRING, MASTER CYLINDER
-
9215392153-0393 BOLT, SOCKET, 8X30BOLT, SOCKET, 8X30
-
9215492154-0385 BOLT, FLANGED, 6X16BOLT, FLANGED, 6X16
-
92154A92154-1712 BOLT, BANJO, 10X23BOLT, BANJO, 10X23
-
9217092170-1091 CLAMP, HOSECLAMP, HOSE
-
9217392173-0127 CLAMP, CLIPCLAMP, CLIP
-
92173A92173-0170 CLAMPCLAMP
-
92173B92173-0868 CLAMP, HOLDER CLIPCLAMP, HOLDER CLIP
-
92173C92173-1248 CLAMPCLAMP
-
92173D92173-1694 CLAMPCLAMP
