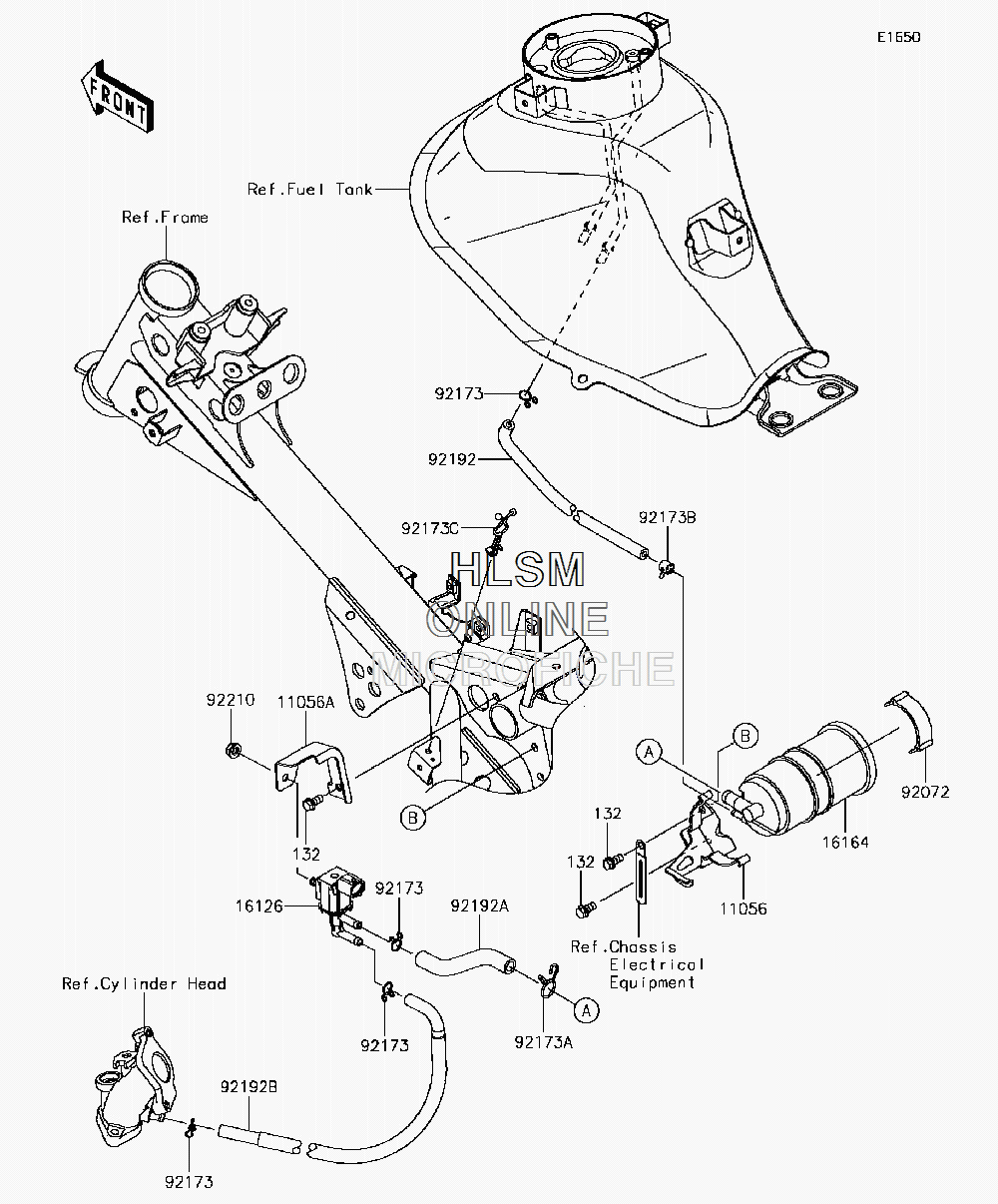

FUEL EVAPORATIVE SYSTEM (CALIF. ONLY) для Kawasaki Z125 PRO KRT EDITION (BR125JHFA) - 2017 года выпуска`
-
№АртикулНазвание
-
1105611056-7523 BRACKET, CANISTERBRACKET, CANISTER
-
11056A11056-7743 BRACKET, VALVEBRACKET, VALVE
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
1612616126-0705 VALVE, SOLENOIDVALVE, SOLENOID
-
1616416164-0704 CANISTERCANISTER
-
9207292072-1419 BAND, L=50BAND, L=50
-
9217392173-0050 CLAMPCLAMP
-
92173A92173-1015 CLAMP, 14MMCLAMP, 14MM
-
92173B92173-1143 CLAMPCLAMP
-
92173C92173-1616 CLAMPCLAMP
-
9219292192-1484 TUBE, TANK-CANISTERTUBE, TANK-CANISTER
-
92192A92192-1531 TUBE, CANISTER-VALVETUBE, CANISTER-VALVE
-
92192B92192-1747 TUBE, VALVE-PIPE INTAKETUBE, VALVE-PIPE INTAKE
-
9221092210-1514 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
