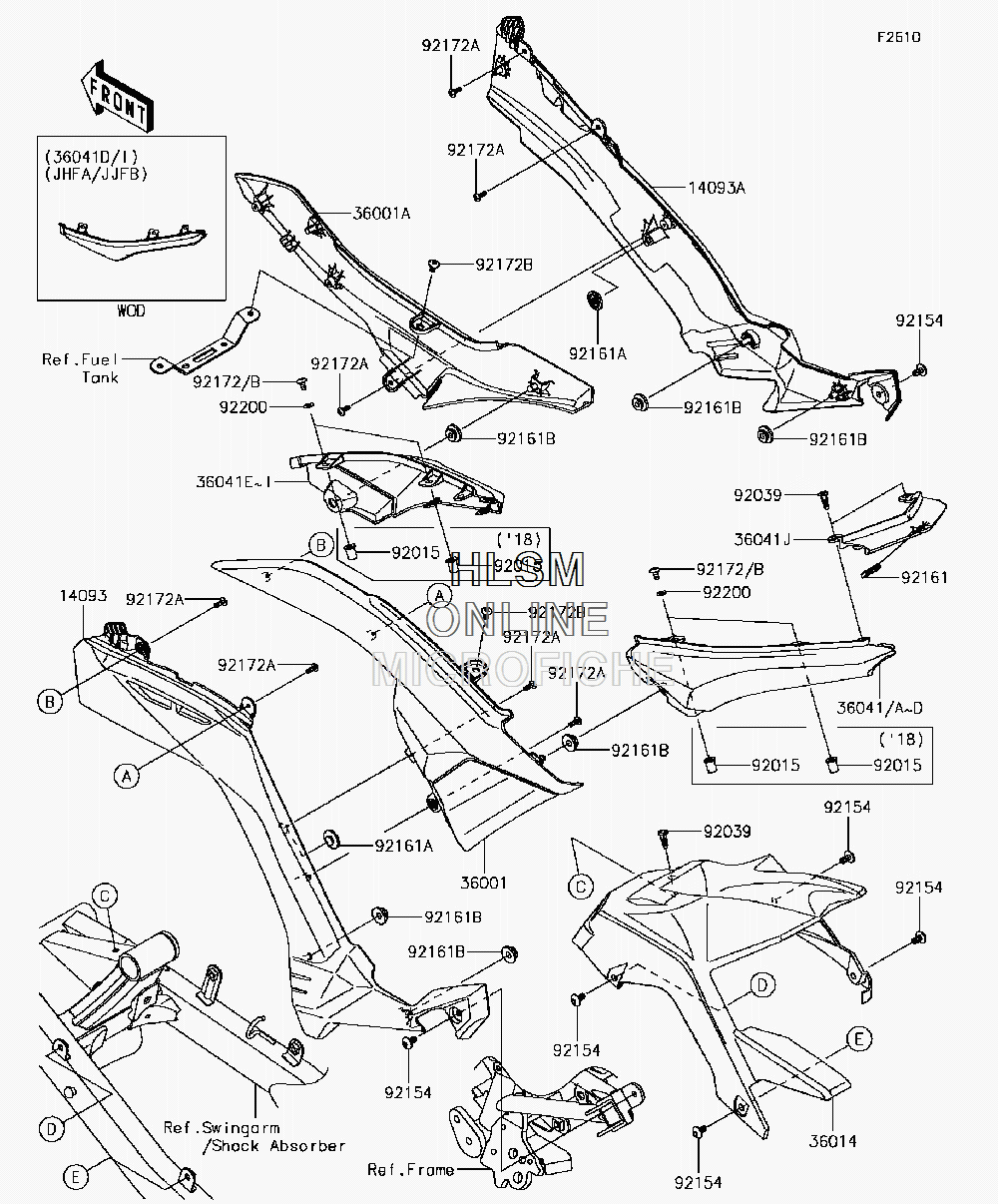

SIDE COVERS W/ CHAIN COVER для Kawasaki Z125 PRO (BR125JHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 14093
    14093-0330-6Z COVER, PIVOT, LEFT HAND, (F.BLACK) (FOR 45W/51P)
    COVER, PIVOT, LEFT HAND, (F.BLACK) (FOR 45W/51P)
  • 14093A
    14093-0331-6Z COVER, PIVOT, RIGHT HAND, (F.BLACK) (FOR 45W/51P)
    COVER, PIVOT, RIGHT HAND, (F.BLACK) (FOR 45W/51P)
  • 36001
    36001-0634-6Z COVER-SIDE, LEFT HAND, (F.BLACK) (FOR 45W/51P)
    COVER-SIDE, LEFT HAND, (F.BLACK) (FOR 45W/51P)
  • 36001A
    36001-0635-6Z COVER-SIDE, RIGHT HAND, (F.BLACK) (FOR 45W/51P)
    COVER-SIDE, RIGHT HAND, (F.BLACK) (FOR 45W/51P)
  • 36014
    36014-0568 CASE-CHAIN
    CASE-CHAIN
  • 36041A
    36041-0020-45W COVER-TAIL, LEFT HAND, (M.G.GRAY) (FOR 45W) (USA ONLY)
    COVER-TAIL, LEFT HAND, (M.G.GRAY) (FOR 45W) (USA ONLY)
  • 36041B
    36041-0020-51P COVER-TAIL, LEFT HAND, (C.L.GREEN) (FOR 51P)
    COVER-TAIL, LEFT HAND, (C.L.GREEN) (FOR 51P)
  • 36041F
    36041-0021-45W COVER-TAIL, RIGHT HAND, (M.G.GRAY) (FOR 45W) (USA ONLY)
    COVER-TAIL, RIGHT HAND, (M.G.GRAY) (FOR 45W) (USA ONLY)
  • 36041G
    36041-0021-51P COVER-TAIL, RIGHT HAND, (C.L.GREEN) (FOR 51P)
    COVER-TAIL, RIGHT HAND, (C.L.GREEN) (FOR 51P)
  • 36041J
    36041-0022-6Z COVER-TAIL, (F.BLACK) (FOR 45W/51P)
    COVER-TAIL, (F.BLACK) (FOR 45W/51P)
  • 92039
    92039-0709 RIVET
    RIVET
  • 92154
    92154-1484 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92161
    92161-1367 DAMPER, 12X23
    DAMPER, 12X23
  • 92161A
    92161-1685 DAMPER, 8X22X10
    DAMPER, 8X22X10
  • 92161B
    92161-1810 DAMPER
    DAMPER
  • 92172A
    92172-0959 SCREW, 4X12
    SCREW, 4X12
  • 92172B
    92172-1090 SCREW, 5X10
    SCREW, 5X10
  • 92200
    92200-1480 WASHER, NYLON, 5.3X11.5X0.5
    WASHER, NYLON, 5.3X11.5X0.5
