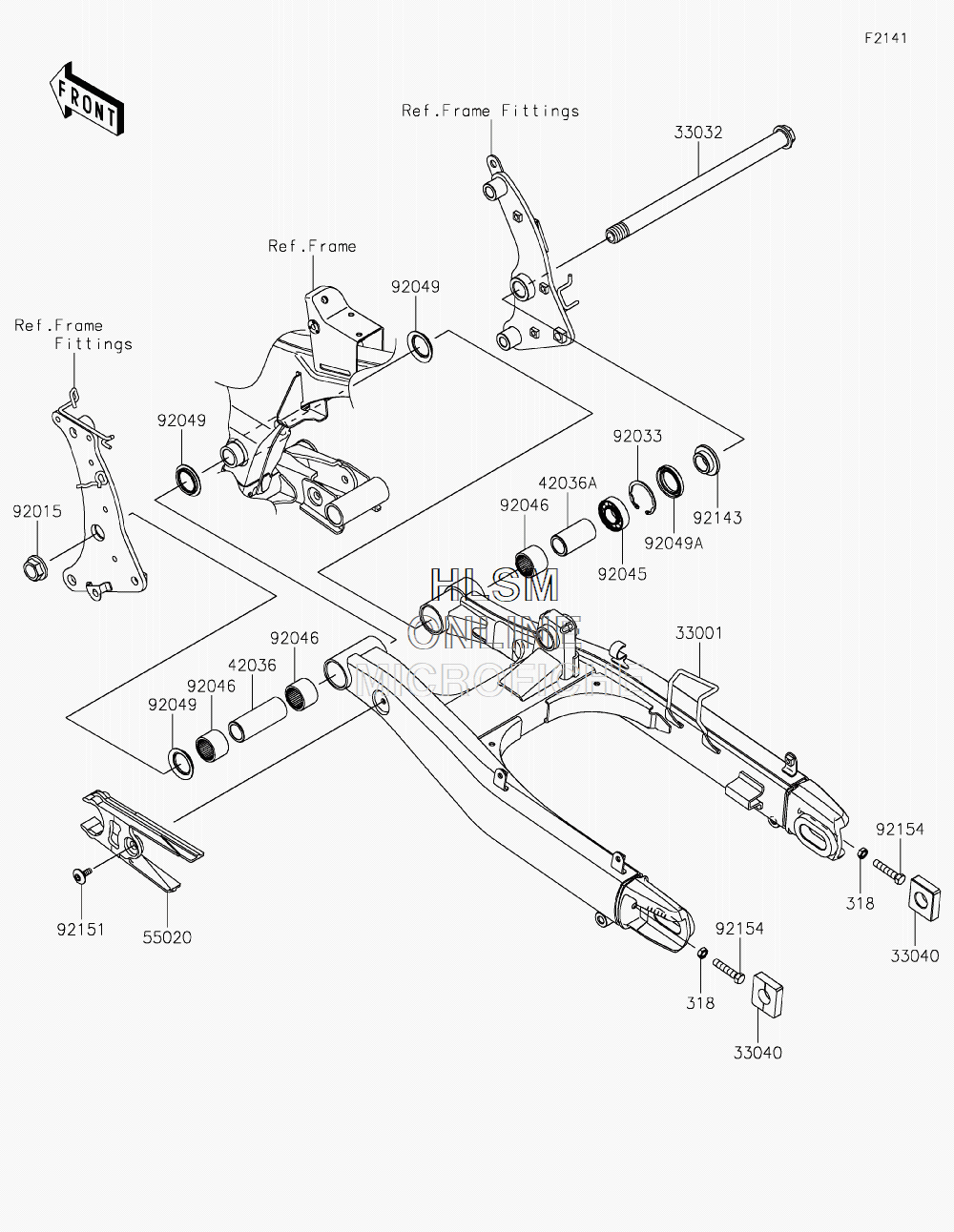

SUSPENSION - SWINGARM для Kawasaki VULCAN S (EN650CHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 318
    318BA0800 NUT-HEX-SMALL, 8MM
    NUT-HEX-SMALL, 8MM
  • 33001
    33001-0625-18R ARM-COMP-SWING, (F.S.BLACK)
    ARM-COMP-SWING, (F.S.BLACK)
  • 33032
    33032-0042 SHAFT-SWING ARM, 20X300
    SHAFT-SWING ARM, 20X300
  • 33040
    33040-1109 ADJUSTER-CHAIN
    ADJUSTER-CHAIN
  • 42036
    42036-0706 SLEEVE, LEFT HAND, 20.1X28X75.8
    SLEEVE, LEFT HAND, 20.1X28X75.8
  • 42036A
    42036-0707 SLEEVE, RIGHT HAND, 20.1X28X52.3
    SLEEVE, RIGHT HAND, 20.1X28X52.3
  • 55020
    55020-0985 GUARD, CHAIN
    GUARD, CHAIN
  • 92015
    92015-1724 NUT, FLANGED, 20MM
    NUT, FLANGED, 20MM
  • 92033
    92033-1041 RING-SNAP, 42MM
    RING-SNAP, 42MM
  • 92045
    92045-0017 BEARING-BALL, 6004UL11
    BEARING-BALL, 6004UL11
  • 92046
    92046-1202 BEARING-NEEDLE, BM2824
    BEARING-NEEDLE, BM2824
  • 92049
    92049-0132 SEAL-OIL
    SEAL-OIL
  • 92049A
    92049-0138 SEAL-OIL
    SEAL-OIL
  • 92143
    92143-1727 COLLAR, SWING ARM, RIGHT HAND, L=12.5
    COLLAR, SWING ARM, RIGHT HAND, L=12.5
  • 92151
    92151-1149 BOLT, SOCKET, 6X18
    BOLT, SOCKET, 6X18
  • 92154
    92154-0837 BOLT, 8X40
    BOLT, 8X40
