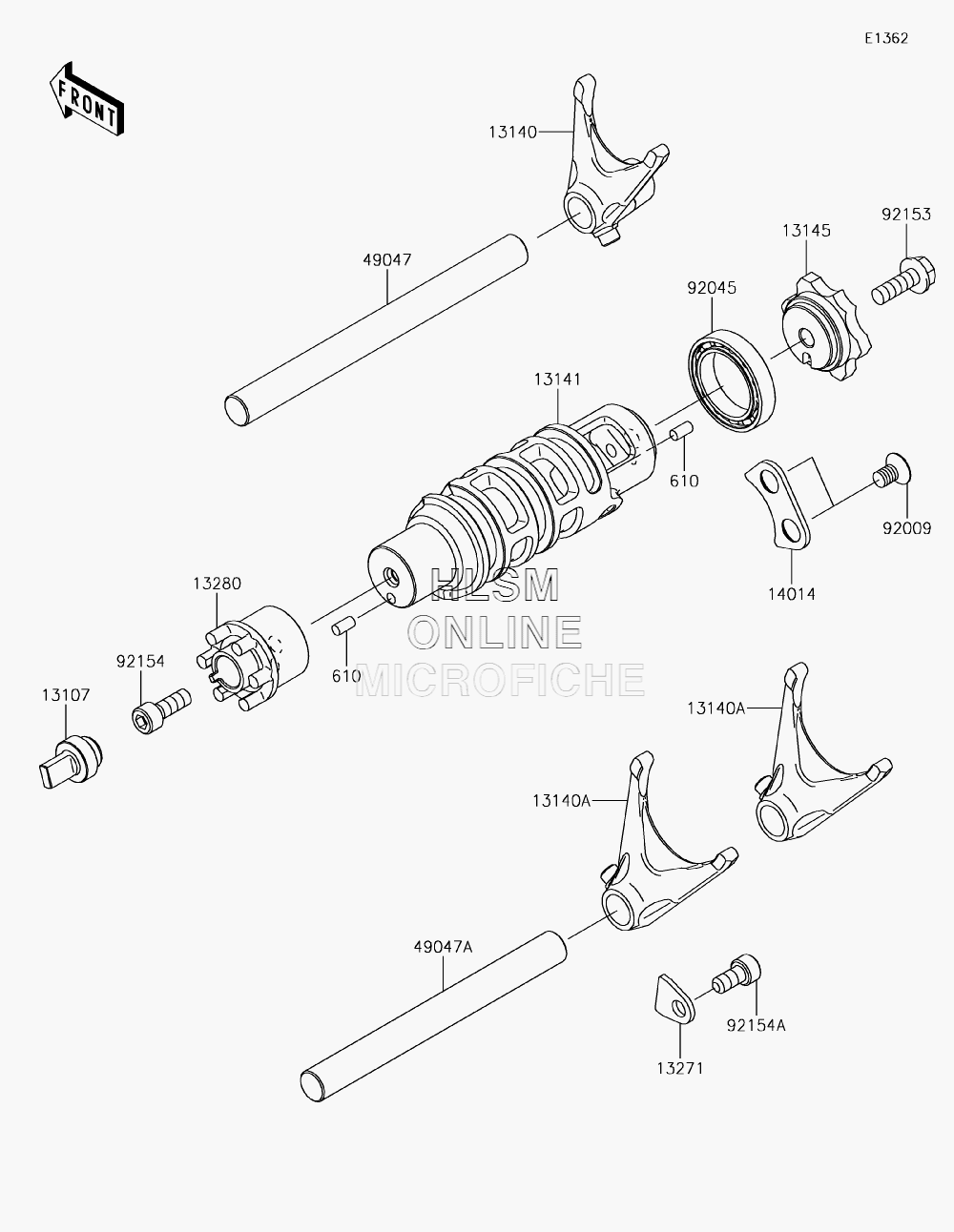

GEAR CHANGE DRUM W/ SHIFT FORK(S) для Kawasaki VULCAN S ABS (EN650DHF) - 2017 года выпуска
-
№АртикулНазвание
-
1310713107-0843 SHAFTSHAFT
-
1314013140-0025 FORK-SHIFT, INPUTFORK-SHIFT, INPUT
-
13140A13140-0026 FORK-SHIFT, OUTPUTFORK-SHIFT, OUTPUT
-
1314113141-0584 DRUM-CHANGEDRUM-CHANGE
-
1314513145-0020 CAM-CHANGE DRUMCAM-CHANGE DRUM
-
1327113271-0626 PLATEPLATE
-
1328013280-0875 HOLDERHOLDER
-
1401414014-0018 PLATE-POSITIONPLATE-POSITION
-
4904749047-0029 ROD-SHIFT, INPUTROD-SHIFT, INPUT
-
49047A49047-0030 ROD-SHIFT, OUTPUTROD-SHIFT, OUTPUT
-
610610A0408 ROLLER, 4X8ROLLER, 4X8
-
9200992009-1375 SCREW, 6X10SCREW, 6X10
-
9204592045-1122 BEARING-BALL, 6805BEARING-BALL, 6805
-
9215392153-0958 BOLT, FLANGED, 6X18BOLT, FLANGED, 6X18
-
9215492154-0484 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
92154A92154-0812 BOLT, SOCKET, 6X12BOLT, SOCKET, 6X12
