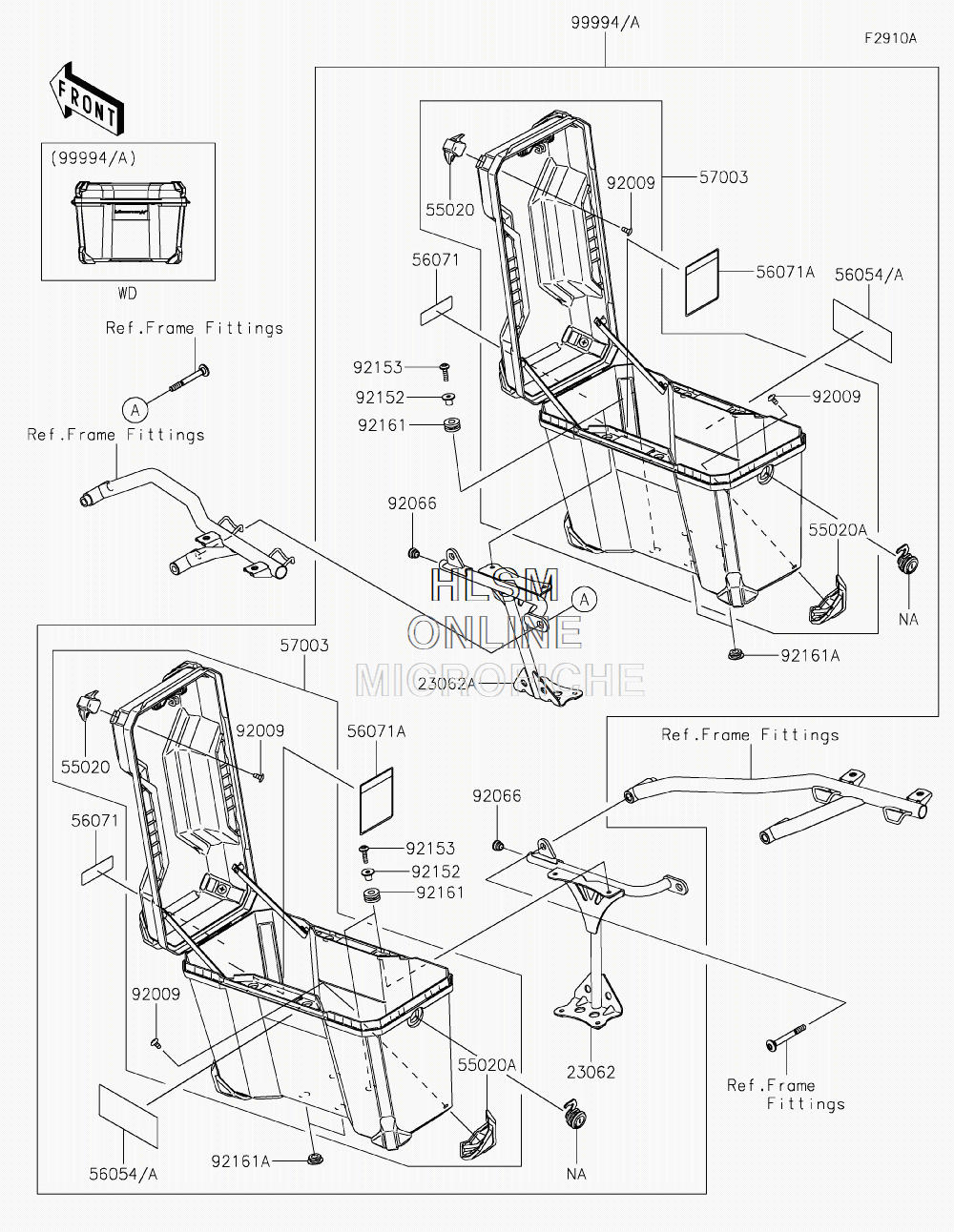

PANNIER для Kawasaki VERSYS-X 300 ABS (KLE300CHF) - 2017 года выпуска`
-
№АртикулНазвание
-
2306223062-0965 BRACKET-COMP, LEFT HANDBRACKET-COMP, LEFT HAND
-
23062A23062-0966 BRACKET-COMP, RIGHT HANDBRACKET-COMP, RIGHT HAND
-
5502055020-2174 GUARD, UPPERGUARD, UPPER
-
55020A55020-2175 GUARD, LOWERGUARD, LOWER
-
5605456054-2241 MARK, BAG, VERSYS-XMARK, BAG, VERSYS-X
-
5607156071-0457 LABEL-WARNING, PICTOGRAMLABEL-WARNING, PICTOGRAM
-
56071A56071-0724 LABEL-WARNING, PANNIER LOAD ETCLABEL-WARNING, PANNIER LOAD ETC
-
5700357003-0152 BAG-ASSY, PANNIERBAG-ASSY, PANNIER
-
9200992009-1480 SCREW, 6X12SCREW, 6X12
-
9206692066-1184 PLUGPLUG
-
9215292152-0332 COLLAR, 6.5X10X13.1COLLAR, 6.5X10X13.1
-
9215392153-1267 BOLT, SOCKET, 6X23BOLT, SOCKET, 6X23
-
9216192161-0927 DAMPER, 10X24X12DAMPER, 10X24X12
-
92161A92161-1910 DAMPER, PANNIER BOTTOMDAMPER, PANNIER BOTTOM
-
9999499994-0993 KIT-ACCESSORY, PANNIERKIT-ACCESSORY, PANNIER
