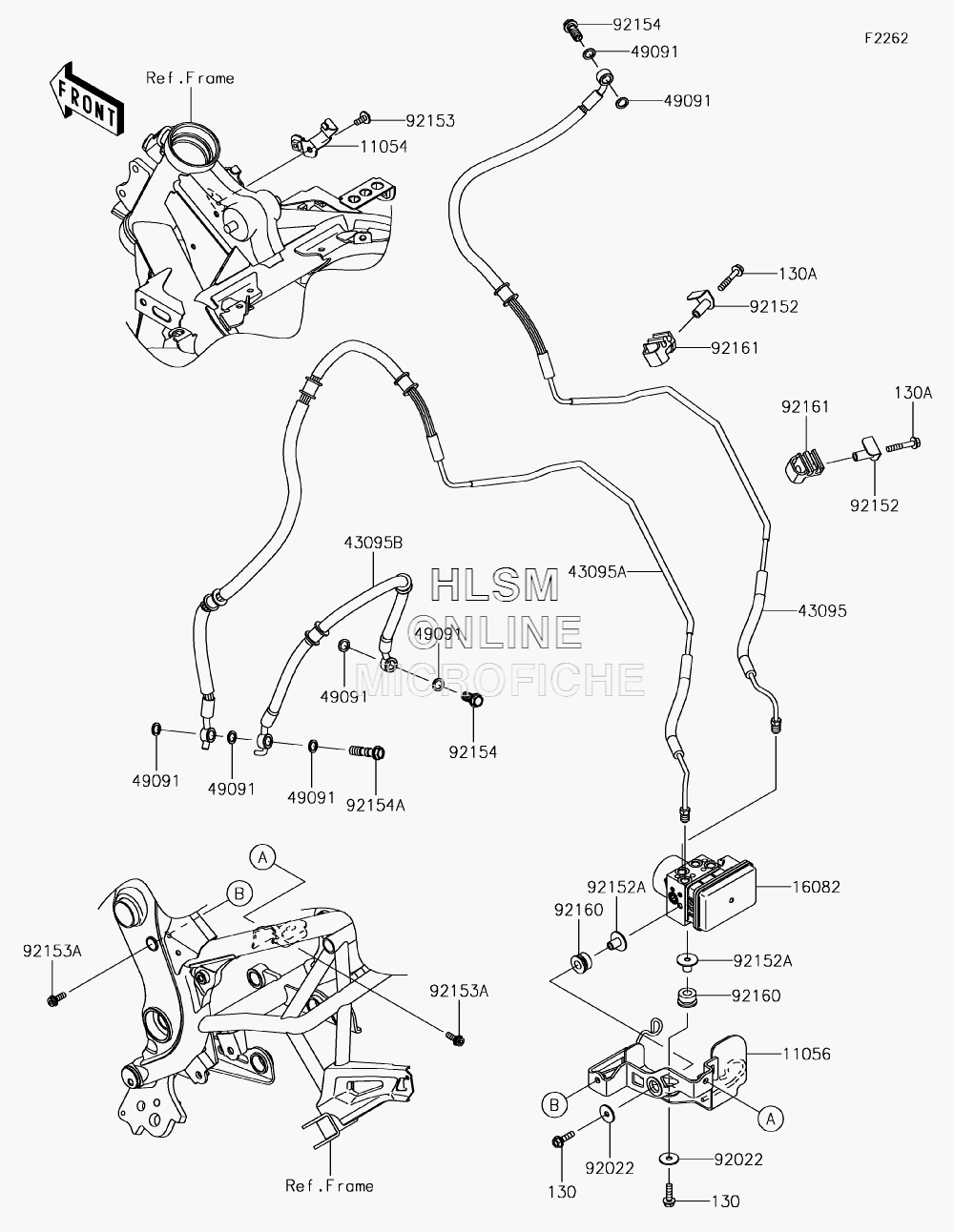

BRAKE LINES для Kawasaki VERSYS 650 ABS (KLE650FHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 11054
    11054-0408 BRACKET, BRAKE PIPE
    BRACKET, BRAKE PIPE
  • 11056
    11056-3977 BRACKET, ABS UNIT
    BRACKET, ABS UNIT
  • 130
    130BA0622 BOLT-FLANGED, 6X22
    BOLT-FLANGED, 6X22
  • 130A
    130BB0635 BOLT-FLANGED, 6X35
    BOLT-FLANGED, 6X35
  • 16082
    16082-0783 PUMP-ASSY-OIL, ABS
    PUMP-ASSY-OIL, ABS
  • 43095
    43095-0818 HOSE-BRAKE, FRONT M/C-ABS UNIT
    HOSE-BRAKE, FRONT M/C-ABS UNIT
  • 43095A
    43095-0820 HOSE-BRAKE, ABS UNIT-FRONT CAL.
    HOSE-BRAKE, ABS UNIT-FRONT CAL.
  • 43095B
    43095-0822 HOSE-BRAKE, 525MM
    HOSE-BRAKE, 525MM
  • 49091
    49091-0001 WASHER-SEAL, 10.1X14.5X1.5
    WASHER-SEAL, 10.1X14.5X1.5
  • 92022
    92022-237 WASHER, 6.5X22X1.6
    WASHER, 6.5X22X1.6
  • 92152
    92152-0409 COLLAR
    COLLAR
  • 92152A
    92152-0965 COLLAR, 6.5X10X14.6
    COLLAR, 6.5X10X14.6
  • 92153
    92153-1446 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92153A
    92153-1517 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 92154
    92154-0732 BOLT, FLANGED, 10X23
    BOLT, FLANGED, 10X23
  • 92154A
    92154-0733 BOLT, FLANGED, 10X37
    BOLT, FLANGED, 10X37
  • 92160
    92160-1141 DAMPER
    DAMPER
  • 92161
    92161-0347 DAMPER, BRAKE PIPE
    DAMPER, BRAKE PIPE
