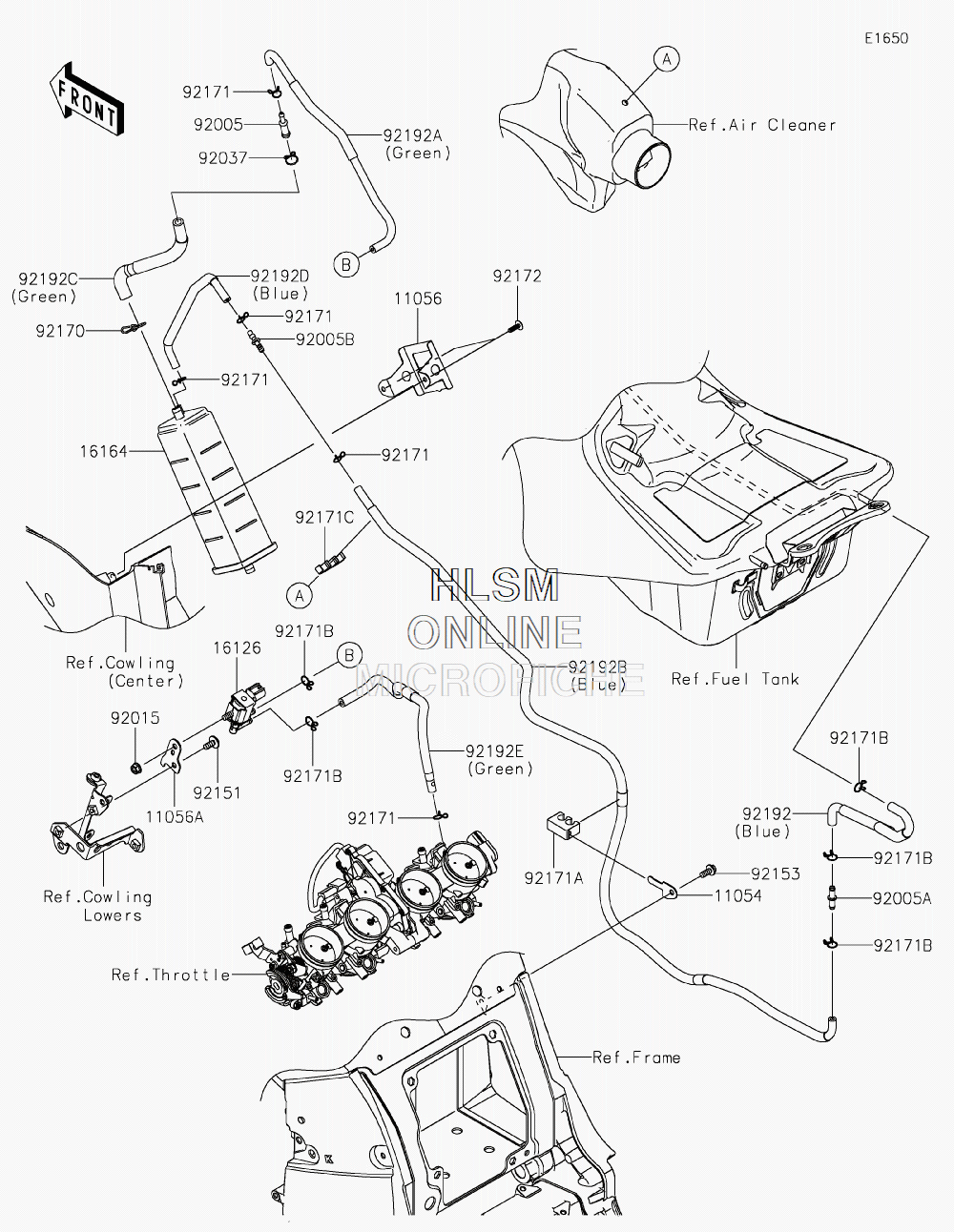

FUEL EVAPORATIVE SYSTEM (CALIF. ONLY) для Kawasaki NINJA ZX-14R ABS SE (ZX1400JHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1105411054-0464 BRACKETBRACKET
-
1105611056-1176 BRACKET, CANISTERBRACKET, CANISTER
-
11056A11056-1739 BRACKET, SOLENOID VALVEBRACKET, SOLENOID VALVE
-
1612616126-0705 VALVE, SOLENOIDVALVE, SOLENOID
-
1616416164-0009 CANISTERCANISTER
-
9200592005-0032 FITTINGFITTING
-
92005A92005-0721 FITTINGFITTING
-
92005B92005-1206 FITTINGFITTING
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9203792037-1271 CLAMP, 12.5MMCLAMP, 12.5MM
-
9215192151-1654 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
9215392153-1571 BOLT, FLANGED, 6X14BOLT, FLANGED, 6X14
-
9217092170-1695 CLAMPCLAMP
-
9217192171-0576 CLAMPCLAMP
-
92171A92171-0693 CLAMPCLAMP
-
92171B92171-0718 CLAMPCLAMP
-
92171C92171-1213 CLAMPCLAMP
-
9217292172-0175 SCREW, TAPPING, 5X16SCREW, TAPPING, 5X16
-
9219292192-0512 TUBE, TANK-CANISTER, BLUETUBE, TANK-CANISTER, BLUE
-
92192A92192-1056 TUBE, 5X9.7X331, GREENTUBE, 5X9.7X331, GREEN
-
92192B92192-1058 TUBE, 4X9.2X1105, BLUETUBE, 4X9.2X1105, BLUE
-
92192C92192-1152 TUBE, CANISTER-VALVE, GREENTUBE, CANISTER-VALVE, GREEN
-
92192D92192-1153 TUBE, 4X9.2X240, BLUETUBE, 4X9.2X240, BLUE
-
92192E92192-1166 TUBE, VALVE-THROTTLE, GREENTUBE, VALVE-THROTTLE, GREEN
