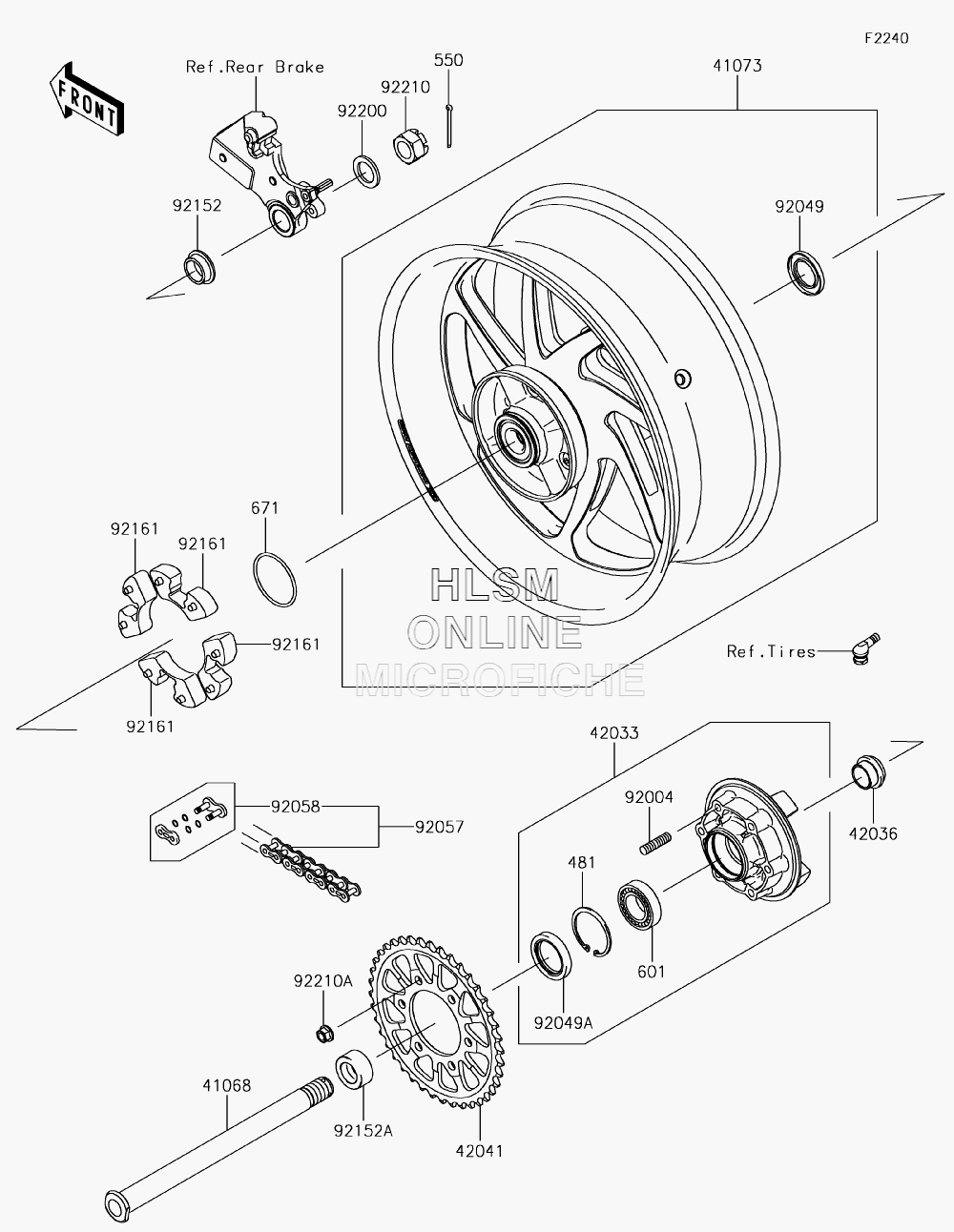

WHEEL - REAR W/ CHAIN для Kawasaki NINJA ZX-10RR (ZX1000ZHF) - 2017 года выпуска`
-
№АртикулНазвание
-
4106841068-0613 AXLE, REAR, 24X326AXLE, REAR, 24X326
-
4107341073-0718-60M WHEEL-ASSY, REAR, (M.BLACK+GREEN)WHEEL-ASSY, REAR, (M.BLACK+GREEN)
-
4203342033-0038 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1279 SLEEVE, REAR HUB, L=22SLEEVE, REAR HUB, L=22
-
4204142041-0096 SPROCKET-HUB, 39TSPROCKET-HUB, 39T
-
481481J5500 CIRCLIPCIRCLIP
-
550550AA4045 PIN-COTTER, 4.0X45PIN-COTTER, 4.0X45
-
601601B6006G BEARING-BALL, #6006GBEARING-BALL, #6006G
-
671671B2560 O RING, 60MMO RING, 60MM
-
9200492004-0028 STUD, 10X19STUD, 10X19
-
9204992049-0722 SEAL-OIL, 31X52X5SEAL-OIL, 31X52X5
-
92049A92049-1376 SEAL-OIL, PJN 40 55 8SEAL-OIL, PJN 40 55 8
-
9205792057-0672 CHAIN, DRIVE, EK525RMX3/3D, 114LCHAIN, DRIVE, EK525RMX3/3D, 114L
-
9205892058-0041 JOINT-CHAINJOINT-CHAIN
-
9215292152-0289 COLLAR, 25X32X13COLLAR, 25X32X13
-
92152A92152-0867 COLLAR, 25X40X18.7COLLAR, 25X40X18.7
-
9216192161-0342 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-0278 WASHER, 25.5X38X3.2WASHER, 25.5X38X3.2
-
9221092210-0280 NUT, CASTLE, 24MMNUT, CASTLE, 24MM
-
92210A92210-1139 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
