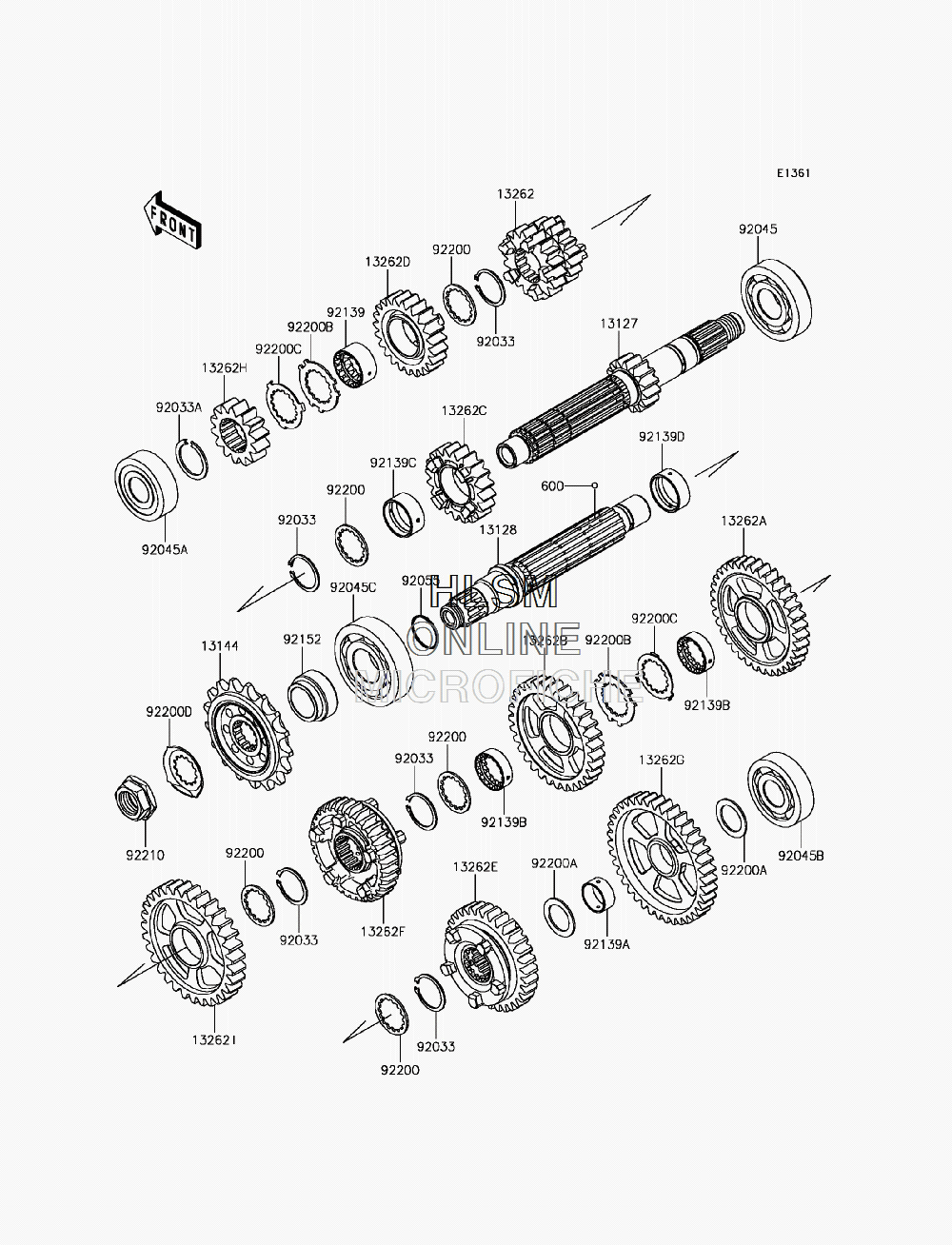

TRANSMISSION для Kawasaki NINJA ZX-10R KRT EDITION (ZX1000RHFA) - 2017 года выпуска

  • №
    Артикул
    Название
  • 600
    600A0500 BALL-STEEL, 5/32
    BALL-STEEL, 5/32
  • 13127
    13127-0671 SHAFT-TRANSMISSION INPUT, 15T
    SHAFT-TRANSMISSION INPUT, 15T
  • 13128
    13128-0670 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0004 SPROCKET-OUTPUT, 17T, #525
    SPROCKET-OUTPUT, 17T, #525
  • 13262
    13262-1188 GEAR, INPUT 3RD & 4TH, 18T & 18T
    GEAR, INPUT 3RD & 4TH, 18T & 18T
  • 13262A
    13262-1192 GEAR, OUTPUT 3RD, 35T
    GEAR, OUTPUT 3RD, 35T
  • 13262B
    13262-1193 GEAR, OUTPUT 4TH, 31T
    GEAR, OUTPUT 4TH, 31T
  • 13262C
    13262-1203 GEAR, INPUT 5TH, 20T
    GEAR, INPUT 5TH, 20T
  • 13262D
    13262-1204 GEAR, INPUT 6TH, 23T
    GEAR, INPUT 6TH, 23T
  • 13262E
    13262-1205 GEAR, OUTPUT 5TH, 31T
    GEAR, OUTPUT 5TH, 31T
  • 13262F
    13262-1206 GEAR, OUTPUT 6TH, 32T
    GEAR, OUTPUT 6TH, 32T
  • 13262G
    13262-1207 GEAR, OUTPUT LOW, 39T
    GEAR, OUTPUT LOW, 39T
  • 13262H
    13262-1210 GEAR, INPUT 2ND, 14T
    GEAR, INPUT 2ND, 14T
  • 13262I
    13262-1211 GEAR, OUTPUT 2ND, 31T
    GEAR, OUTPUT 2ND, 31T
  • 92033
    92033-1037 RING-SNAP, 25.9X30.6X1.2
    RING-SNAP, 25.9X30.6X1.2
  • 92033A
    92033-1249 RING-SNAP, T=1.5
    RING-SNAP, T=1.5
  • 92045
    92045-0047 BEARING-BALL, 830045-5SH2
    BEARING-BALL, 830045-5SH2
  • 92045A
    92045-0048 BEARING-BALL, DG2152RDDSH2
    BEARING-BALL, DG2152RDDSH2
  • 92045B
    92045-0156 BEARING-BALL, 63/22LU
    BEARING-BALL, 63/22LU
  • 92045C
    92045-1189 BEARING-BALL, 63/28
    BEARING-BALL, 63/28
  • 92055
    92055-1293 RING-O, 21.5X1.5
    RING-O, 21.5X1.5
  • 92139
    92139-0036 BUSHING, GEAR, 6TH IN
    BUSHING, GEAR, 6TH IN
  • 92139A
    92139-0038 BUSHING, GEAR, LOW OUT
    BUSHING, GEAR, LOW OUT
  • 92139B
    92139-0309 BUSHING, 25.0X31.0X9.4
    BUSHING, 25.0X31.0X9.4
  • 92139C
    92139-0324 BUSHING, 28.1X31.0X13.5
    BUSHING, 28.1X31.0X13.5
  • 92139D
    92139-0734 BUSHING, 28.1X31.0X11.5
    BUSHING, 28.1X31.0X11.5
  • 92152
    92152-0885 COLLAR
    COLLAR
  • 92200
    92200-0050 WASHER, 28.3X34.0X1.6
    WASHER, 28.3X34.0X1.6
  • 92200A
    92200-0138 WASHER, 22.1X32.0X1.4
    WASHER, 22.1X32.0X1.4
  • 92200B
    92200-1522 WASHER, 25.8X40.5X1.5
    WASHER, 25.8X40.5X1.5
  • 92200C
    92200-1523 WASHER, 25.2X37.0X1.0
    WASHER, 25.2X37.0X1.0
  • 92200D
    92200-1720 WASHER
    WASHER
  • 92210
    92210-0850 NUT, 20MM
    NUT, 20MM
