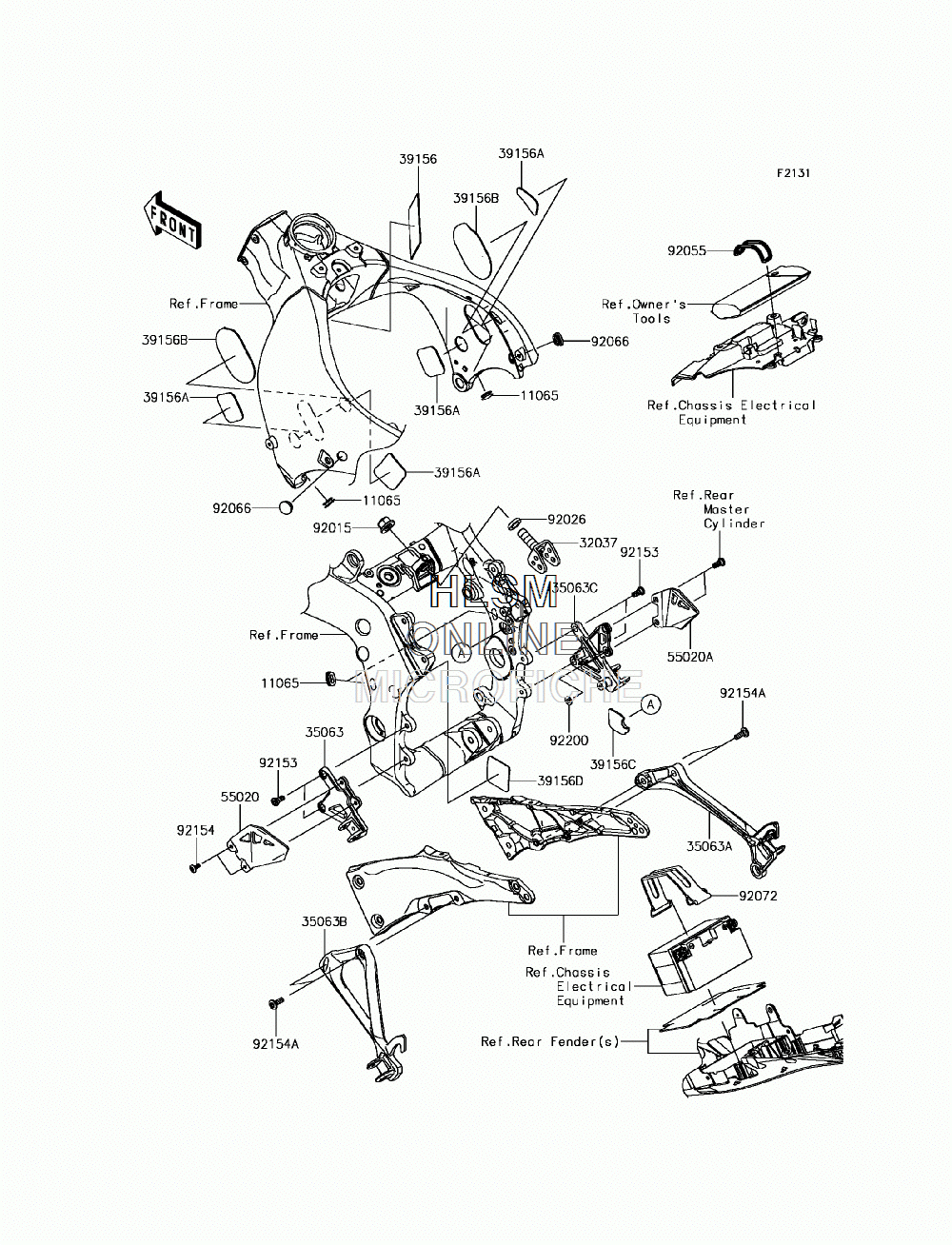

FRAME FITTINGS для Kawasaki NINJA ZX-10R AB SKRT EDITION (ZX1000SHFA) - 2017 года выпуска`
-
№АртикулНазвание
-
1106511065-0095 CAPCAP
-
3203732037-0149 BRACKET-SHOCKABSORBERBRACKET-SHOCKABSORBER
-
3506335063-0697-18R STAY, FRONT STEP, LEFT HAND, (F.S.BLACK)STAY, FRONT STEP, LEFT HAND, (F.S.BLACK)
-
35063A35063-0700-18R STAY, REAR STEP, RIGHT HAND, (F.S.BLACK)STAY, REAR STEP, RIGHT HAND, (F.S.BLACK)
-
35063B35063-0852-18R STAY, REAR STEP, LEFT HAND, (F.S.BLACK)STAY, REAR STEP, LEFT HAND, (F.S.BLACK)
-
35063C35063-1331-18R STAY, FRONT STEP, RIGHT HAND, (F.S.BLACK)STAY, FRONT STEP, RIGHT HAND, (F.S.BLACK)
-
3915639156-0923 PAD, 50X115X2PAD, 50X115X2
-
39156A39156-1961 PAD, 55X55X2PAD, 55X55X2
-
39156B39156-1962 PAD, 76X110X2PAD, 76X110X2
-
39156C39156-1964 PAD, 45X50.5X2PAD, 45X50.5X2
-
39156D39156-2116 PAD, 55.5X55.5X0.5PAD, 55.5X55.5X0.5
-
5502055020-0569 GUARD, FRONT STEP, LEFT HANDGUARD, FRONT STEP, LEFT HAND
-
55020A55020-1944 GUARD, FRONT STEP, RIGHT HANDGUARD, FRONT STEP, RIGHT HAND
-
9201592015-1316 NUT, FLANGED, 16MMNUT, FLANGED, 16MM
-
9202692026-0813 SPACER, 16.5X26X5.2SPACER, 16.5X26X5.2
-
9205592055-0881 RING-O, 54.6X5.7RING-O, 54.6X5.7
-
9206692066-1320 PLUG, 17MMPLUG, 17MM
-
9207292072-1306 BAND, L=168BAND, L=168
-
9215392153-1621 BOLT, SOCKET, 8X20BOLT, SOCKET, 8X20
-
9215492154-1735 BOLT, SOCKET, 6X14BOLT, SOCKET, 6X14
-
92154A92154-1968 BOLT, SOCKET, 8X23BOLT, SOCKET, 8X23
-
9220092200-0807 WASHER, 8.4X16X1.6WASHER, 8.4X16X1.6
