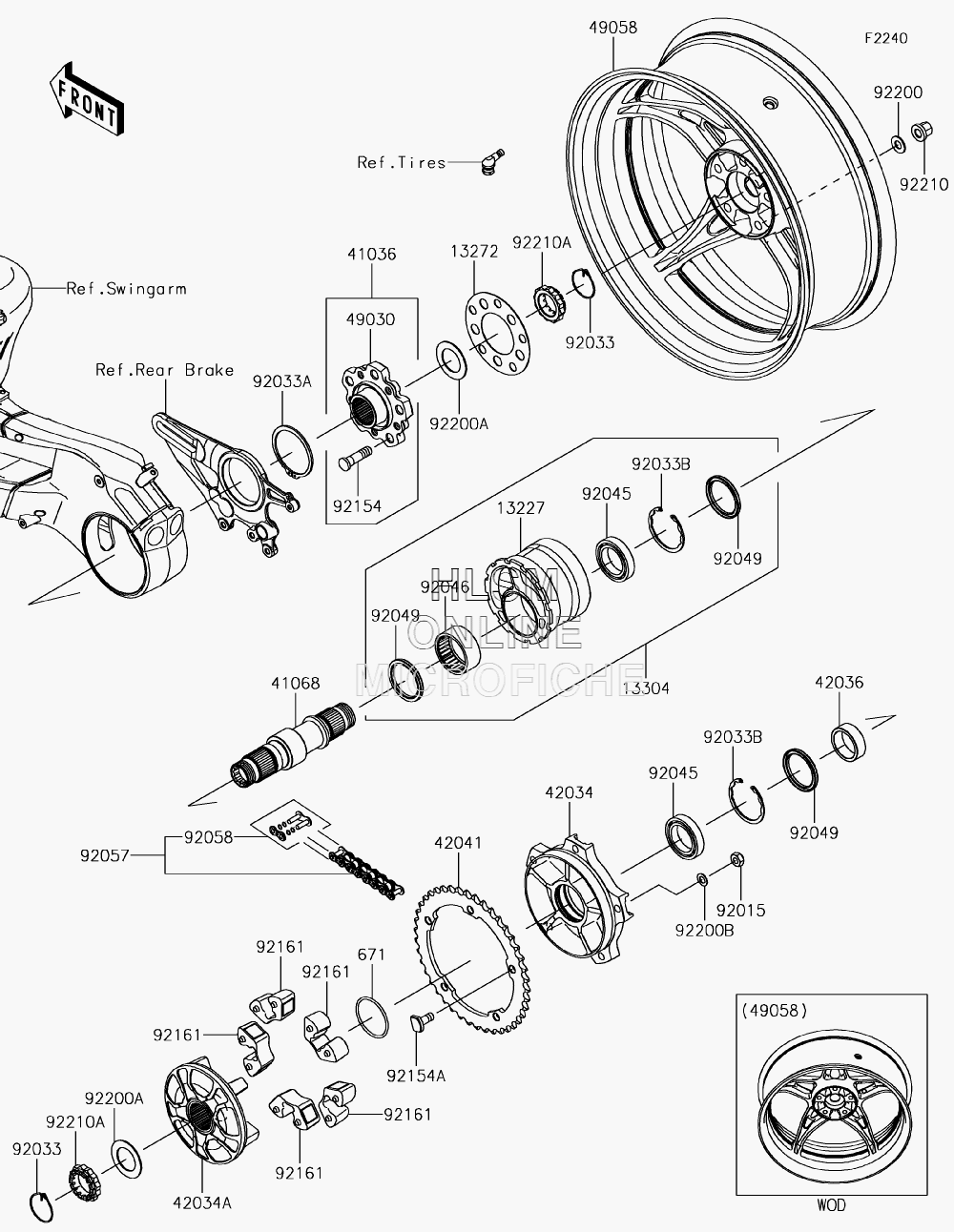

WHEEL - REAR W/ CHAIN для Kawasaki NINJA H2R (ZX1000YHF) - 2017 года выпуска
-
№АртикулНазвание
-
1322713227-0034 HOUSING, REARHOUSING, REAR
-
1327213272-1861 PLATEPLATE
-
1330413304-5001 HOUSING-ASSY, REARHOUSING-ASSY, REAR
-
4103641036-0679 HUB-ASSY, REARHUB-ASSY, REAR
-
4106841068-0620 AXLE, REARAXLE, REAR
-
4203442034-0744-46T COUPLING, (F.W.M.GRAY)COUPLING, (F.W.M.GRAY)
-
42034A42034-0752-53D COUPLING, INSERT, (F.W.M.GRAY)COUPLING, INSERT, (F.W.M.GRAY)
-
4203642036-0779 SLEEVE, 40X50X16.4SLEEVE, 40X50X16.4
-
4204142041-0153 SPROCKET-HUB, 42TSPROCKET-HUB, 42T
-
4903049030-0050 HUB, REARHUB, REAR
-
4905849058-0670-51H WHEEL, REAR, (F.BLACK)WHEEL, REAR, (F.BLACK)
-
671671B2555 O RING, 55MMO RING, 55MM
-
9201592015-1189 NUT, LOCK, 10MM, (BLACK)NUT, LOCK, 10MM, (BLACK)
-
9203392033-0753 RING-SNAP, 41X1.6RING-SNAP, 41X1.6
-
92033A92033-0760 RING-SNAPRING-SNAP
-
92033B92033-1044 RING-SNAP, 62MMRING-SNAP, 62MM
-
9204592045-0802 BEARING-BALL, 40X60X12BEARING-BALL, 40X60X12
-
9204692046-0617 BEARING-NEEDLE, 50X62X25BEARING-NEEDLE, 50X62X25
-
9204992049-0771 SEAL-OIL, 50X62X5SEAL-OIL, 50X62X5
-
9205792057-0636 CHAIN, DRIVE, EK525RMXZ/3DX116LCHAIN, DRIVE, EK525RMXZ/3DX116L
-
9205892058-0036 JOINT-CHAINJOINT-CHAIN
-
9215492154-1546 BOLT, HUB, 12X45BOLT, HUB, 12X45
-
92154A92154-2300 BOLT, SPROCKET, 10X24.3BOLT, SPROCKET, 10X24.3
-
9216192161-1286 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-0455 WASHER, 12.1X25X1.6WASHER, 12.1X25X1.6
-
92200A92200-1764 WASHER, 35.1X56X1.6WASHER, 35.1X56X1.6
-
92200B92200-1770 WASHER, 10.2X18X1WASHER, 10.2X18X1
-
9221092210-0931 NUT, 12MMNUT, 12MM
-
92210A92210-1415 NUT, REAR AXLE, 35MMNUT, REAR AXLE, 35MM
