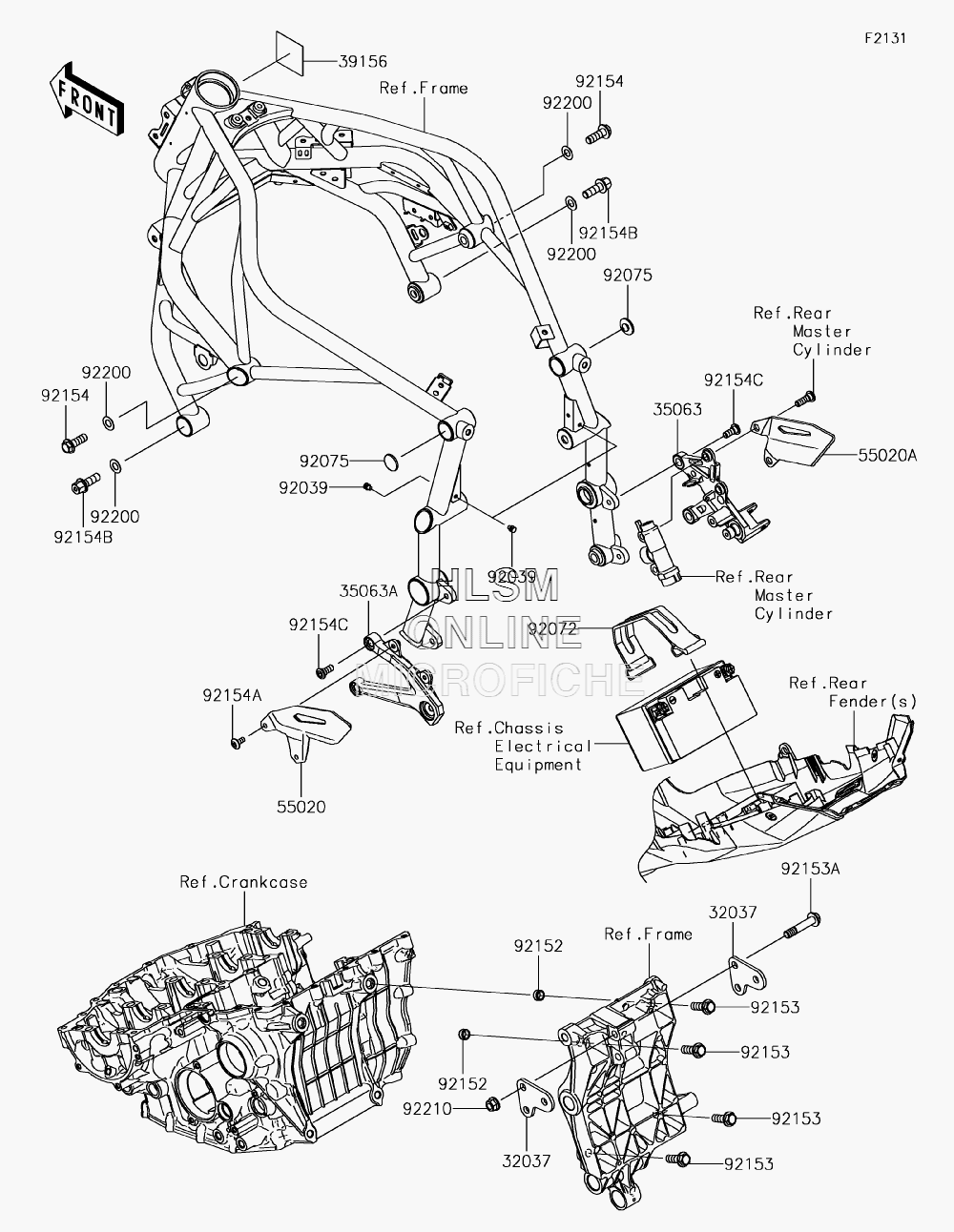

FRAME FITTINGS для Kawasaki NINJA H2 (ZX1000XHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 32037
    32037-0381 BRACKET-SHOCKABSORBER
    BRACKET-SHOCKABSORBER
  • 35063
    35063-0994-46T STAY, STEP, RIGHT HAND, (F.W.M.GRAY)
    STAY, STEP, RIGHT HAND, (F.W.M.GRAY)
  • 35063A
    35063-1308-46T STAY, STEP, LEFT HAND, (F.W.M.GRAY)
    STAY, STEP, LEFT HAND, (F.W.M.GRAY)
  • 39156
    39156-2132 PAD, 50X50X0.5
    PAD, 50X50X0.5
  • 55020
    55020-1835 GUARD, HEEL, LEFT HAND
    GUARD, HEEL, LEFT HAND
  • 55020A
    55020-1836 GUARD, HEEL, RIGHT HAND
    GUARD, HEEL, RIGHT HAND
  • 92039
    92039-0773 RIVET, PLASTI
    RIVET, PLASTI
  • 92072
    92072-1338 BAND, L=150
    BAND, L=150
  • 92075
    92075-261 DAMPER, RUBBER
    DAMPER, RUBBER
  • 92152
    92152-0679 COLLAR, DOWEL PIN
    COLLAR, DOWEL PIN
  • 92153
    92153-0801 BOLT, FLANGED, 10X30
    BOLT, FLANGED, 10X30
  • 92153A
    92153-1545 BOLT, FLANGED, 10X51
    BOLT, FLANGED, 10X51
  • 92154
    92154-0543 BOLT, FLANGED, 10X30
    BOLT, FLANGED, 10X30
  • 92154A
    92154-0745 BOLT, SOCKET, 6X14
    BOLT, SOCKET, 6X14
  • 92154B
    92154-1566 BOLT, FLANGED, 10X30
    BOLT, FLANGED, 10X30
  • 92154C
    92154-1711 BOLT, SOCKET8X20
    BOLT, SOCKET8X20
  • 92200
    92200-1732 WASHER, 10.2X20X0.5
    WASHER, 10.2X20X0.5
  • 92210
    92210-1139 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
