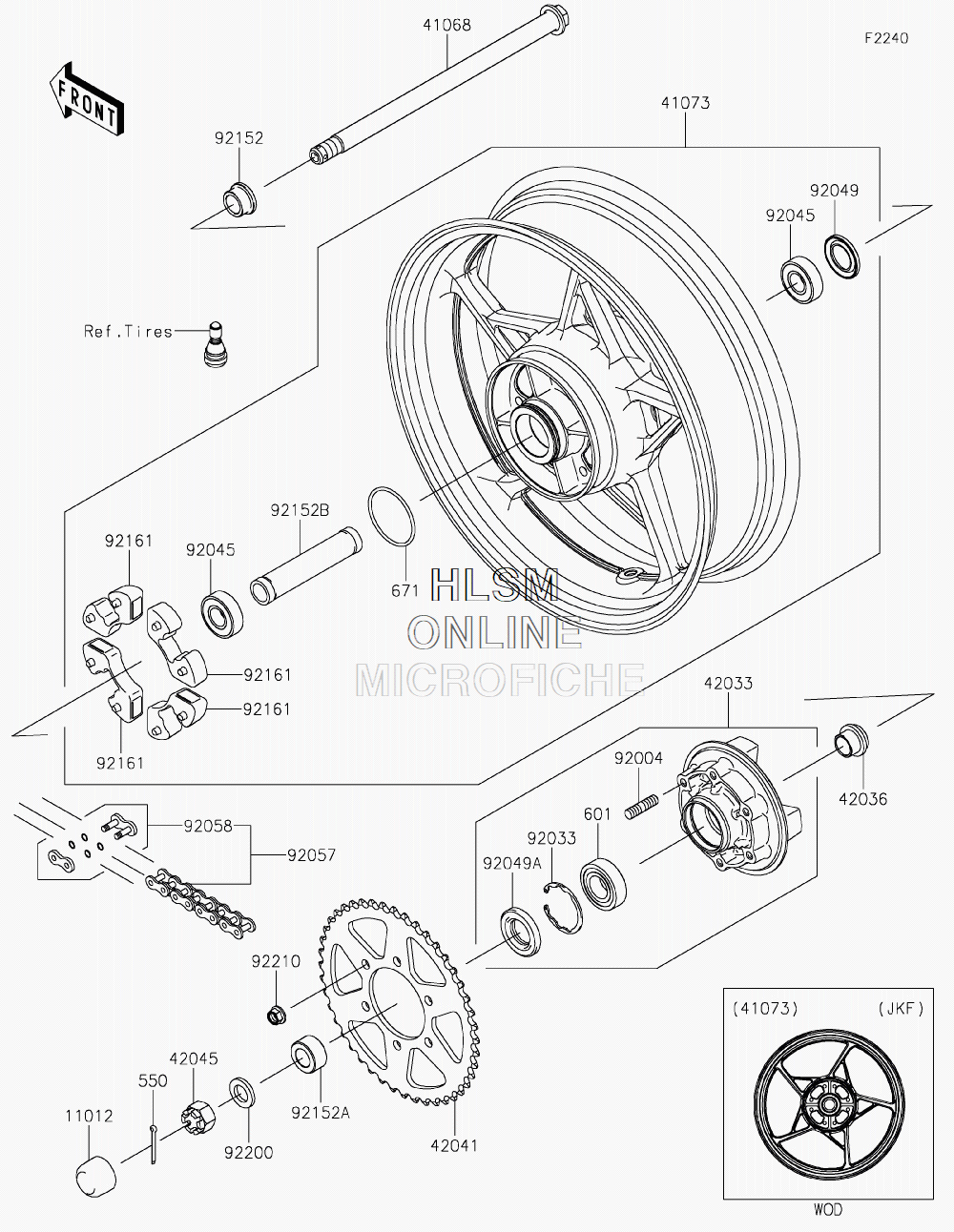

WHEEL - REAR W/ CHAIN для Kawasaki NINJA 650 (EX650JHF) - 2017 года выпуска`
-
№АртикулНазвание
-
1101211012-1590 CAP, AXLE NUTCAP, AXLE NUT
-
4106841068-0617 AXLE, REAR, 20X339.9AXLE, REAR, 20X339.9
-
4107341073-0704-QT WHEEL-ASSY, REAR, (G.BLACK) (FOR ALL COLORS)WHEEL-ASSY, REAR, (G.BLACK) (FOR ALL COLORS)
-
4203342033-0570 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1251 SLEEVE, REAR HUB, L=23SLEEVE, REAR HUB, L=23
-
4204142041-0087 SPROCKET-HUB, 46TSPROCKET-HUB, 46T
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
550550AA4035 PIN-COTTER, 4.0X35PIN-COTTER, 4.0X35
-
601601B6205UU BEARING-BALLBEARING-BALL
-
671671B2560 O RING, 60MMO RING, 60MM
-
9200492004-0048 STUD, 10X19STUD, 10X19
-
9203392033-1043 RING-SNAP, 52MMRING-SNAP, 52MM
-
9204592045-0821 BEARING-BALL, 20X47X14BEARING-BALL, 20X47X14
-
9204992049-0140 SEAL-OIL, 28 47 5SEAL-OIL, 28 47 5
-
92049A92049-1287 SEAL-OILSEAL-OIL
-
9205792057-0695 CHAIN, DRIVE, DID520VEX114LCHAIN, DRIVE, DID520VEX114L
-
9205892058-0044 JOINT-CHAINJOINT-CHAIN
-
9215292152-0302 COLLAR, REAR AXLE, RIGHT HAND, L=17COLLAR, REAR AXLE, RIGHT HAND, L=17
-
92152A92152-0751 COLLAR, 20X35X18COLLAR, 20X35X18
-
92152B92152-2228 COLLAR, 20.2X27.2X133COLLAR, 20.2X27.2X133
-
9216192161-0303 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-1865 WASHER, 19X32X4WASHER, 19X32X4
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
