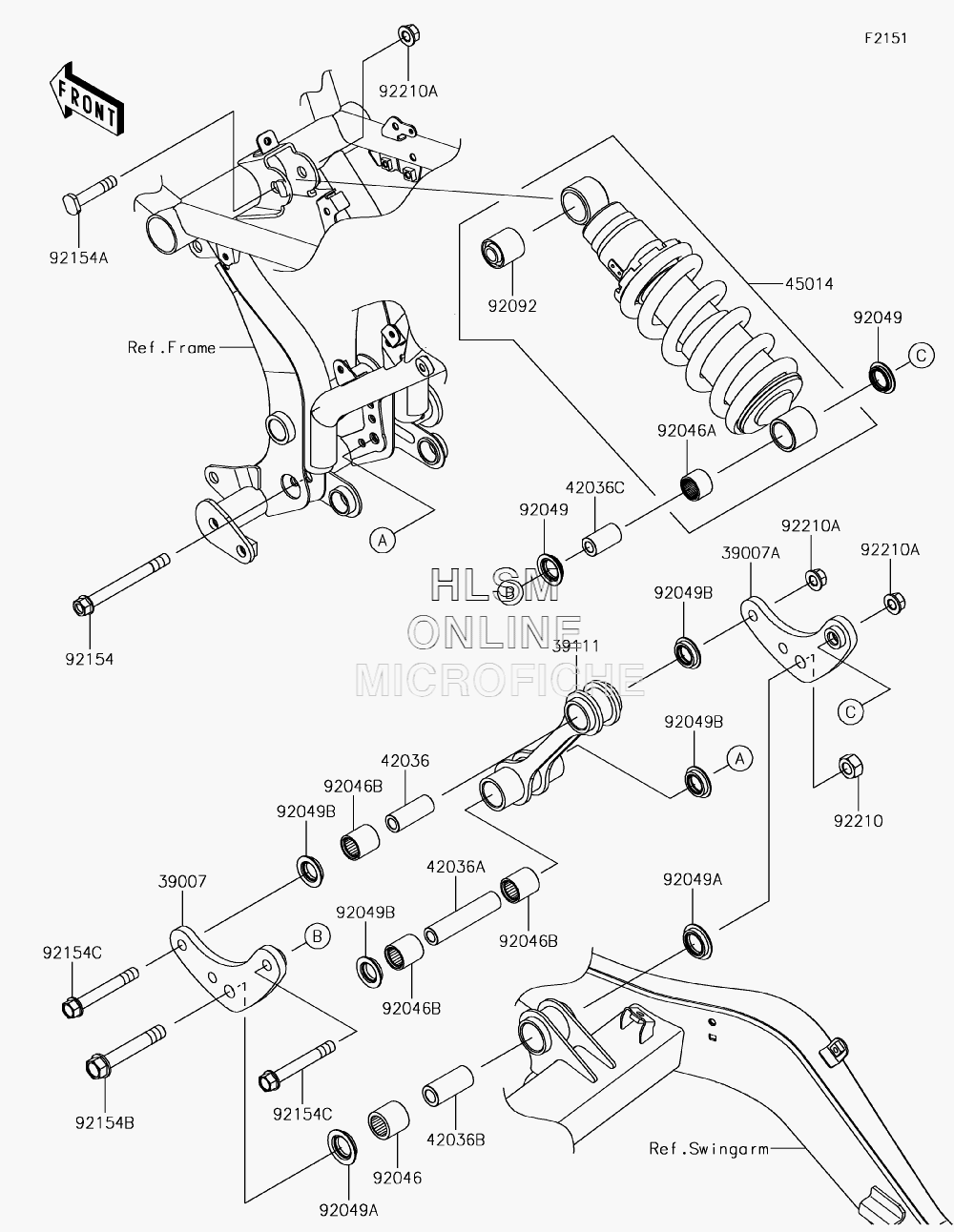

SUSPENSION - SHOCK ABSORBER для Kawasaki NINJA 650 ABS (EX650KHF) - 2017 года выпуска

  • №
    Артикул
    Название
  • 39007
    39007-0401 ARM-SUSP, LEFT HAND
    ARM-SUSP, LEFT HAND
  • 39007A
    39007-0402 ARM-SUSP, RIGHT HAND
    ARM-SUSP, RIGHT HAND
  • 39111
    39111-0343 ROD-TIE
    ROD-TIE
  • 42036
    42036-0718 SLEEVE, 10.1X17X44.5
    SLEEVE, 10.1X17X44.5
  • 42036A
    42036-0787 SLEEVE, 10.1X17X79.8
    SLEEVE, 10.1X17X79.8
  • 42036B
    42036-0788 SLEEVE, 12.1X20X44.5
    SLEEVE, 12.1X20X44.5
  • 42036C
    42036-1344 SLEEVE, 10.1X18X32
    SLEEVE, 10.1X18X32
  • 45014
    45014-0565-458 SHOCKABSORBER, (P.SILVER)
    SHOCKABSORBER, (P.SILVER)
  • 92046
    92046-1236 BEARING-NEEDLE, 7E-HVS20X27X25
    BEARING-NEEDLE, 7E-HVS20X27X25
  • 92046A
    92046-1272 BEARING-NEEDLE, SFYZM182417
    BEARING-NEEDLE, SFYZM182417
  • 92046B
    92046-1273 BEARING-NEEDLE, SFYZM172425
    BEARING-NEEDLE, SFYZM172425
  • 92049
    92049-0133 SEAL-OIL
    SEAL-OIL
  • 92049A
    92049-1109 SEAL-OIL, ARM
    SEAL-OIL, ARM
  • 92049B
    92049-1223 SEAL-OIL, MHA17245.7F
    SEAL-OIL, MHA17245.7F
  • 92092
    92092-1058 BUSHING-RUBBER
    BUSHING-RUBBER
  • 92154
    92154-1257 BOLT, FLANGED, 10X100
    BOLT, FLANGED, 10X100
  • 92154A
    92154-2165 BOLT, 10X50
    BOLT, 10X50
  • 92154B
    92154-2166 BOLT, FLANGED, 12X75
    BOLT, FLANGED, 12X75
  • 92154C
    92154-2226 BOLT, FLANGED, 10X75
    BOLT, FLANGED, 10X75
  • 92210
    92210-0274 NUT, LOCK, 12MM
    NUT, LOCK, 12MM
  • 92210A
    92210-1139 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
