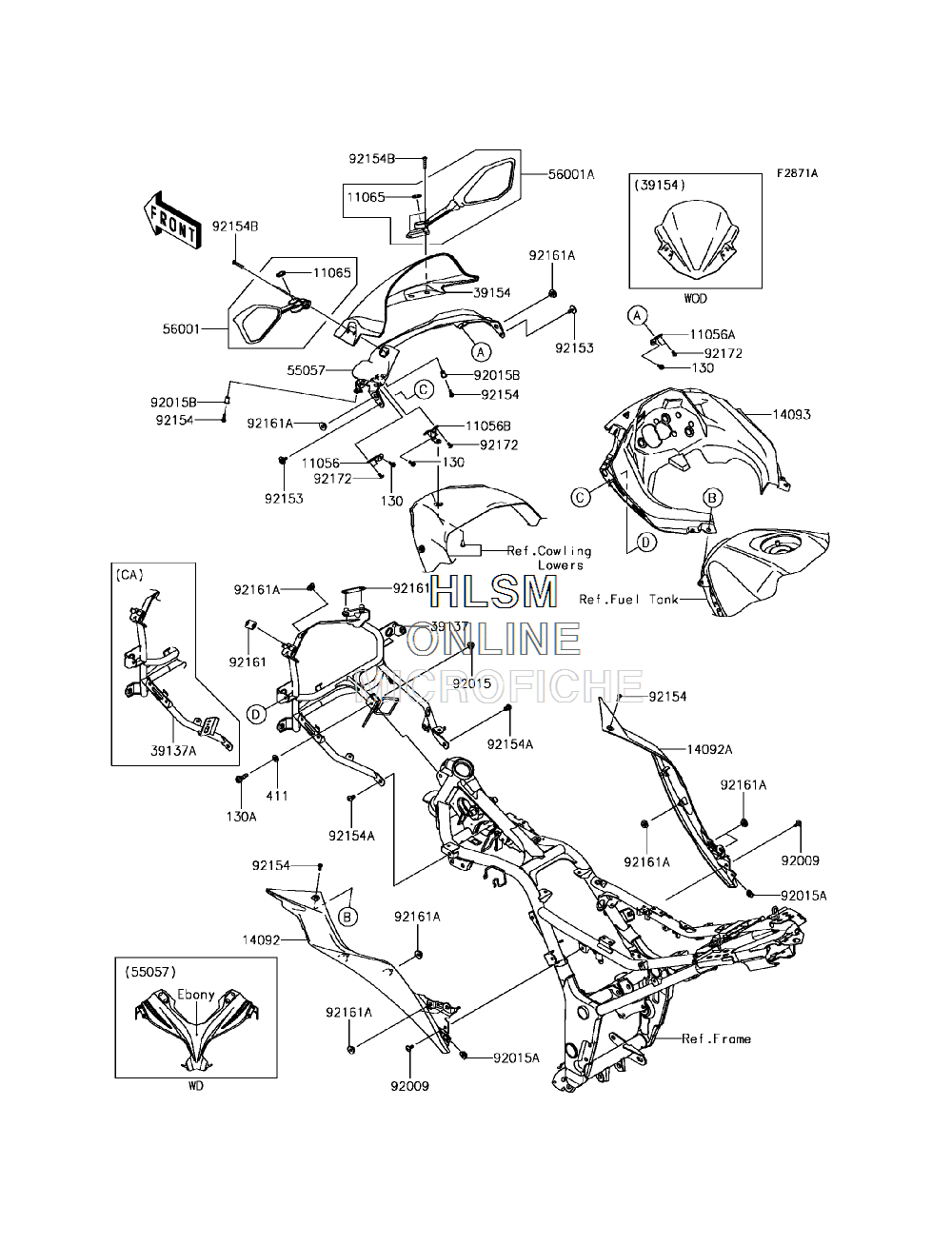

COWLING для Kawasaki NINJA 300 ABS WINTER TEST EDITION (EX300BHFB) - 2017 года выпуска`
-
№АртикулНазвание
-
130130BA0512 BOLT-FLANGED, 5X12BOLT-FLANGED, 5X12
-
130A130BB0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
411411AB0800 WASHER-PLAIN, 8.5X18X1.6WASHER-PLAIN, 8.5X18X1.6
-
1105611056-1608 BRACKET, COWL. STAY, LEFT HANDBRACKET, COWL. STAY, LEFT HAND
-
11056A11056-1610 BRACKET, COWL. STAY, RIGHT HANDBRACKET, COWL. STAY, RIGHT HAND
-
11056B11056-1611 BRACKET, COWL. STAYBRACKET, COWL. STAY
-
1106511065-0945 CAP, MIRRORCAP, MIRROR
-
1409214092-0922 COVER, TANK, LEFT HANDCOVER, TANK, LEFT HAND
-
14092A14092-0923 COVER, TANK, RIGHT HANDCOVER, TANK, RIGHT HAND
-
1409314093-0249 COVER, METERCOVER, METER
-
3913739137-0565-18R STAY-COMP, COWLING, (F.S.BLACK) (EXCEPT CALIF.)STAY-COMP, COWLING, (F.S.BLACK) (EXCEPT CALIF.)
-
39137A39137-0566-18R STAY-COMP, COWLING, (F.S.BLACK) (CALIF. ONLY)STAY-COMP, COWLING, (F.S.BLACK) (CALIF. ONLY)
-
3915439154-0321 WINDSHIELDWINDSHIELD
-
5505755057-5286-45L COWLING, UPPER, (F.EBONY)COWLING, UPPER, (F.EBONY)
-
5600156001-0239 MIRROR-ASSY, LEFT HANDMIRROR-ASSY, LEFT HAND
-
56001A56001-0240 MIRROR-ASSY, RIGHT HANDMIRROR-ASSY, RIGHT HAND
-
9200992009-1662 SCREW, 6X14SCREW, 6X14
-
9201592015-1174 NUT, CAP, 8MM, (BLACK)NUT, CAP, 8MM, (BLACK)
-
92015A92015-1627 NUT, 5MMNUT, 5MM
-
92015B92015-1757 NUT, WELL, 5MMNUT, WELL, 5MM
-
9215392153-1423 BOLT, 6X16BOLT, 6X16
-
9215492154-0182 BOLT, SOCKET, 5X16BOLT, SOCKET, 5X16
-
92154A92154-1032 BOLT, SOCKET, 8X14BOLT, SOCKET, 8X14
-
92154B92154-1142 BOLT, SOCKET, 6X25BOLT, SOCKET, 6X25
-
9216192161-1467 DAMPERDAMPER
-
92161A92161-1531 DAMPERDAMPER
-
9217292172-0262 SCREW, TAPPING, 5X10SCREW, TAPPING, 5X10
