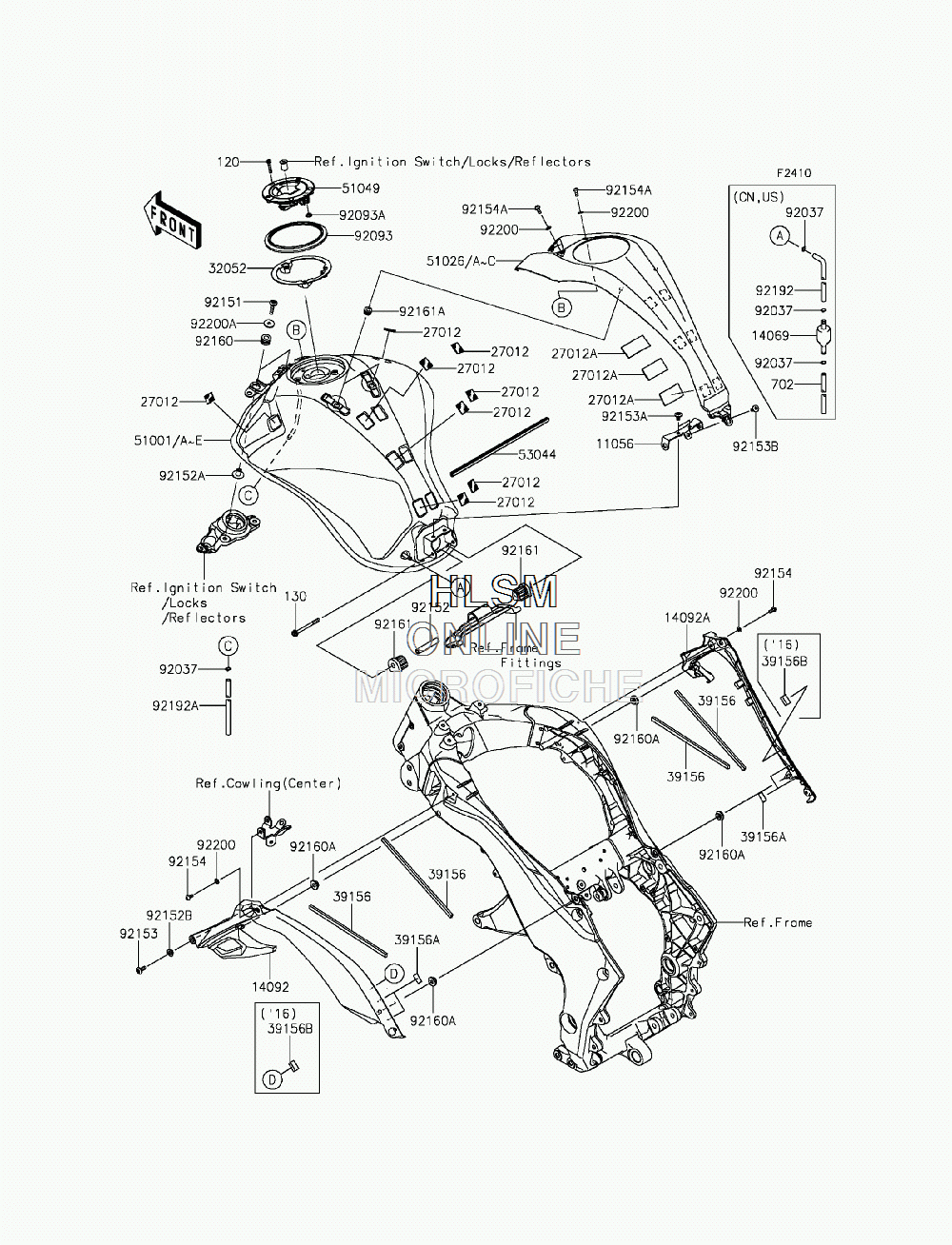

FUEL TANK для Kawasaki Z1000 ABS (ZR1000GGF) - 2016 года выпуска

  • №
    Артикул
    Название
  • 11056
    11056-3839 BRACKET
    BRACKET
  • 14069
    14069-0008 BREATHER, TANK (EXCEPT CALIF.)
    BREATHER, TANK (EXCEPT CALIF.)
  • 14092
    14092-1128 COVER, KNEE GRIP, LEFT HAND
    COVER, KNEE GRIP, LEFT HAND
  • 14092A
    14092-1129 COVER, KNEE GRIP, RIGHT HAND
    COVER, KNEE GRIP, RIGHT HAND
  • 27012
    27012-0171 HOOK
    HOOK
  • 27012A
    27012-0764 HOOK, FASTENER, 28X57
    HOOK, FASTENER, 28X57
  • 32052
    32052-0744 BRACKET-TANK
    BRACKET-TANK
  • 39156
    39156-0563 PAD
    PAD
  • 39156A
    39156-1784 PAD, 15X20X0.2
    PAD, 15X20X0.2
  • 39156B
    39156-1968 PAD, 20X8X10
    PAD, 20X8X10
  • 51001C
    51001-0791-51B TANK-COMP-FUEL, M.M.C.GRAY (CANADA ONLY) (FOR 53R)
    TANK-COMP-FUEL, M.M.C.GRAY (CANADA ONLY) (FOR 53R)
  • 51001D
    51001-0791-53U TANK-COMP-FUEL, M.M.G.GRAY (FOR 40R)
    TANK-COMP-FUEL, M.M.G.GRAY (FOR 40R)
  • 51026
    51026-0010-40R COVER TANK, G.B.GREEN (FOR 40R)
    COVER TANK, G.B.GREEN (FOR 40R)
  • 51026B
    51026-0010-53R COVER TANK, C.C.RED (CANADA ONLY) (FOR 53R)
    COVER TANK, C.C.RED (CANADA ONLY) (FOR 53R)
  • 51049
    51049-0039 CAP-TANK, FUEL
    CAP-TANK, FUEL
  • 53044
    53044-1296 TRIM
    TRIM
  • 92037
    92037-010 CLAMP, TUBE (CALIF. ONLY)
    CLAMP, TUBE (CALIF. ONLY)
  • 92037
    92037-010 CLAMP, TUBE (EXCEPT CALIF.)
    CLAMP, TUBE (EXCEPT CALIF.)
  • 92093
    92093-0604 SEAL, TANK CAP
    SEAL, TANK CAP
  • 92093A
    92093-1030 SEAL, FUEL TANK CAP
    SEAL, FUEL TANK CAP
  • 92151
    92151-1605 BOLT, SOCKET, 6X30
    BOLT, SOCKET, 6X30
  • 92152
    92152-1182 COLLAR, 6.8X10X60
    COLLAR, 6.8X10X60
  • 92152A
    92152-1603 COLLAR
    COLLAR
  • 92152B
    92152-1863 COLLAR, 6.5X10X5.3
    COLLAR, 6.5X10X5.3
  • 92153
    92153-1526 BOLT, SOCKET, 6X16
    BOLT, SOCKET, 6X16
  • 92153A
    92153-1948 BOLT, SOCKET, 6X12
    BOLT, SOCKET, 6X12
  • 92153B
    92153-1956 BOLT, SOCKET, 6MM
    BOLT, SOCKET, 6MM
  • 120
    120CC0525 BOLT-SOCKET, 5X25
    BOLT-SOCKET, 5X25
  • 130
    130BB0670 BOLT-FLANGED, 6X70
    BOLT-FLANGED, 6X70
  • 702
    702A06300 TUBE-RUBBER, 6X9X300
    TUBE-RUBBER, 6X9X300
  • 92154
    92154-0917 BOLT, SOCKET, 5X12
    BOLT, SOCKET, 5X12
  • 92154A
    92154-1421 BOLT, SOCKET, 5X12
    BOLT, SOCKET, 5X12
  • 92160
    92160-1167 DAMPER, 10X20X12
    DAMPER, 10X20X12
  • 92160A
    92160-1613 DAMPER
    DAMPER
  • 92161
    92161-1330 DAMPER, FUEL TANK, REAR
    DAMPER, FUEL TANK, REAR
  • 92161A
    92161-1584 DAMPER, 8.2X16X8.3
    DAMPER, 8.2X16X8.3
  • 92192
    92192-0798 TUBE, BREATHER (EXCEPT CALIF.)
    TUBE, BREATHER (EXCEPT CALIF.)
  • 92192A
    92192-1024 TUBE, 6X9X926(30)
    TUBE, 6X9X926(30)
  • 92200
    92200-0006 WASHER, NYLONE, 5.3X11.5X0.5
    WASHER, NYLONE, 5.3X11.5X0.5
  • 92200A
    92200-1087 WASHER, 6.5X22X1.6
    WASHER, 6.5X22X1.6
