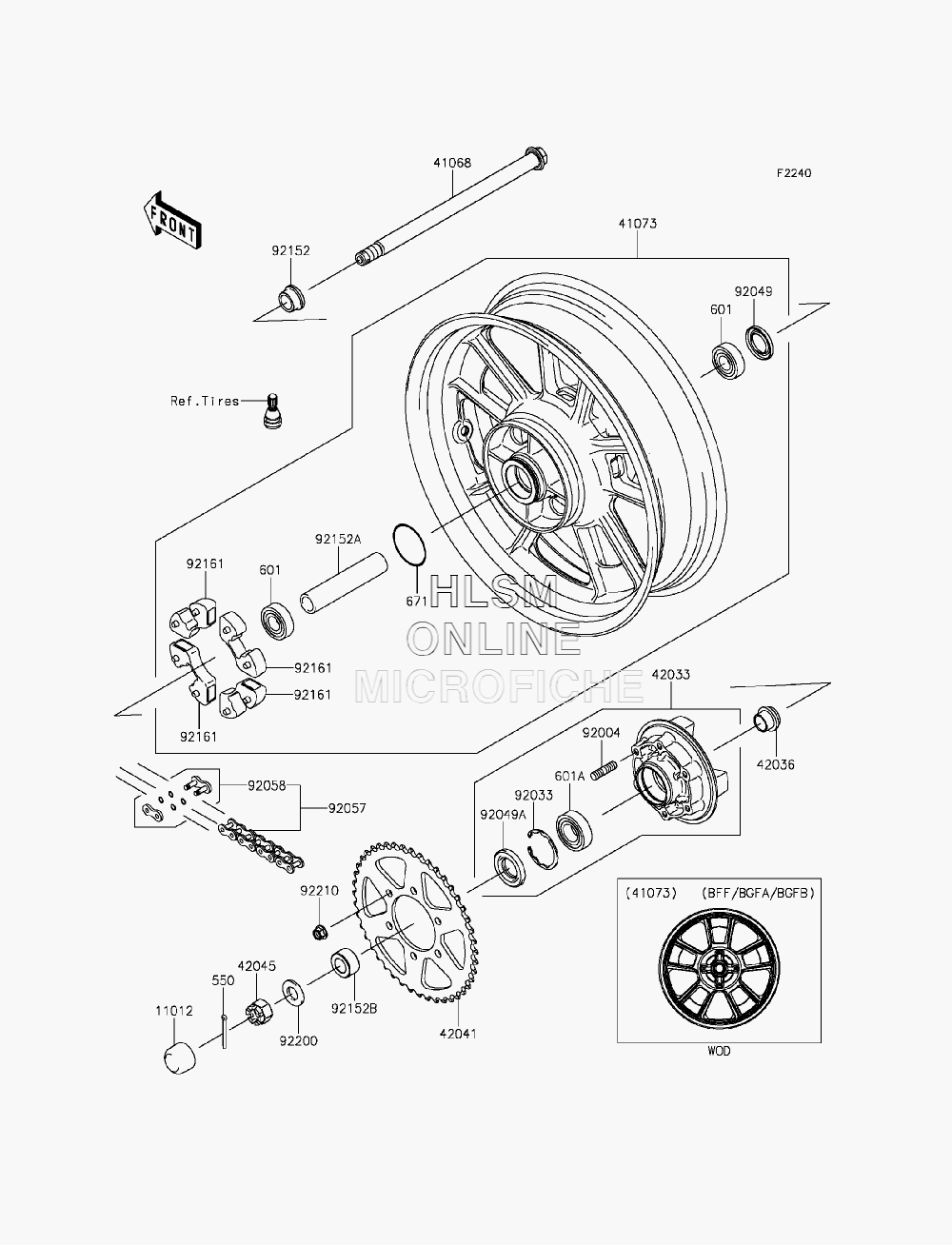

WHEEL - REAR W/ CHAIN для Kawasaki VULCAN S CAFЙ (EN650BGFB) - 2016 года выпуска`
-
№АртикулНазвание
-
550550AA4040 PIN-COTTER, 4.0X40PIN-COTTER, 4.0X40
-
601601B6204UU BEARING-BALL, 6204UUC3BEARING-BALL, 6204UUC3
-
601A601B6205UU BEARING-BALLBEARING-BALL
-
671671B2560 O RING, 60MMO RING, 60MM
-
1101211012-1590 CAP, AXLE NUTCAP, AXLE NUT
-
4106841068-0592 AXLE, REAR, 18X321.8AXLE, REAR, 18X321.8
-
4107341073-0654-QT WHEEL-ASSY, REAR, (G.BLACK)WHEEL-ASSY, REAR, (G.BLACK)
-
4203342033-0570 COUPLING-ASSY, REAR HUBCOUPLING-ASSY, REAR HUB
-
4203642036-1251 SLEEVE, REAR HUB, L=23SLEEVE, REAR HUB, L=23
-
4204142041-0087 SPROCKET-HUB, 46TSPROCKET-HUB, 46T
-
4204542045-018 NUT, CASTLE, 18MMNUT, CASTLE, 18MM
-
9200492004-0048 STUD, 10X19STUD, 10X19
-
9203392033-1043 RING-SNAP, 52MMRING-SNAP, 52MM
-
9204992049-0140 SEAL-OIL, 28 47 5SEAL-OIL, 28 47 5
-
92049A92049-1287 SEAL-OILSEAL-OIL
-
9205792057-0675 CHAIN, DRIVE, EK520MVXL3X120LCHAIN, DRIVE, EK520MVXL3X120L
-
9205892058-0021 JOINT-CHAIN, DRIVEJOINT-CHAIN, DRIVE
-
9215292152-0302 COLLAR, REAR AXLE, RIGHT HAND, L=17COLLAR, REAR AXLE, RIGHT HAND, L=17
-
92152A92152-0748 COLLAR, 20.2X28X133COLLAR, 20.2X28X133
-
92152B92152-0751 COLLAR, 20X35X18COLLAR, 20X35X18
-
9216192161-0342 DAMPER, SHOCK, REAR HUBDAMPER, SHOCK, REAR HUB
-
9220092200-0296 WASHER, 19X36X3.2WASHER, 19X36X3.2
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
